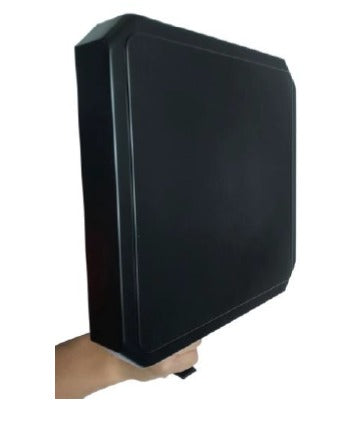

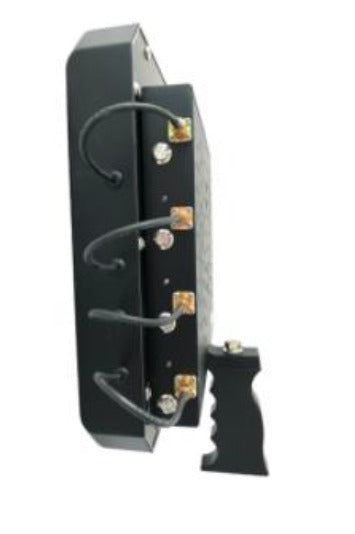

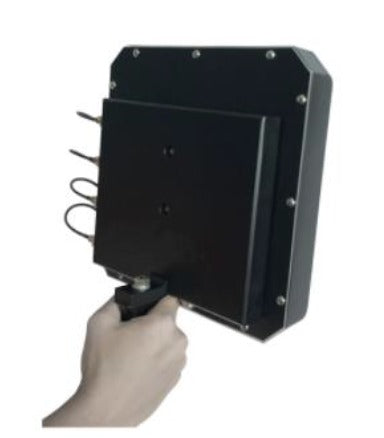

ANTI DRONE DIRECTIONAL ANTENNA
ANTI DRONE DIRECTIONAL ANTENNA
No. |
Function |
Remarks |
|
1 |
Adjustable Switch |
Adjust output power from Min to Max for each band |
|
2 |
Output Power Port |
External Antenna SMA type, please connect antennas on the corresponding |
|
3 |
Channel Power LED Light |
The LED light is green when turn ON each band |
|
4 |
Charger In Port |
DC24V 2-5A charger input |
|
5 |
Power LED Light |
The LED light is green when turn ON |
|
6 |
Power Switcher |
Turn on or Turn off devices |
|
7 |
Jammer Module |
4 in one jammer module |
|
8 |
Directional Antennas |
4 in one directional Antennas |
|
9 |
Cable |
Connect with module and Antenna |
|
10 |
Hand Grip |
Handheld easily |
|
11 |
Beam formation(Degree) |
45 |
