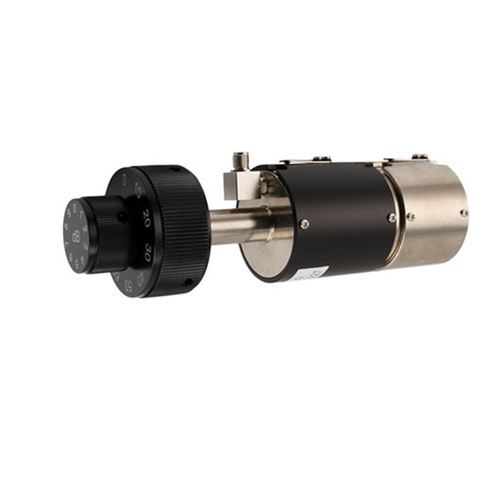

0-69dB Rotary Stepped Attenuator

Electrical & Mechanical Specifications

Freq (GHz)

DC-8

DC-12.4

DC-18

Insertion Loss(dB)

1

1.25 dB

1.5

VSWR

1.5

1.6

1.75:1

Attenuation Accuracy

0.5(0-9dB@DC-8GHz),0.8

0-9dB@0-18GHz),1(10-19dB )

1.5(20-49dB),2(50-69dB)

Avg Power

2,5 W

Impedance

50 Ohm

Attenuation Value

0-69 dB

Step Type

Rotary

Input Power

2 Watt

Input Power Peak

200 Watt

Size

Φ48*163 mm
Φ 1.89*6.417 mm

Operating Range

0 to 55℃

Material & Plating

Type

SMA Femalez

SMA Female

Contact Material & Plating

Gold Plated Beryllium Copper

Body Material & Plating

Stainless Steel
