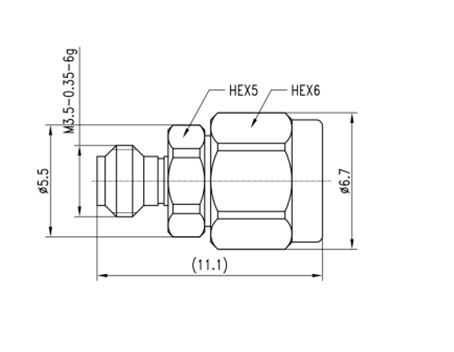

0.8mm Female to 1.0mm Male Adapter
0.8mm Female to 1.0mm Male Adapter
Couldn't load pickup availability
Electrical & Mechanical Specifications |
|
Impedance |
50 Ohm |
Frequency Range |
DC-110 GHz |
VSWR |
1.35 max |
Operating Temp |
-55℃ to +85℃ |
Connector Body |
Passivated stainless steel |
Center Contact |
Gold plated beryllium copper |
Insulator |
PEIs |
