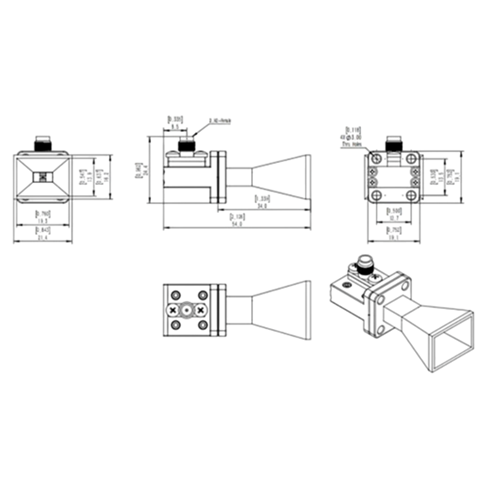

2.4mm Dual linear polarized horn Antenna

Mechanical Specifications

Connector type

2..4mm

Material

Al

Finishing

Paint

C Type Peak Power

40 W

Temperature Range

-40°C~+85°C

Electrical Specifications

Frequency Range

23-44 GHz

Waveguide

WR28

VSWR (Max)

< 2

Gain (Avg)

15-20 typ. dBi

Cross-Pol:

< -30 dB

Port-to-Port Isolation

> 40 dB

3dB Beamwidth E-Plane

32° Typical

3dB Beamwidth H-Plane

31° Typical

Polarization

Horizontal or Vertical

Integrated with Orthomode transducer (OMT)

Yes

Integrated with Waveguide coaxial adaptor

Yes
