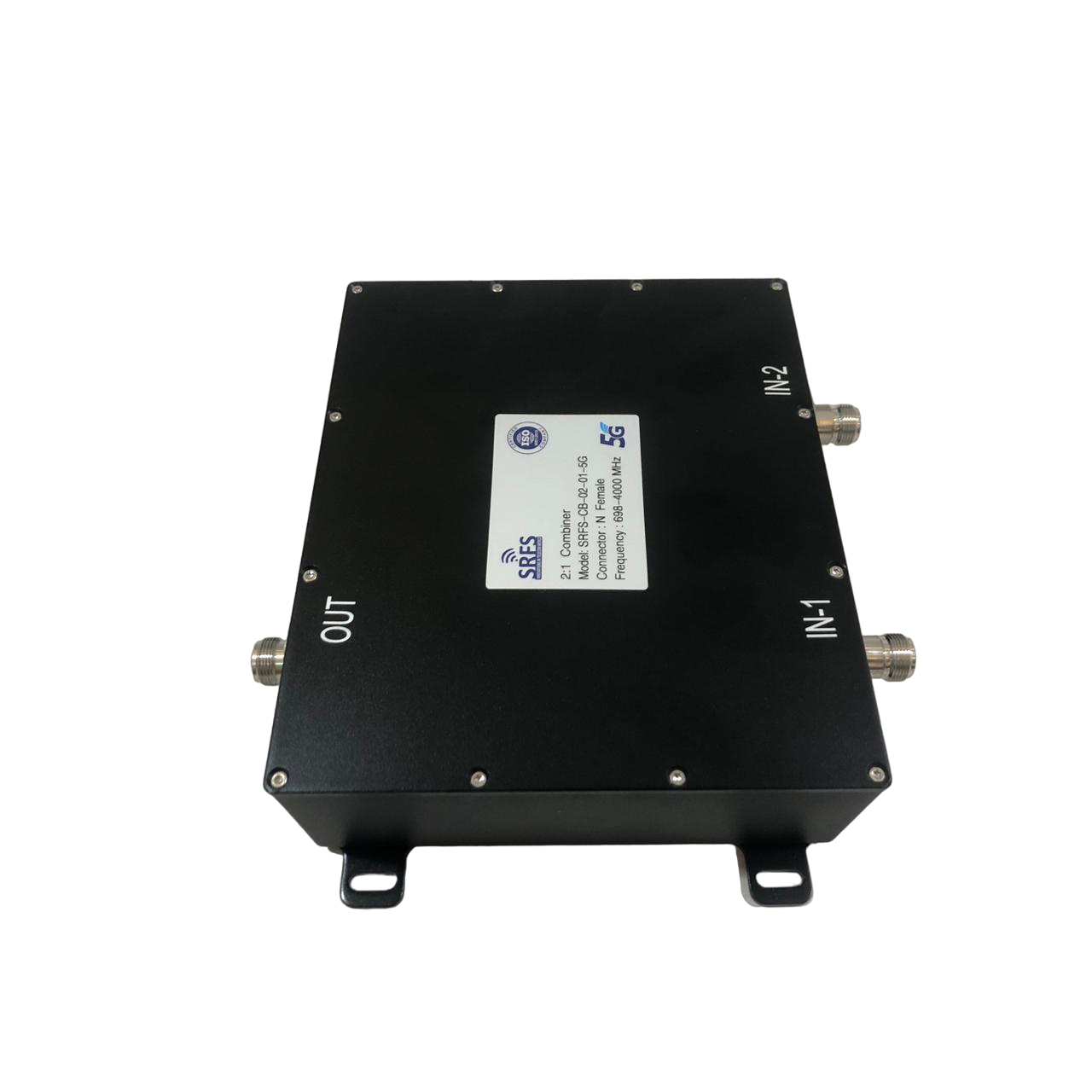

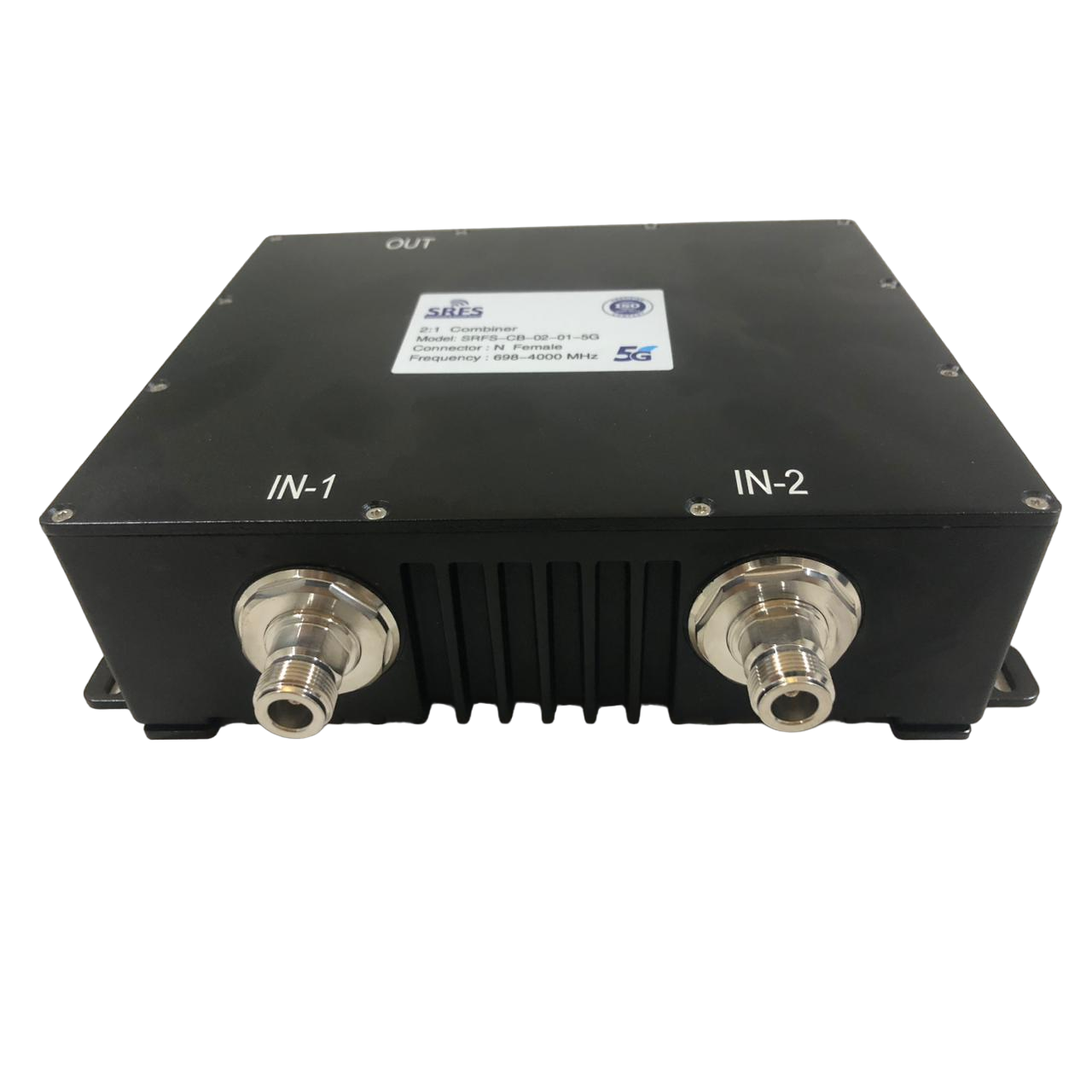

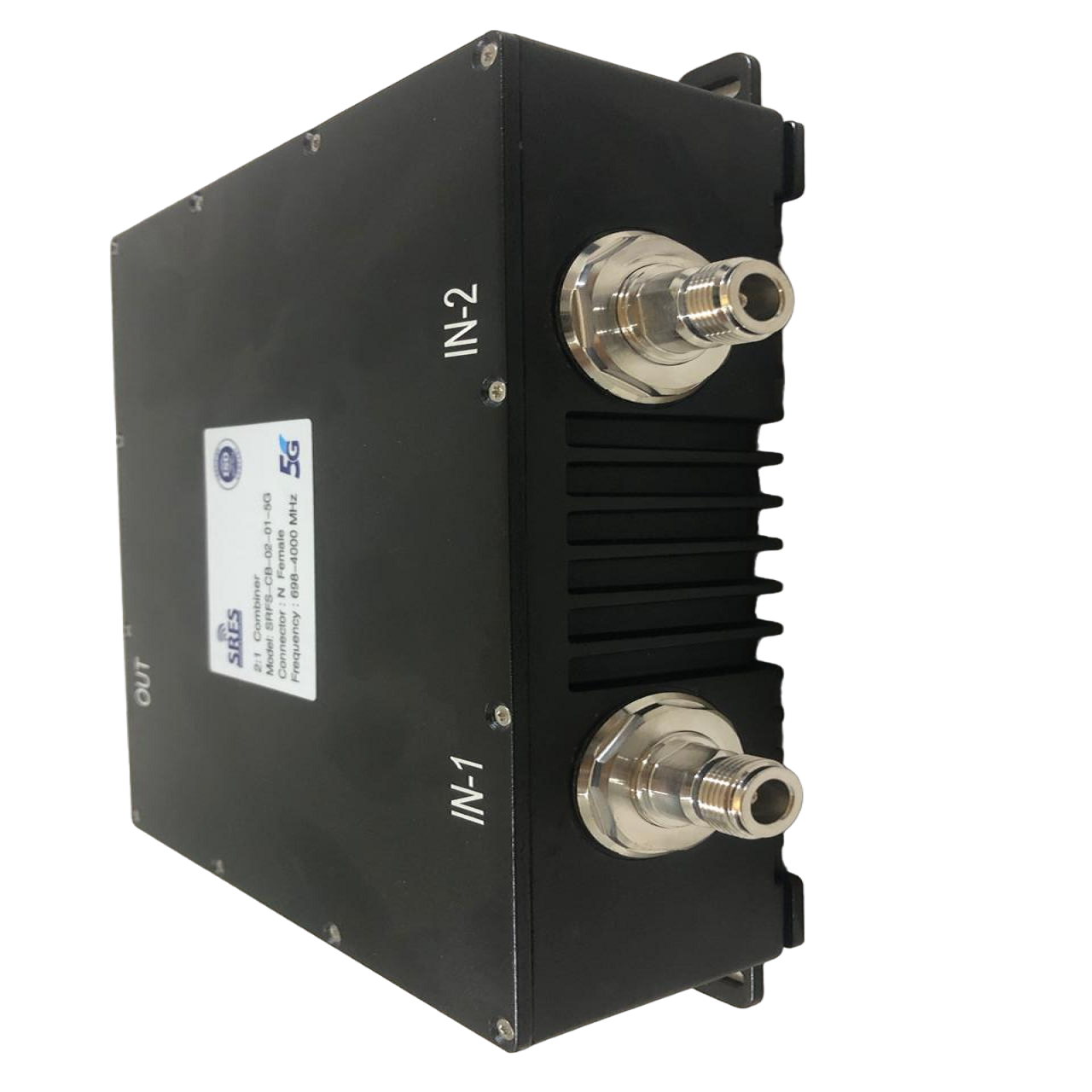

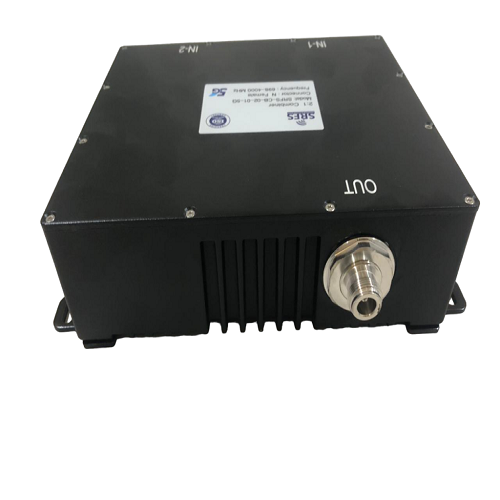

2 in 1 out Hybrid Combiner-698-4000MHz N-F
2 in 1 out Hybrid Combiner-698-4000MHz N-F
Electrical and Mechanical Specifications
Frequency range | 698MHz -4000MHz |
Insert loss | ≤3.8dB |
In-band ripple | ≤1.0dB |
VSWR | ≤1.30 |
Isolation | ≥20dB |
PIM3 | ≤-165dBc@2×43dBm |
Power | ≥300W |
Impedance | 50Ω |
Connector | N-F |
Degree of protection | IP65 |
Appearance | Black paint |
Relative humidity | ≤95% |
Operating Temperature(℃) | -35° C to +75° C |
