SRFS Teleinfra

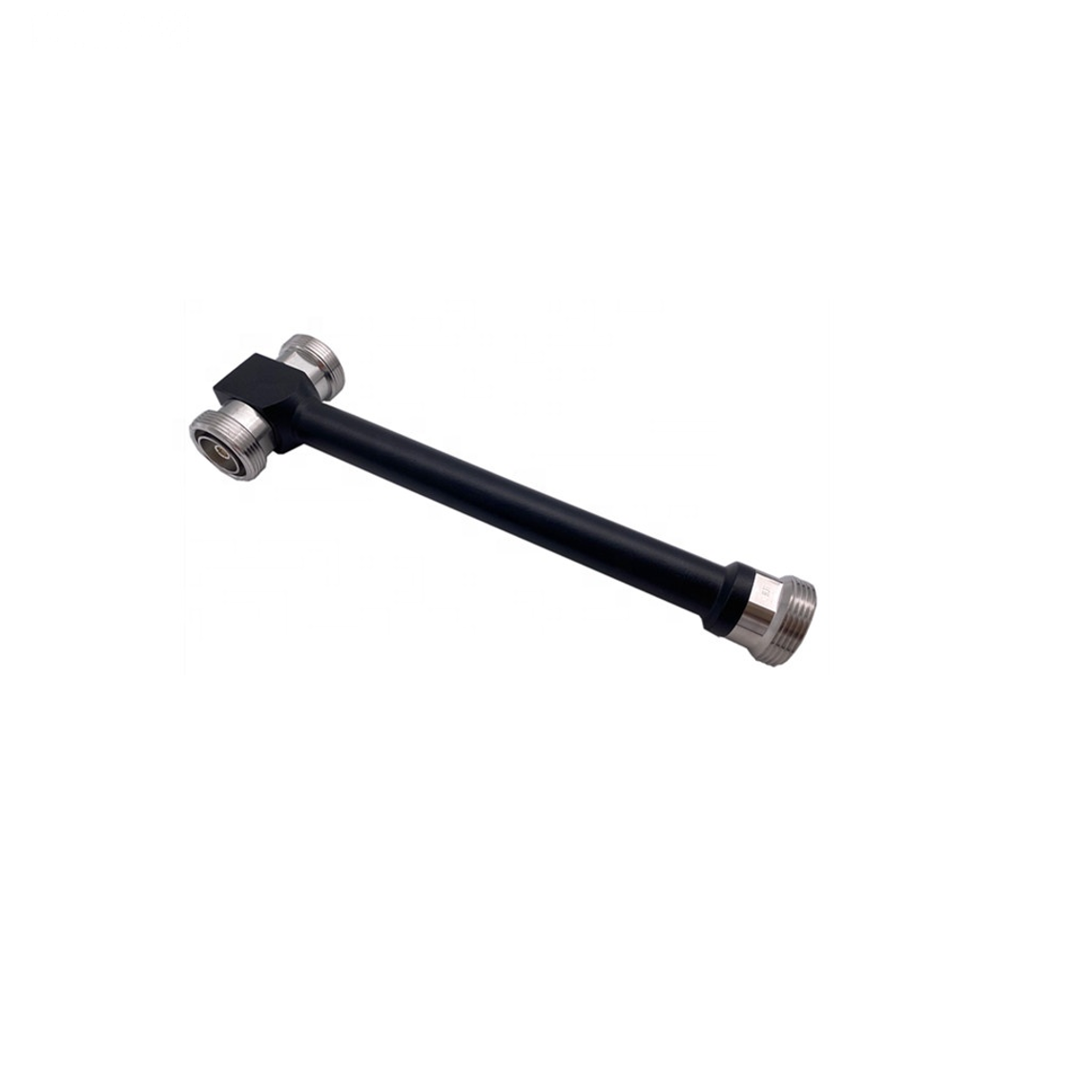

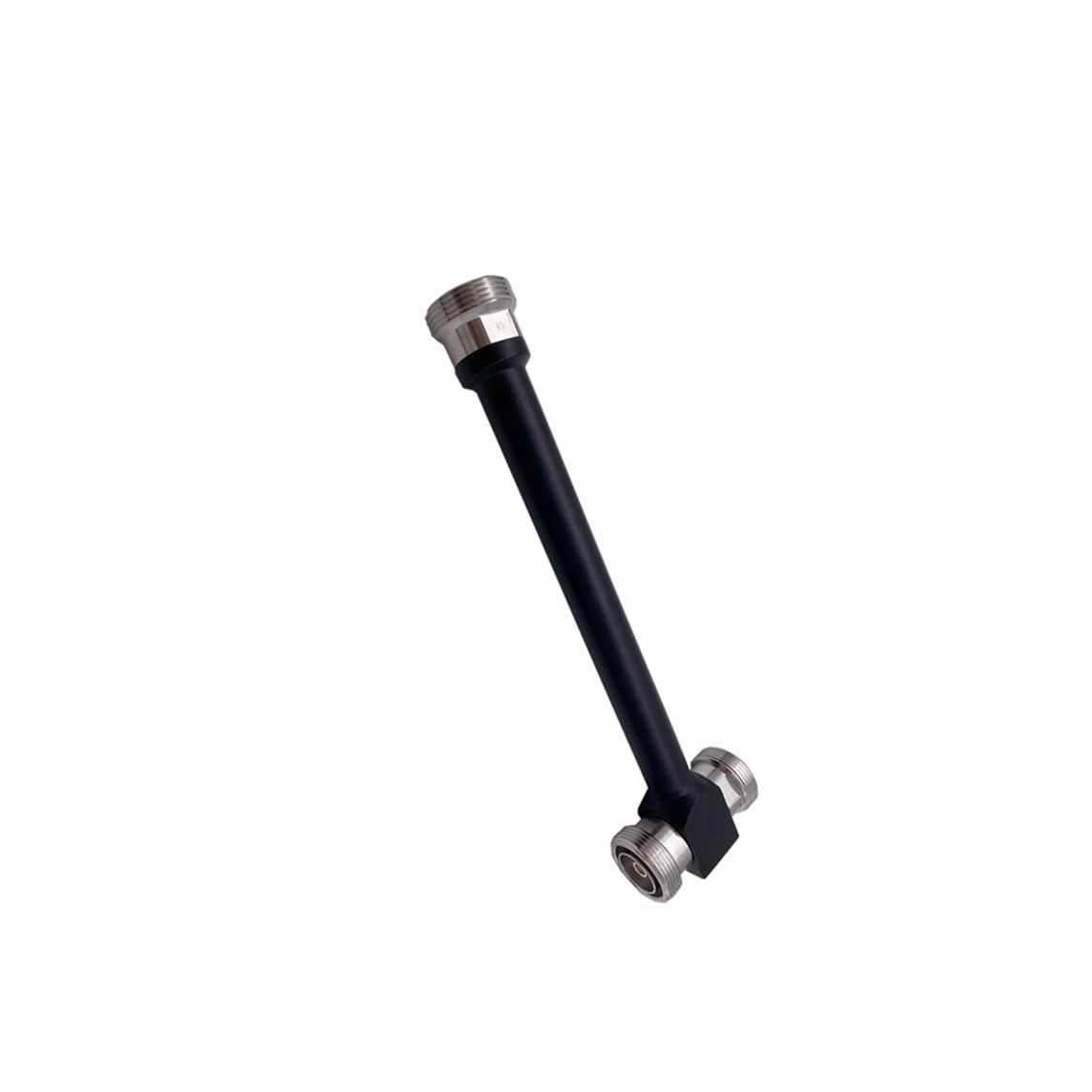

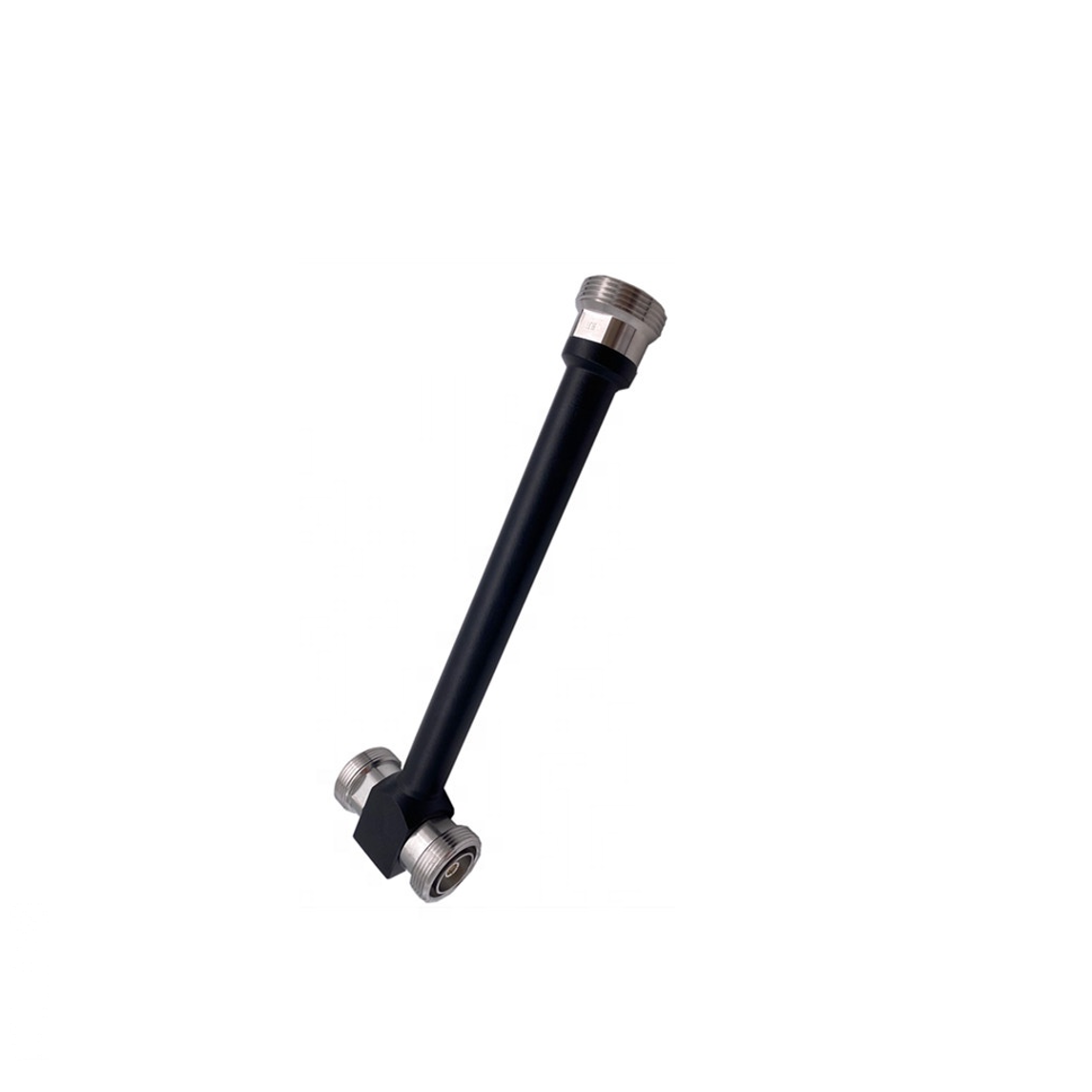

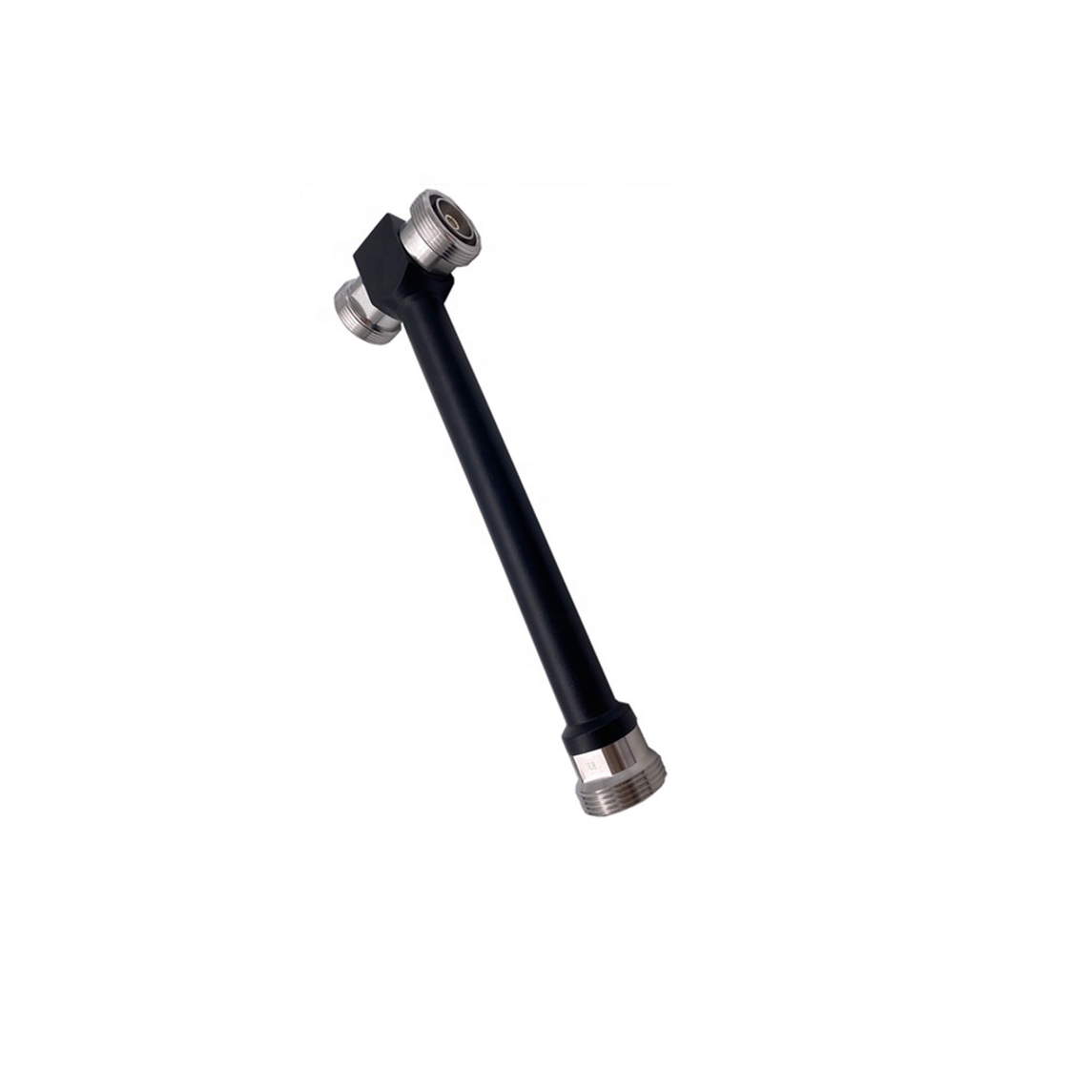

2- Way DIN-F 698-4000MHz Power Splitter
2- Way DIN-F 698-4000MHz Power Splitter
Couldn't load pickup availability
Product Description
• Wide Frequency Band 698-4000MHz
• 2G/3G/4G/LTE/5G Coverage
• Low Passive Inter-modulation
• Low VSWR & Insertion Loss
• Indoor & Outdoor Application IP65
Widely used for In-building Solutions.
Electrical & Mechanical Specifications
|
Freq (MHz) |
698-4000 |
|
Input Port Number |
1 |
|
Output Port Number |
2 |
|
Split Loss(dB) |
3.0 |
|
IL (dB) |
≤0.4 |
|
VSWR |
≤1.25 |
|
3rd PIM (dBc) |
≤-150dBc@2*43dBm |
|
Average Power(W) |
300 |
|
Impedance |
50 ohm |
|
Connector |
N-Female |
|
Color |
Weight Black or Customized |
|
Temp(deg) |
-35~+65 |
|
Application |
Indoor & Outdoor IP65 |
|
Relative Humidity |
5%-95% |
|
Dimensions(mm) |
225.5*52*25 (Connectors Included) |
