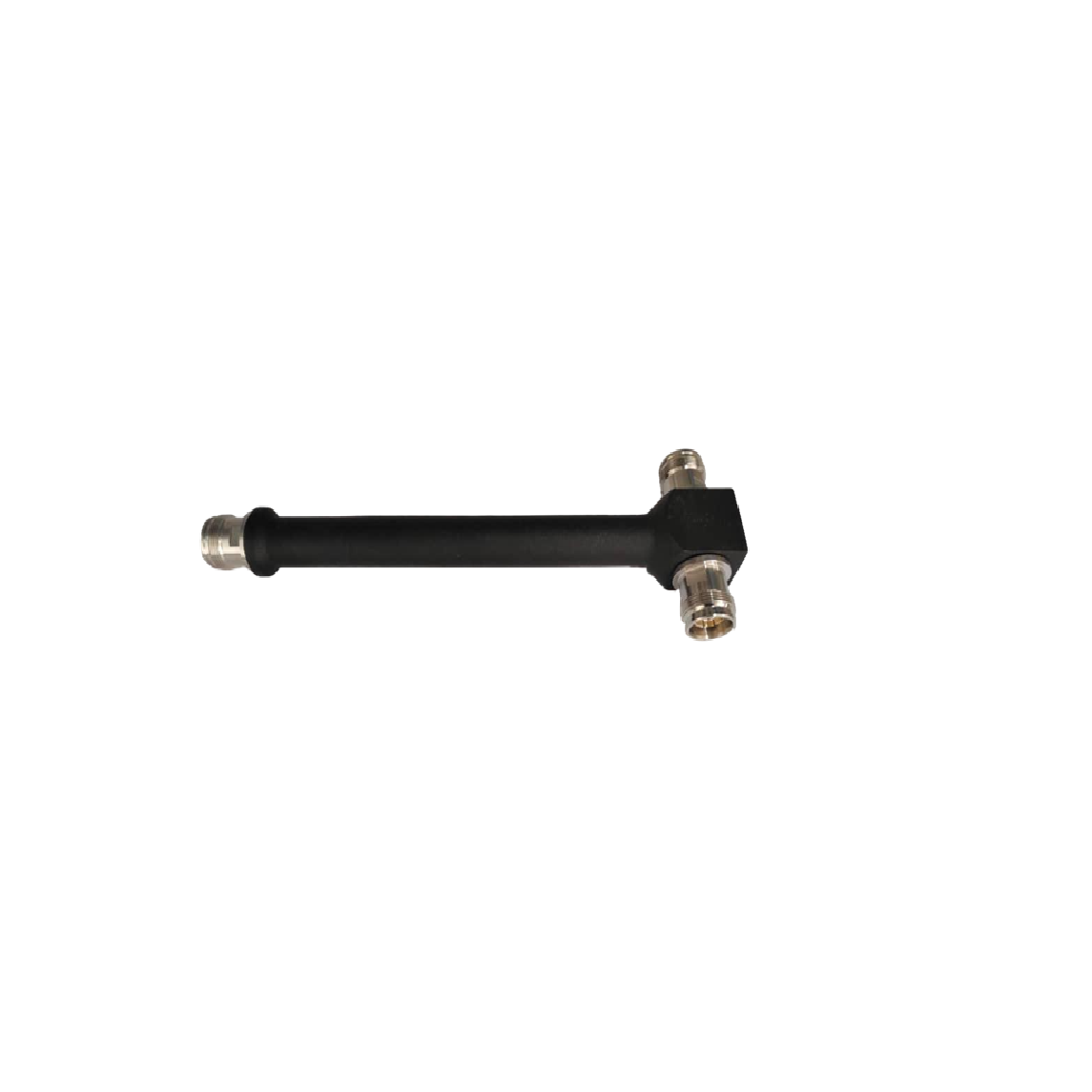

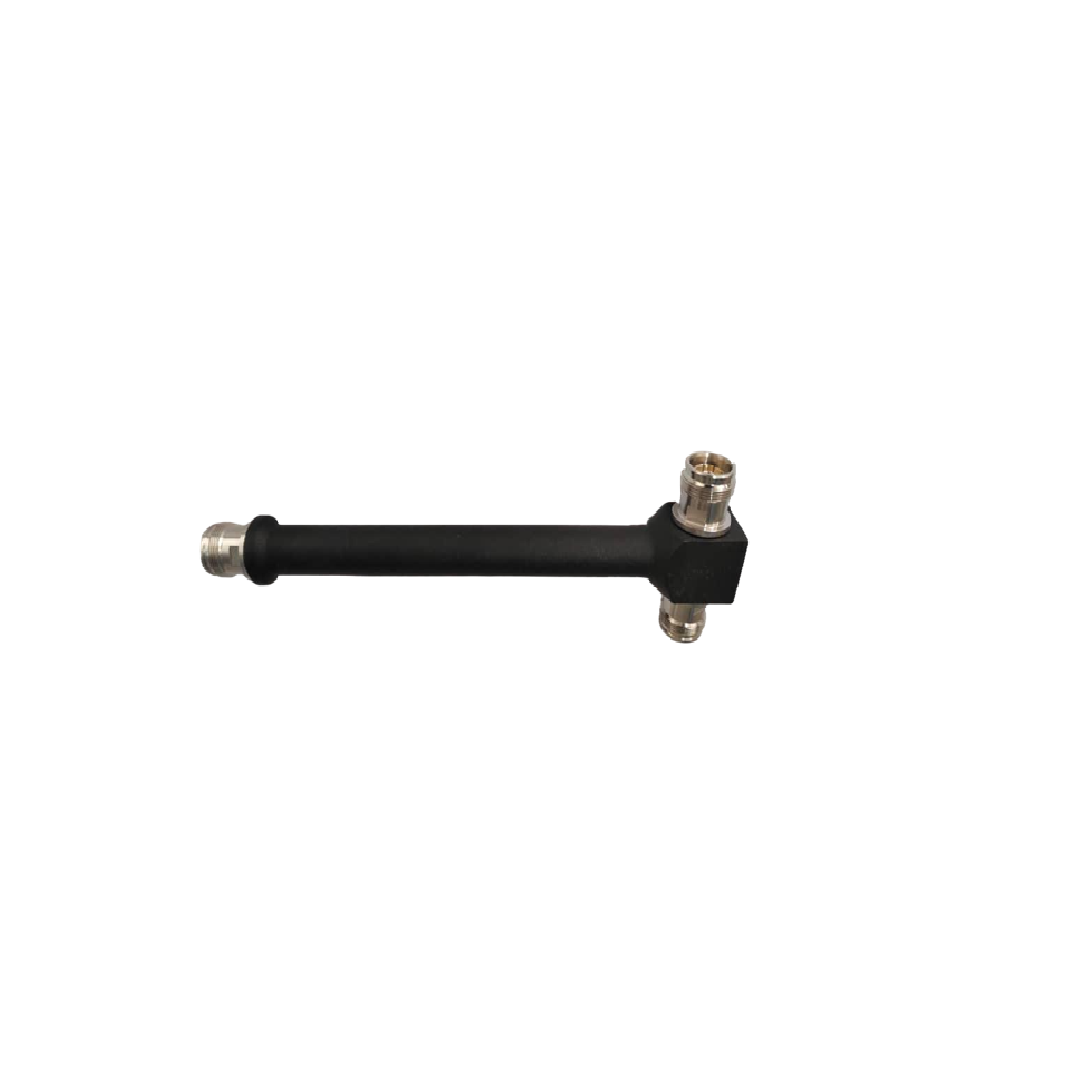

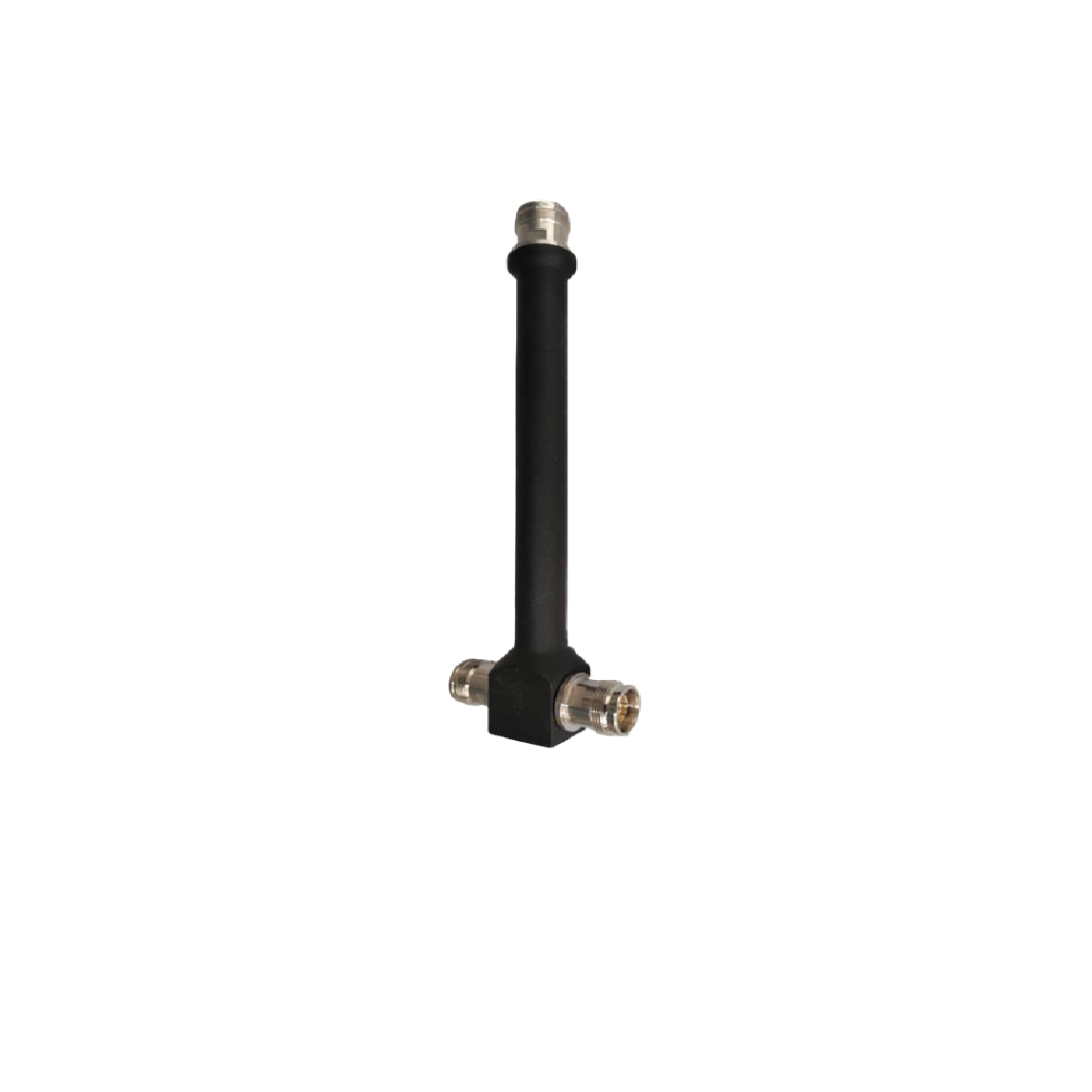

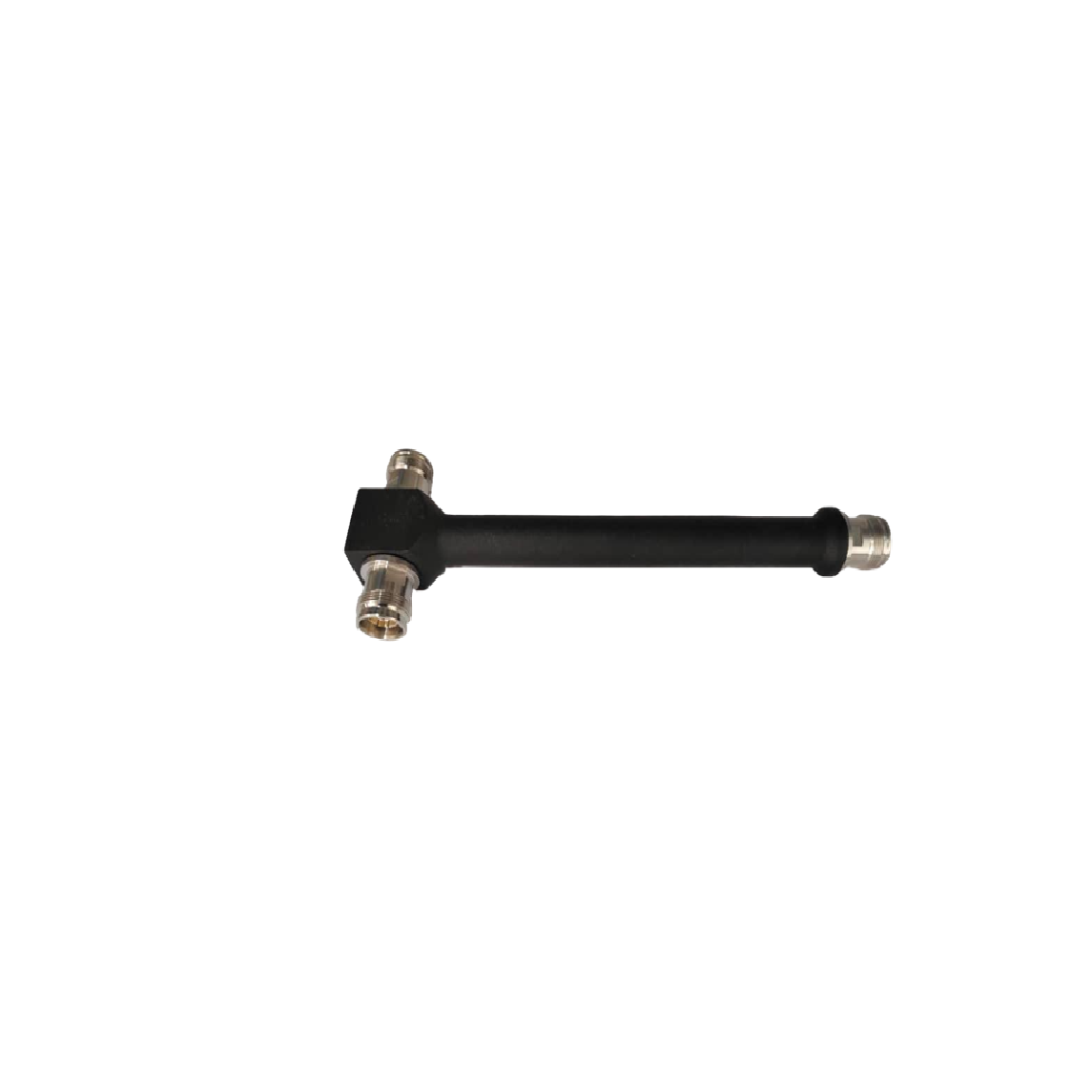

2-Way Power Splitter 698-4000MHz (4.3-10 Female)

Item Name

2 Way

Freq (MHz)

698-4000

Insertion Loss

< 3.3dB

VSWR

<1.2

In-band Ripple

≤0.3dB

Input Port Number

1

Output Port Number

2

3rd PIM (dBc)

≤-155dBc@2×43dBm

Average Power(W)

300W

Impedance

50 ohm

Connector Type

 4.3-10-Female

Size

199*25mm 5mm

Color

Weight Black

Temp(deg)

-45～+85℃

Weight

0.2kg

Degree of protection

IP65

Finish

Black Paint
