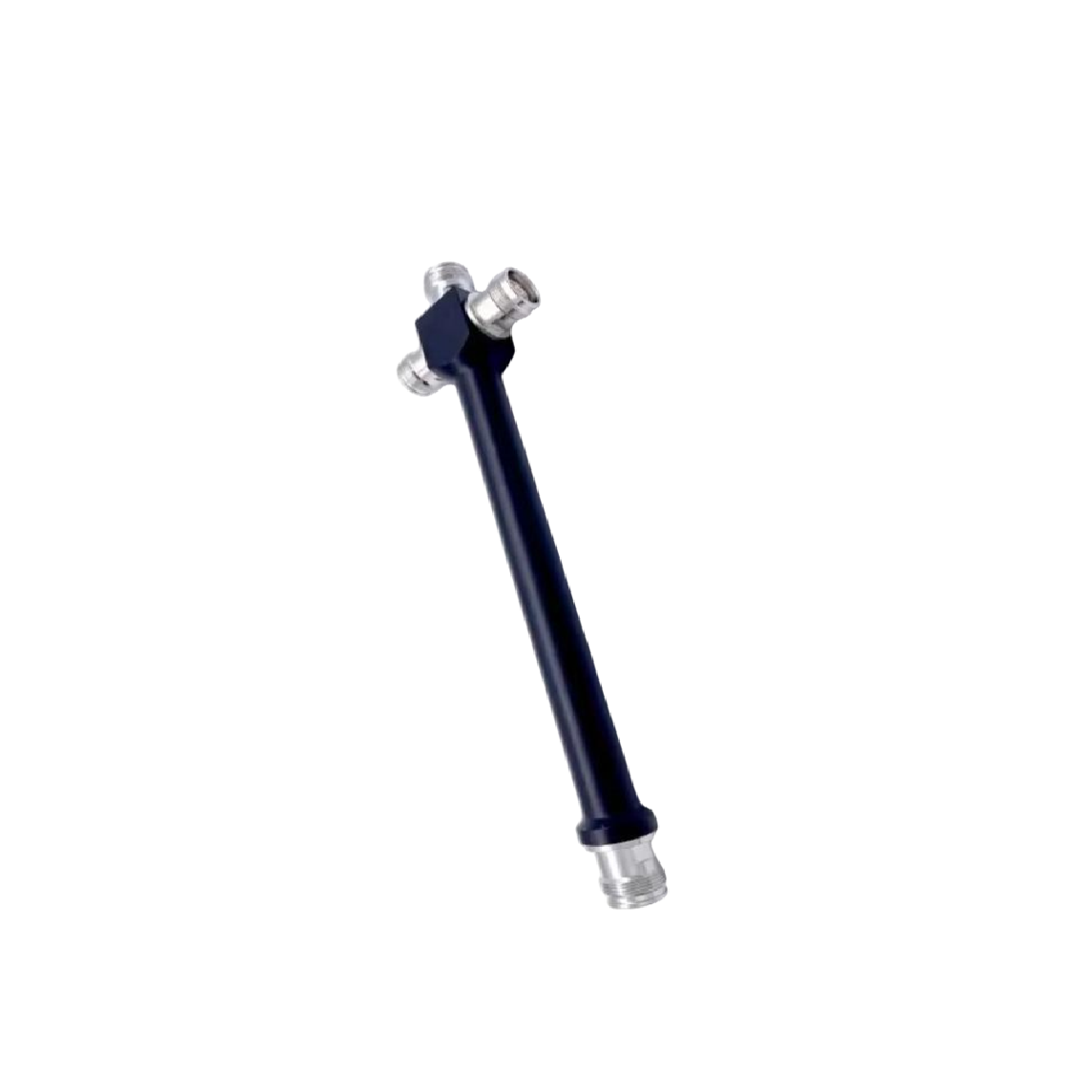

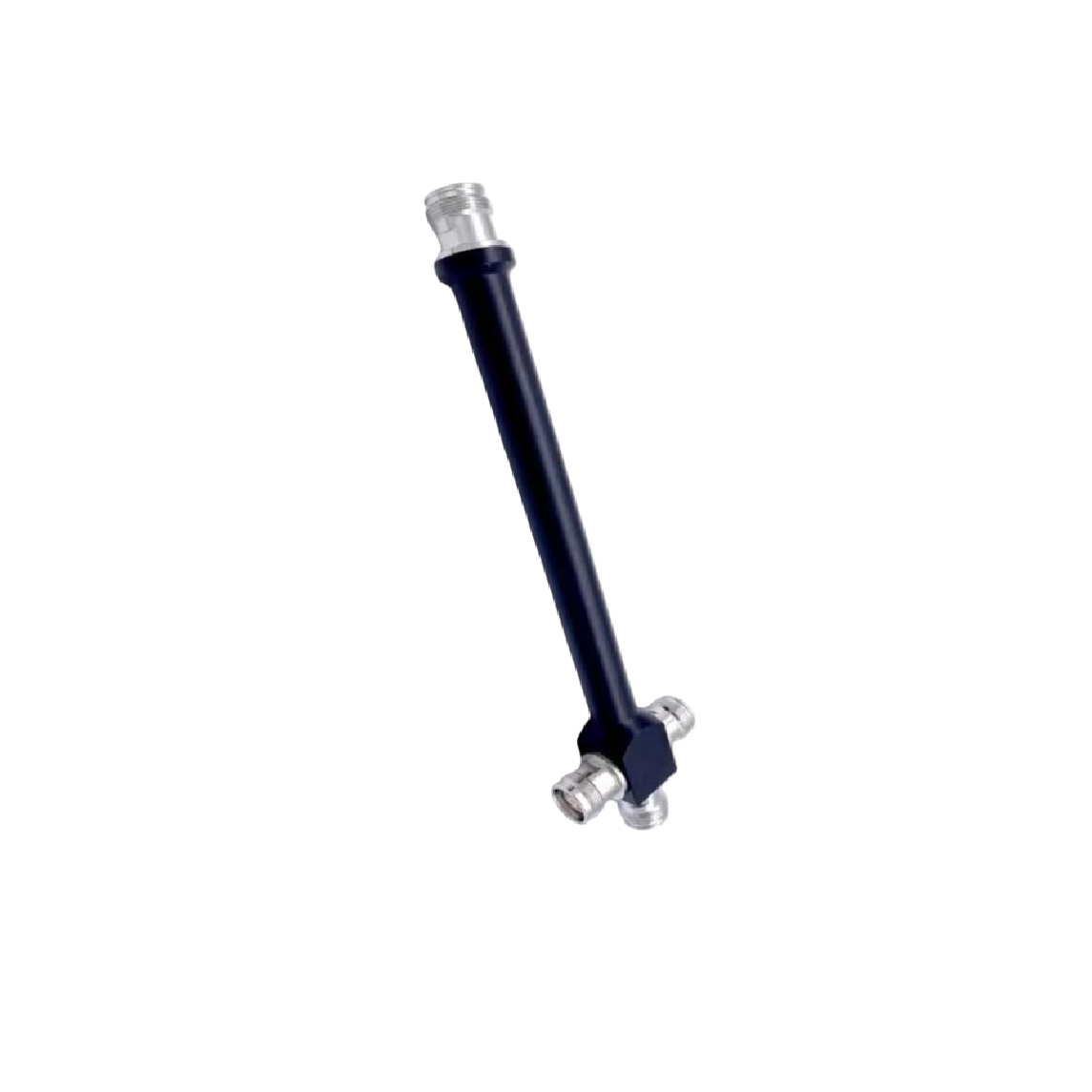

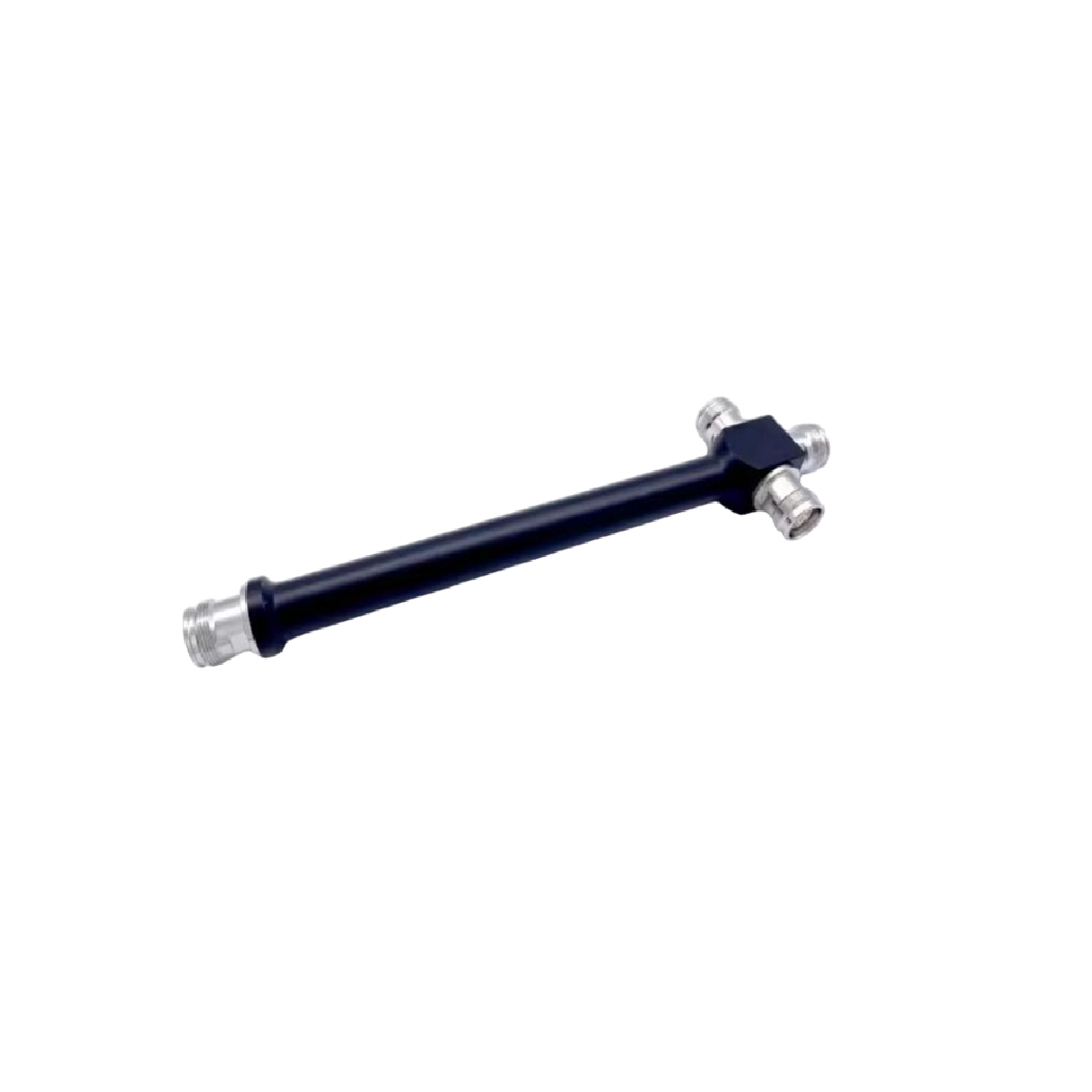

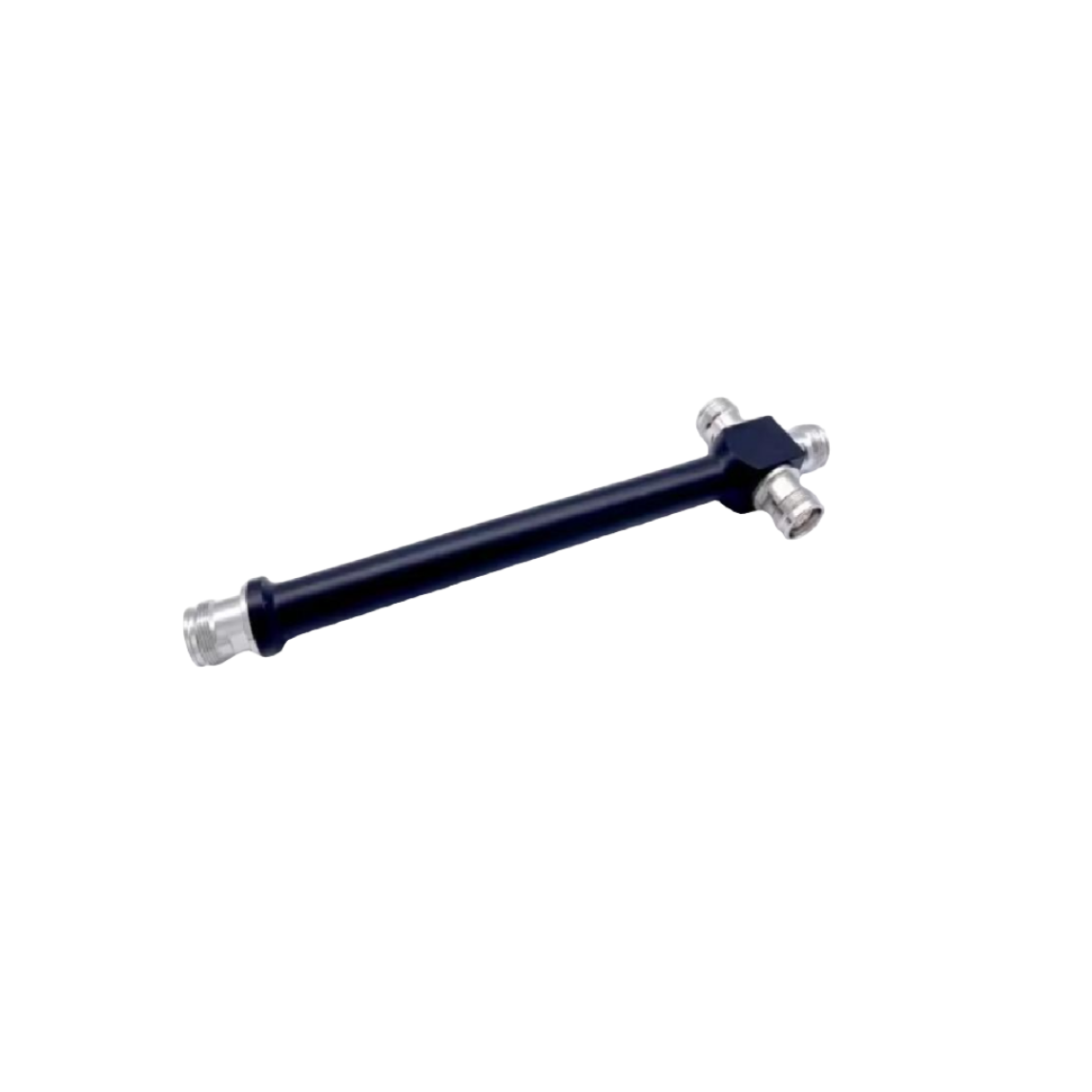

3-Way Power Splitter 698-4000MHz (4.3-10 Female)
3-Way Power Splitter 698-4000MHz (4.3-10 Female)
Electrical & Mechanical Specifications
Item Name |
3 Way |
Freq (MHz) |
698-4000 |
Insertion Loss |
<5.2dB |
VSWR |
<1.2 |
In-band Ripple |
≤0.43dB |
Input Port Number |
1 |
Output Port Number |
3 |
3rd PIM (dBc) |
≤-155dBc@2×43dBm |
Average Power(W) |
300W |
Impedance |
50 ohm |
Connector Type |
4.3-10-Female |
Size |
219*25mm5mm |
Color |
Black |
Temp(deg) |
-45~+85℃ |
Weight |
0.22kg |
Degree of protection |
IP65 |
Finish |
Black Paint |
