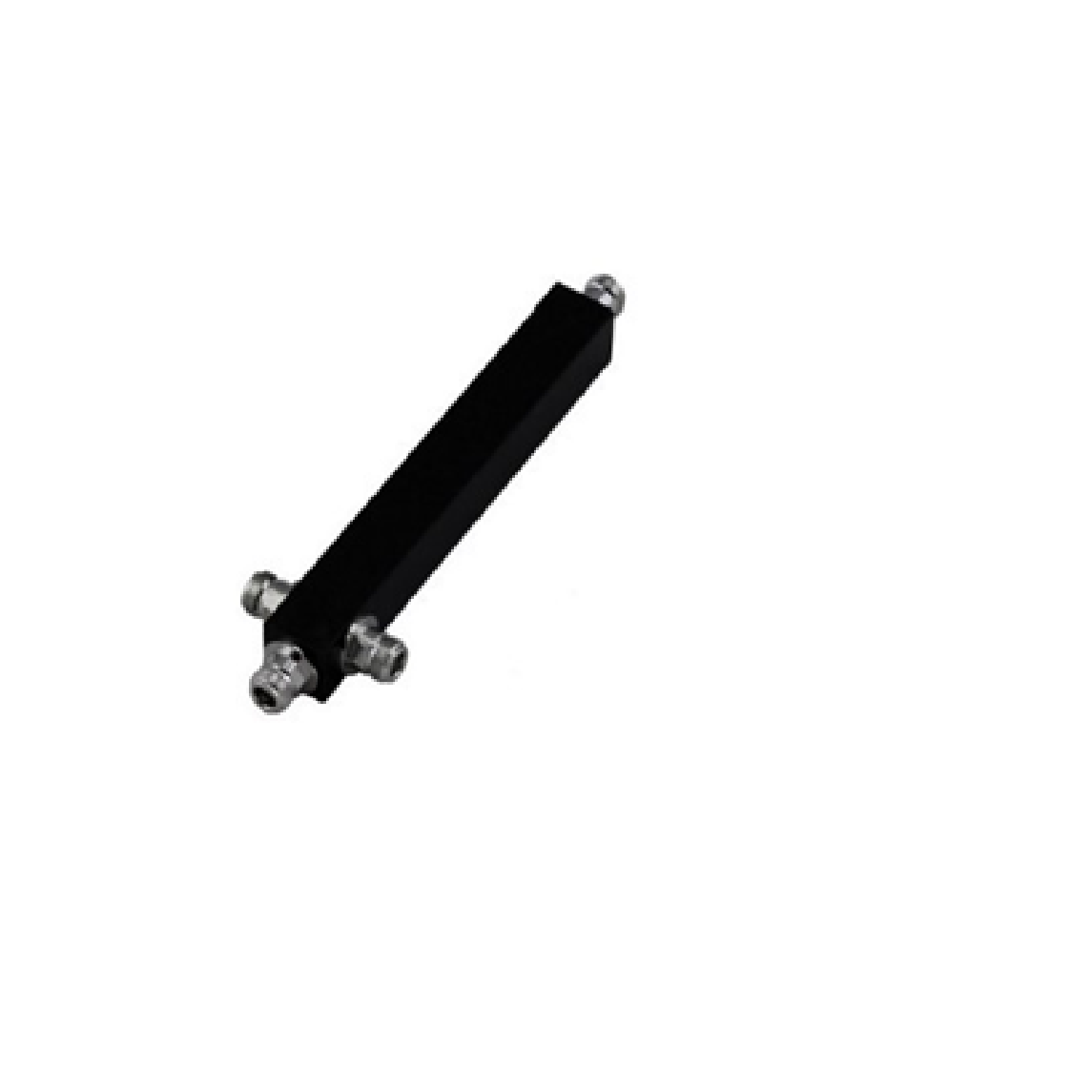

3-Way Power Splitter 698-4000MHz Square Type

Freq (MHz)

698-4000

Input Port Number

1

Output Port Number

3

Split Loss(dB)

4.8

IL (dB)

≤0.5

VSWR

≤1.25

3rd PIM (dBc)

≤-150dBc@2*43dBm

Average Power(W)

300

Impedance

50 ohm

Connector

N-Female

Color

Weight Black or Customized

Temp(deg)

-35~+65

Application

Indoor & Outdoor IP65

Relative Humidity

5%-95%

              Dimensions(mm)

         268.6*60.4*25 (Connectors Included)
