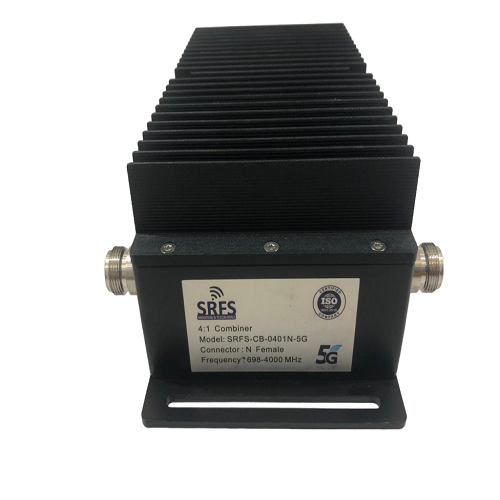

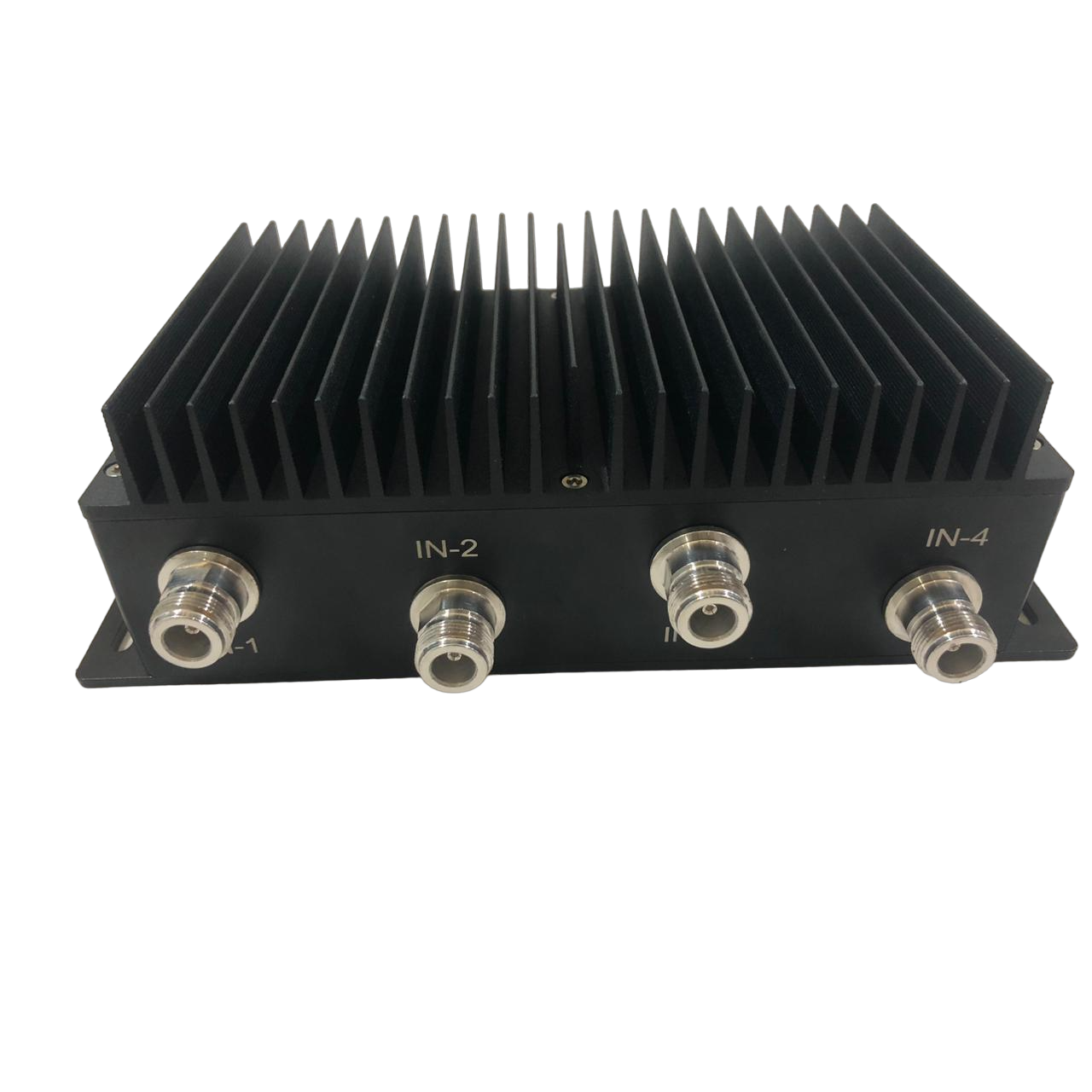

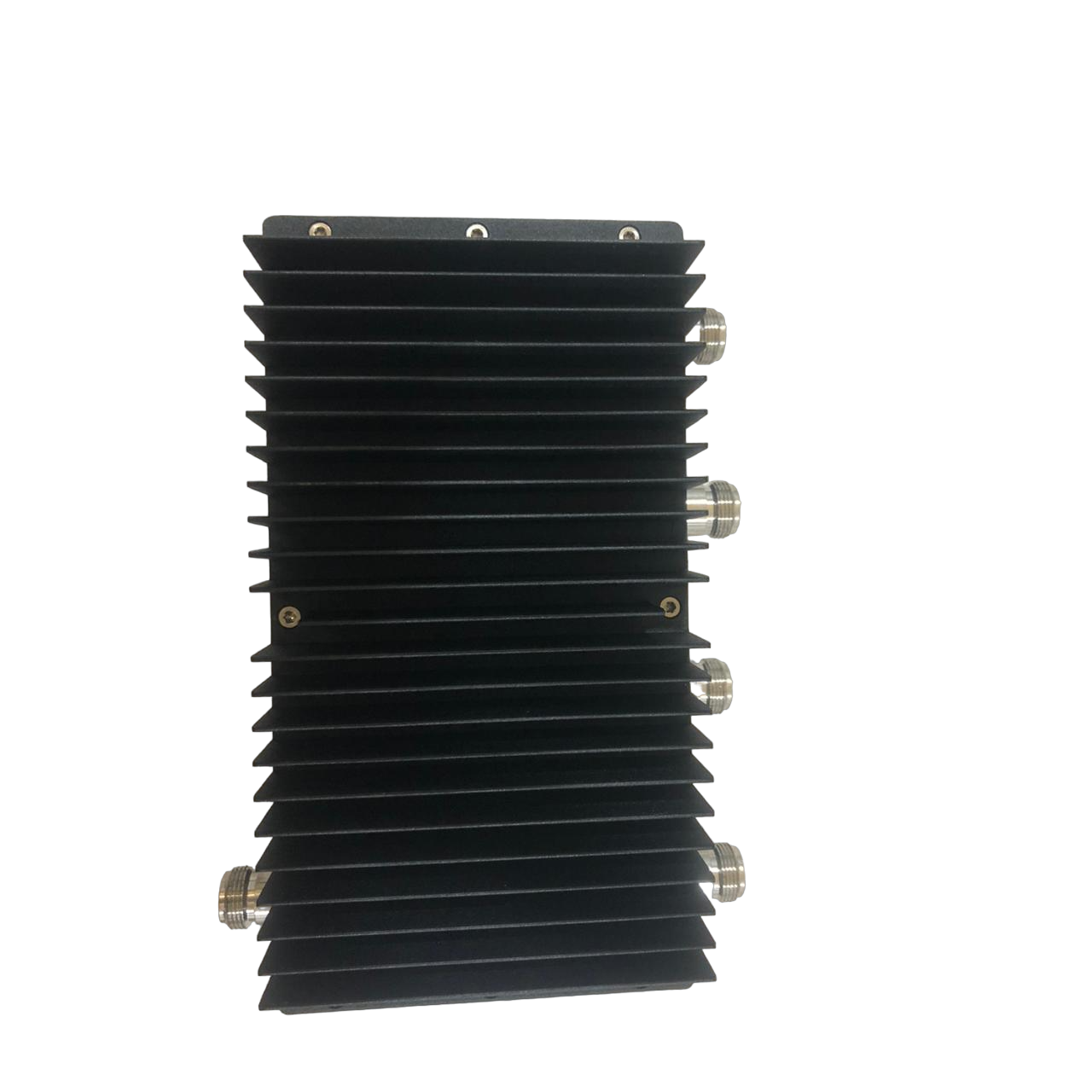

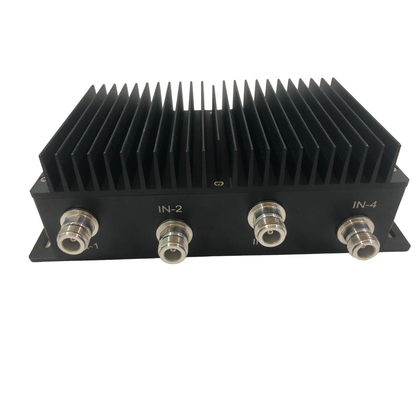

4:1 Hybrid Combiner 698-4000 MHz
4:1 Hybrid Combiner 698-4000 MHz
Couldn't load pickup availability
Electrical & Mechanical Specifications
| Operating Frequency | 698-4000 MHz |
| Impedance | 50 Ohm |
| VSWR | 1.25 |
| Coupling | 6.1 dB |
| Insertion Loss | 1.3 dB |
| Isolation | >22 dB |
| IM3 (dBc @ 2×43dBm) | -150 dBc |
| Application | Indoor/Outdoor |
| Operating Temperature | -40 to 80 ℃ |
| Interface | N Female /Din Female /4.3-10 Female |
| Handling Power | 500 W |
| Peak Power | 1200 W |
| Dimension (mm) (L×W×H, excl connector) | 216*103*71 mm |
| Net Weight | 2200 Gms |
| ROHS Compliance | Yes |
