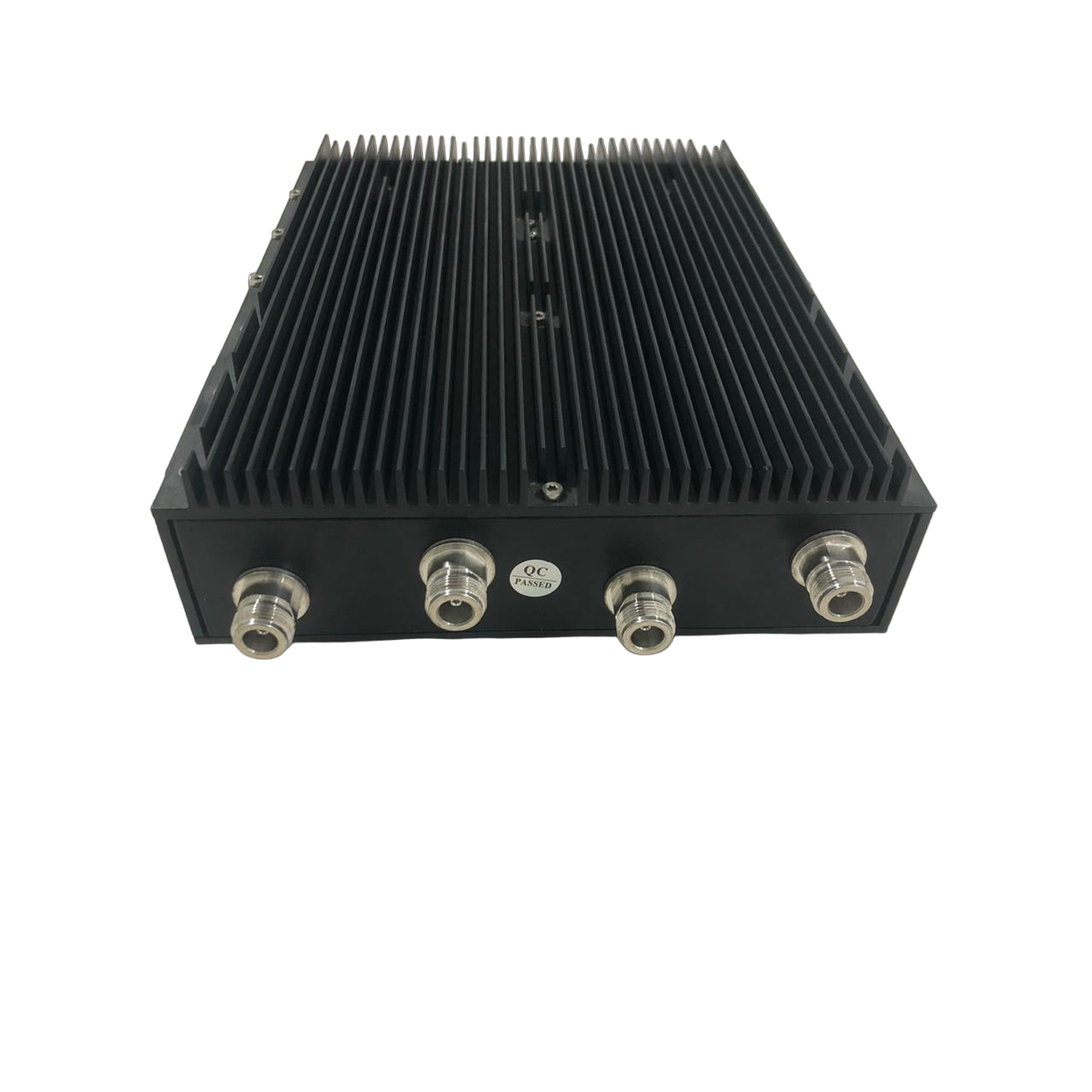

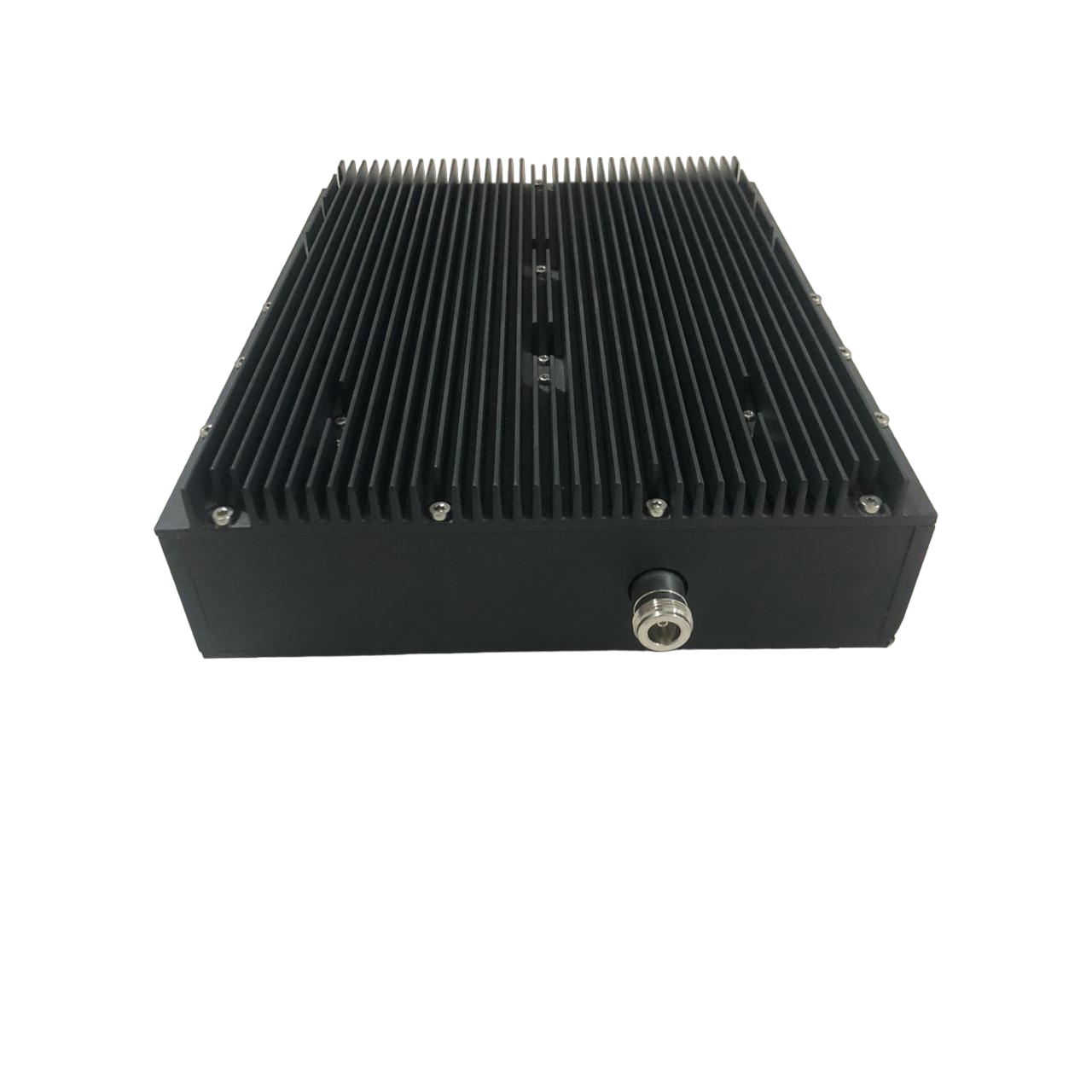

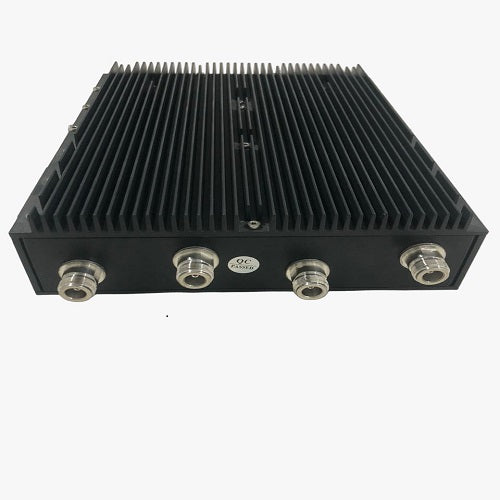

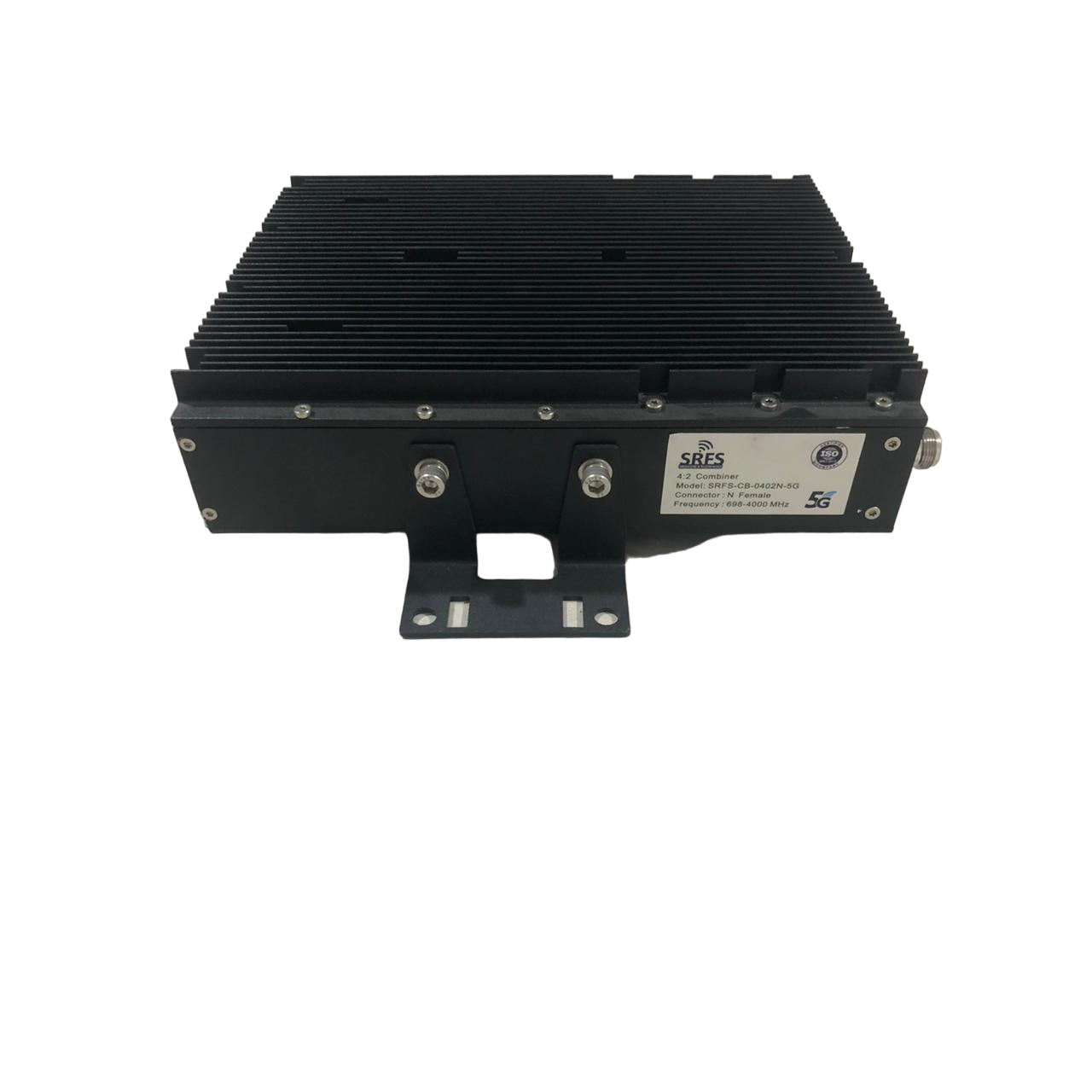

4 IN 1 OUT Hybrid Combiner -165dBc

Electrical Specifications

Frequency range

698MHz -4000MHz

Power handling

500W

Insertion Loss

≤7.5dB

Isolation between Bands

≥ 20 dB

VSWR

≤1.3

PIM3	≤ -165dBc @2x43dBm

Impedance

50Ω

Mechanical Specifications

Interface

N female

Weight (Expected)

5~6kg

Material

Aluminum

IN Port

4 Nos.

OUT Port

1 Nos.

Color

Black



Environmental Specifications

Operational Temperature

-25℃ to +65℃

Relative Humidity

≤ 95%

Applications

Indoor

Waterproof Grade

IP55
