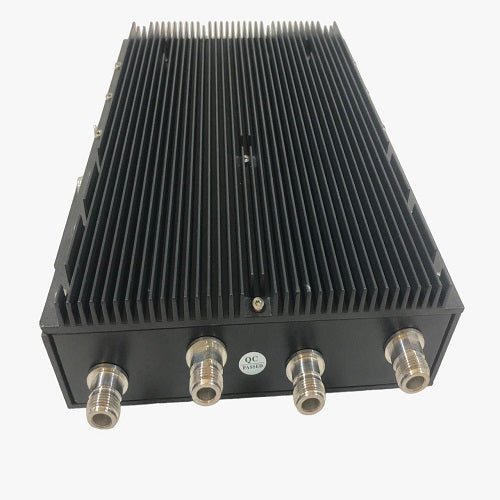

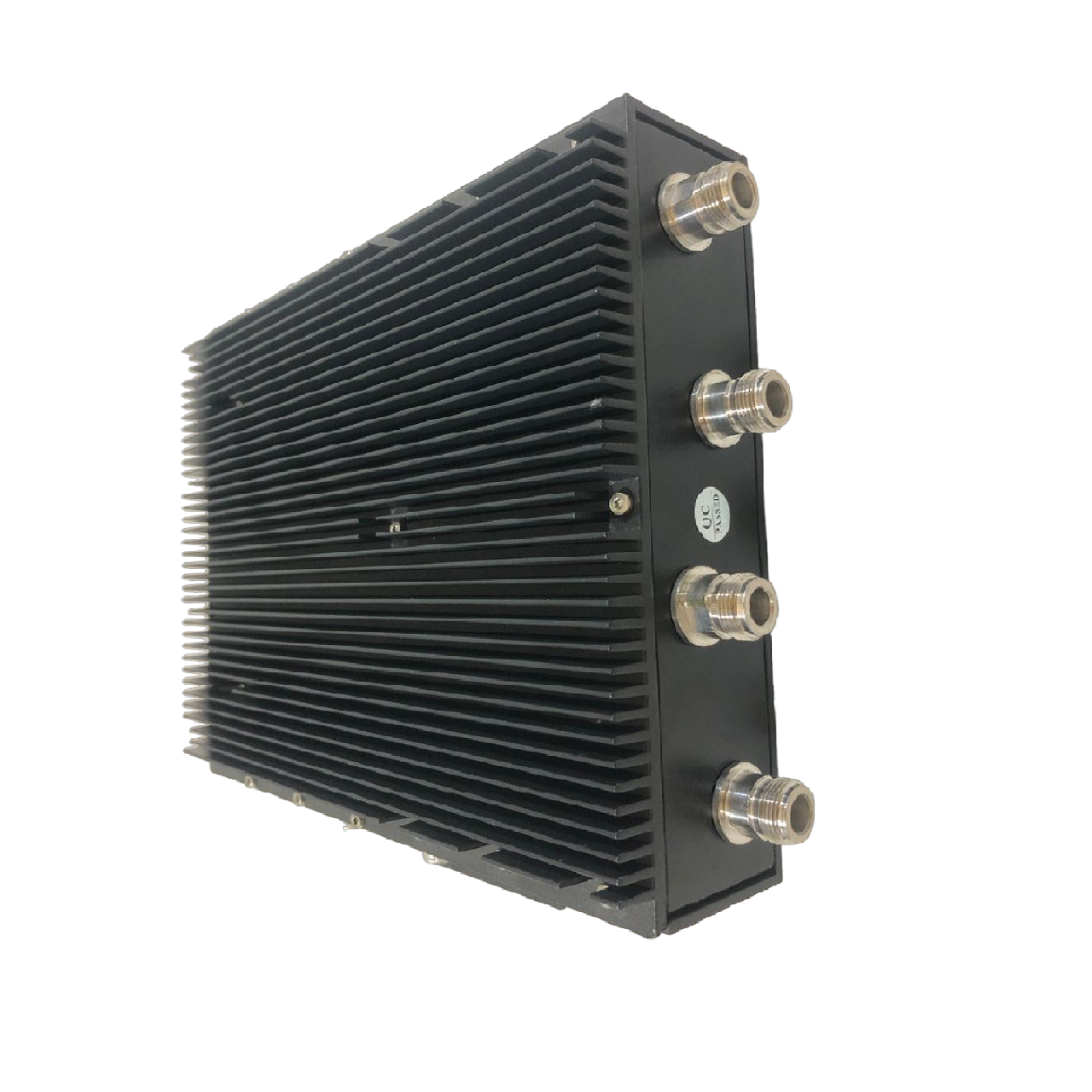

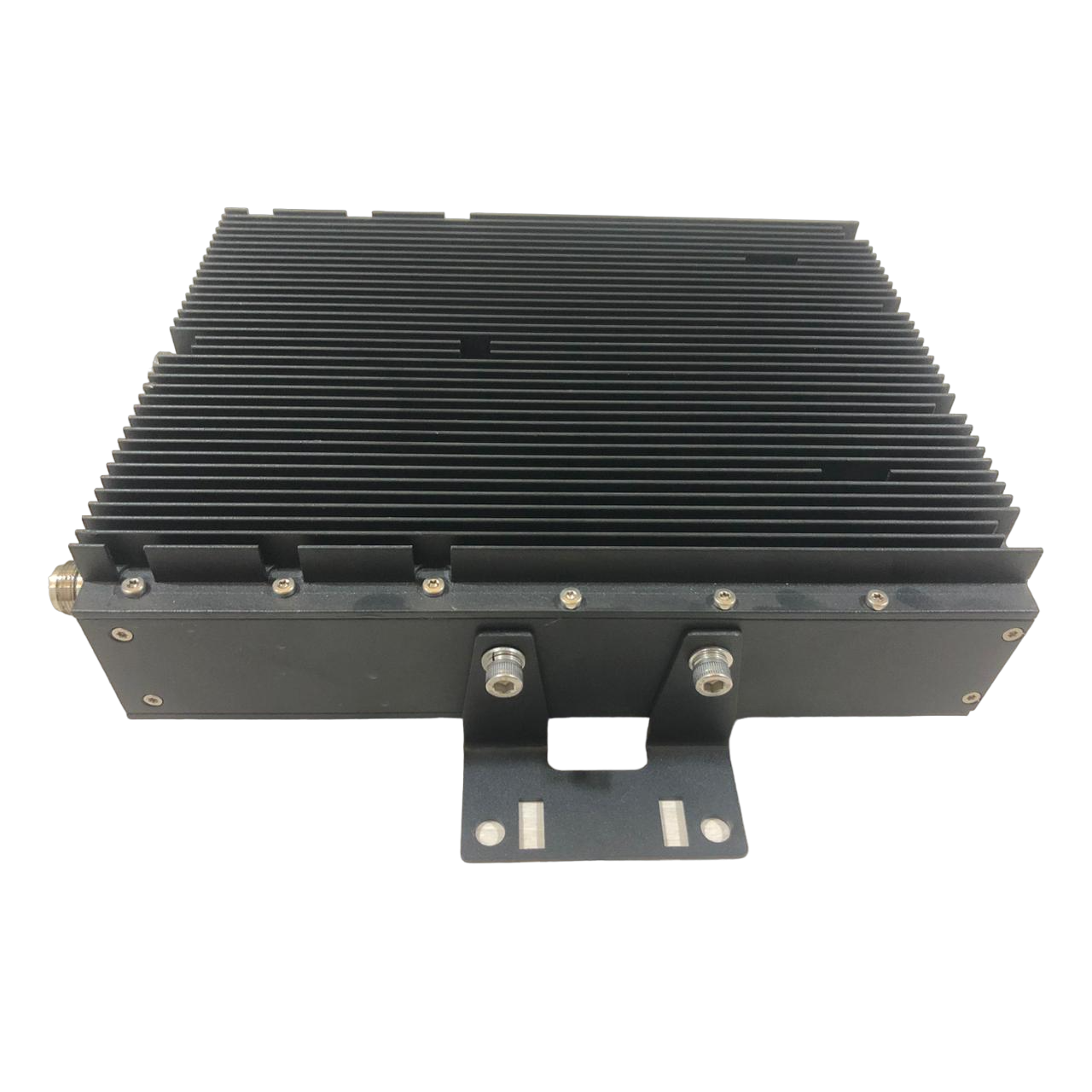

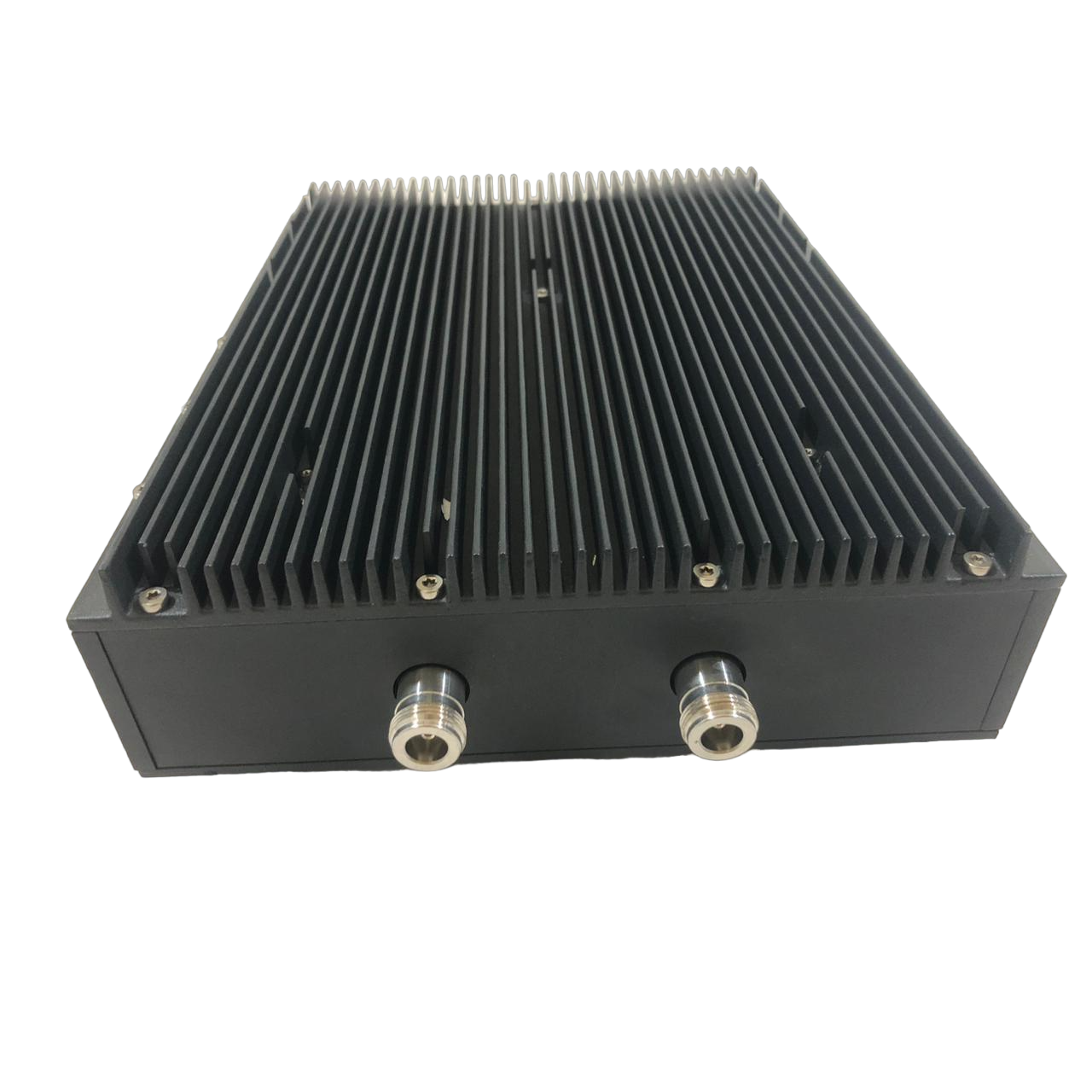

4 IN 2 OUT Hybrid Combiner -165 dBc
4 IN 2 OUT Hybrid Combiner -165 dBc
Electrical Specifications
Frequency range | 698MHz -4000MHz |
Power handling | 500W |
Insertion Loss | ≤7.5dB |
Isolation between Bands | ≥ 20 dB |
VSWR | ≤1.3 |
PIM3 | ≤ -165dBc @2x43dBm |
Impedance | 50Ω |
Mechanical Specifications
Interface | N female |
Weight (Expected) | 5~6kg |
Material | Aluminum |
IN Port | 4 Nos. |
OUT Port | 2 Nos. |
Color | Black |
Environmental Specifications
Operational Temperature | -25℃ to +65℃ |
Relative Humidity | ≤ 95% |
Applications | Indoor |
Waterproof Grade | IP55 |
