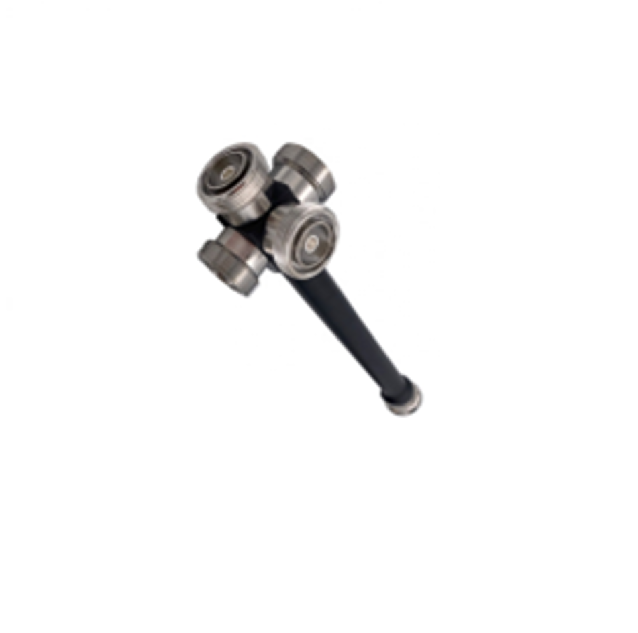

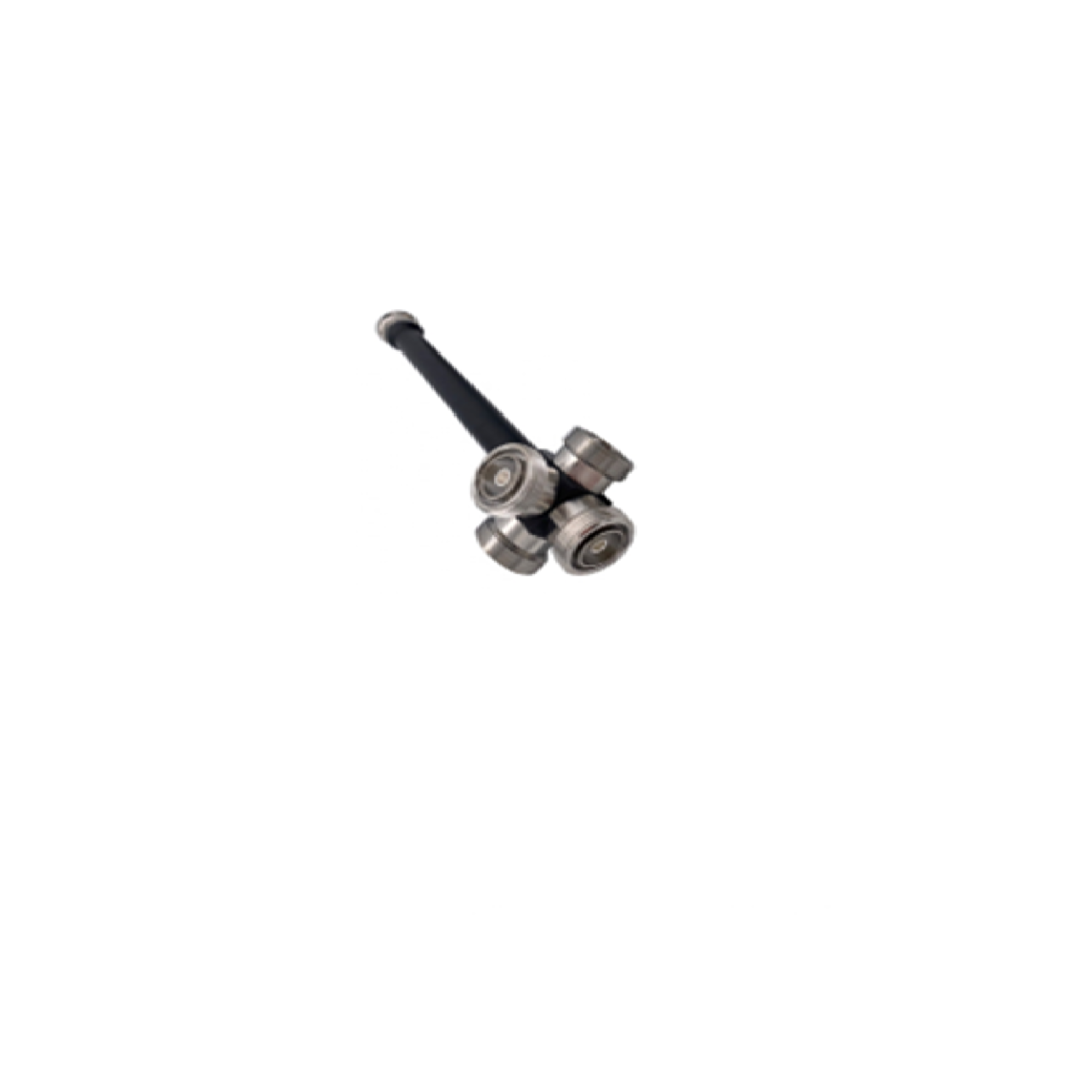

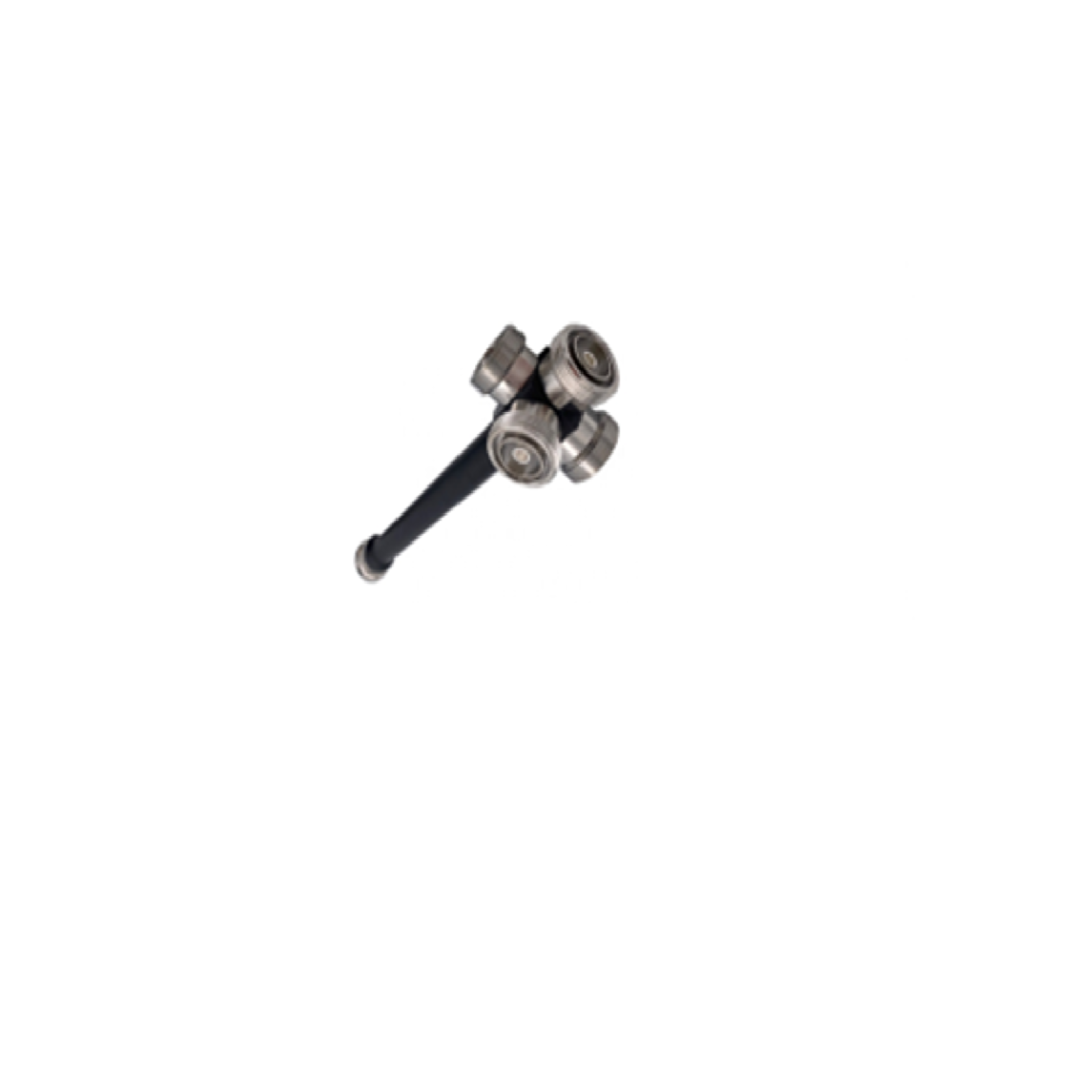

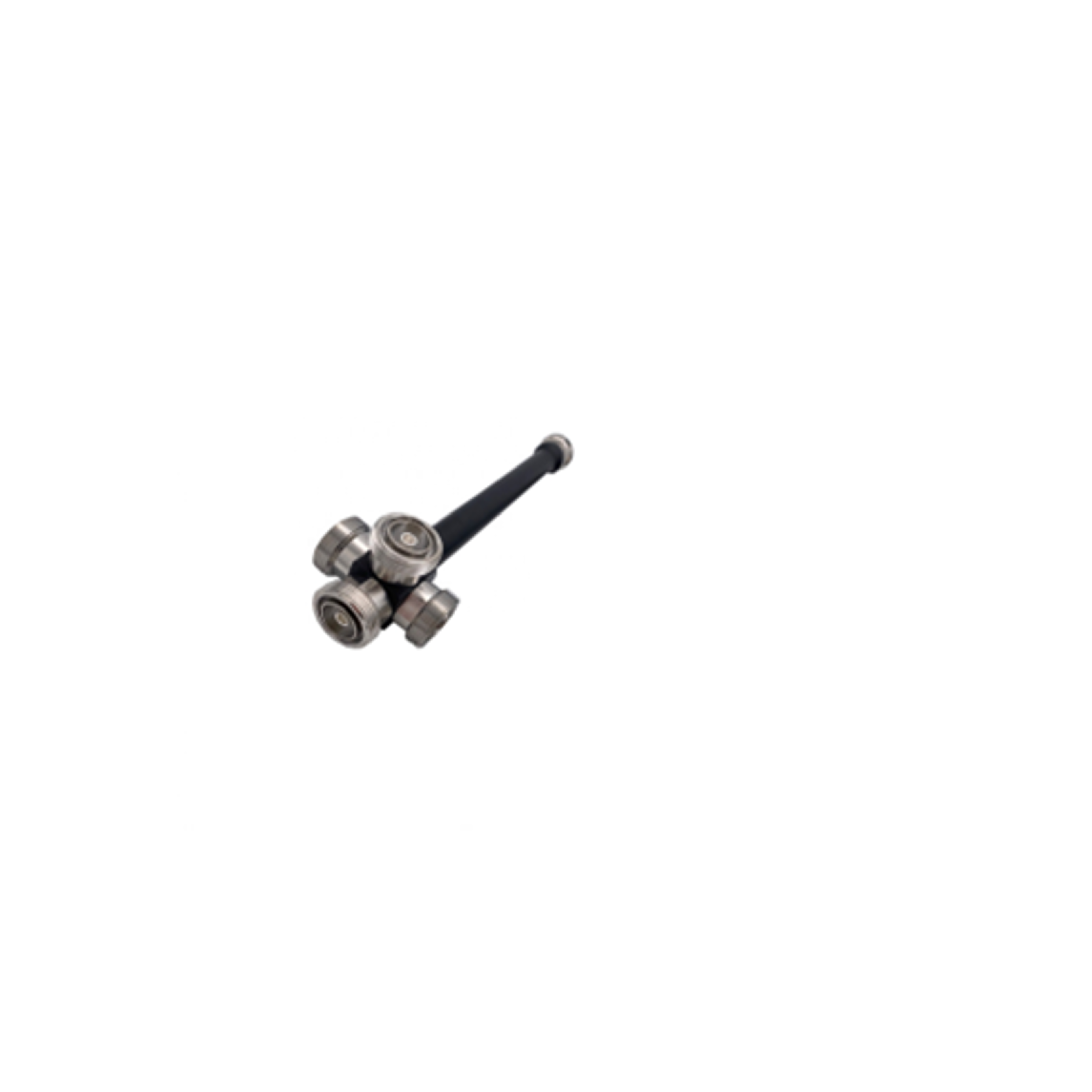

4- Way DIN-F 698-4000MHz Power Splitter
4- Way DIN-F 698-4000MHz Power Splitter
Couldn't load pickup availability
Product Description
• Wide Frequency Band 698-4000MHz
• 2G/3G/4G/LTE/5G Coverage
• Low Passive Inter-modulation
• Low VSWR & Insertion Loss
• Indoor & Outdoor Application IP65
Widely used for In-building Solutions.
Electrical & Mechanical Specifications
|
Frequency |
698-4000MHz |
|
Impedance |
50Ω |
|
Type |
4 way |
|
Insert loss |
≤6.5dB |
|
VSWR |
≤1.3 |
|
In-band ripple |
≤0.55dB |
|
PIM3 |
≤-160dBc@43dBm*2 |
|
Power |
500W |
|
Impedance |
50Ω |
|
Operating temperature |
-20～+55℃ |
|
Connector |
DIN-F |
|
Degree of protection |
IP65 |
|
Dimensions |
219.4*207*25 mm |
|
Appearance |
Black paint |
