SRFS Teleinfra

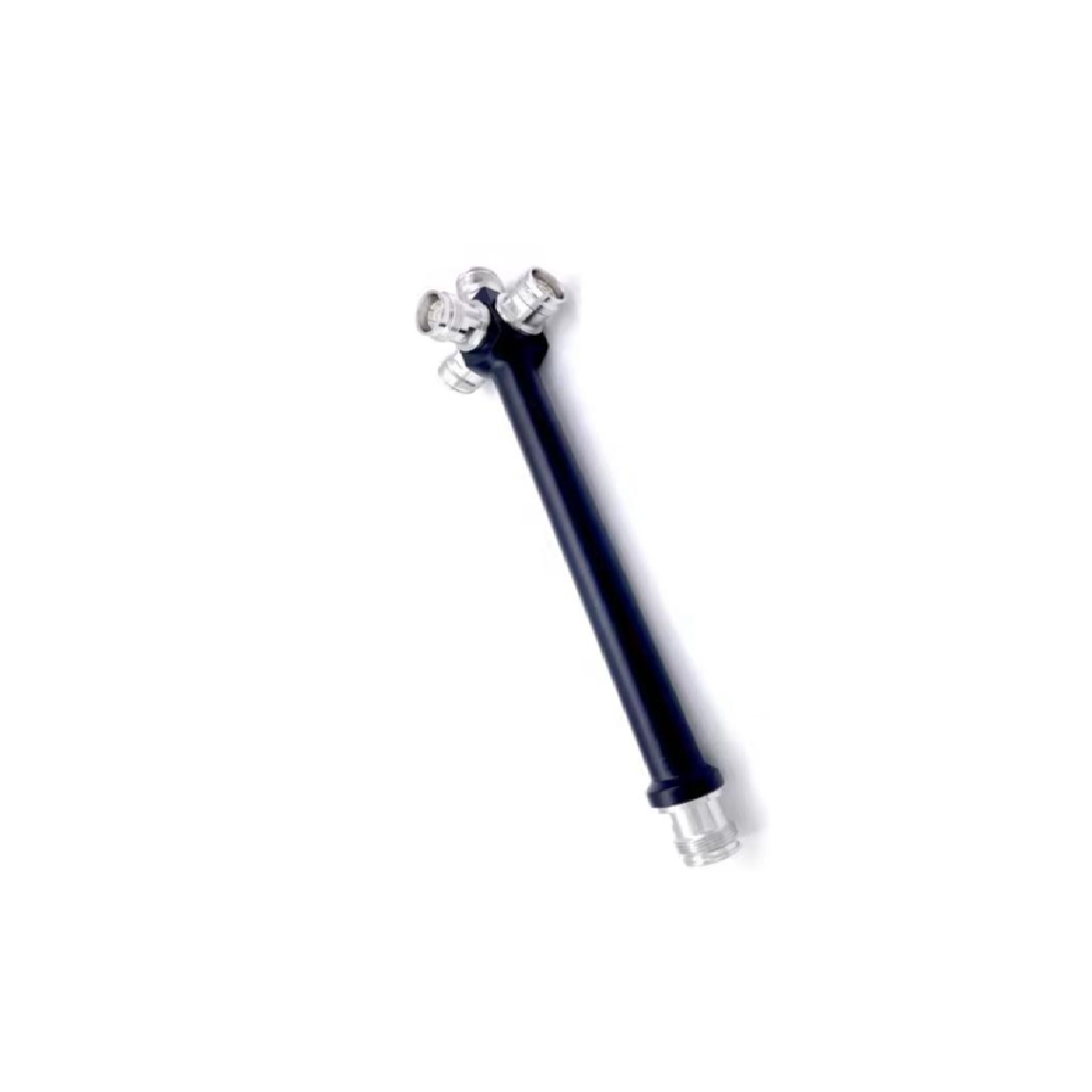

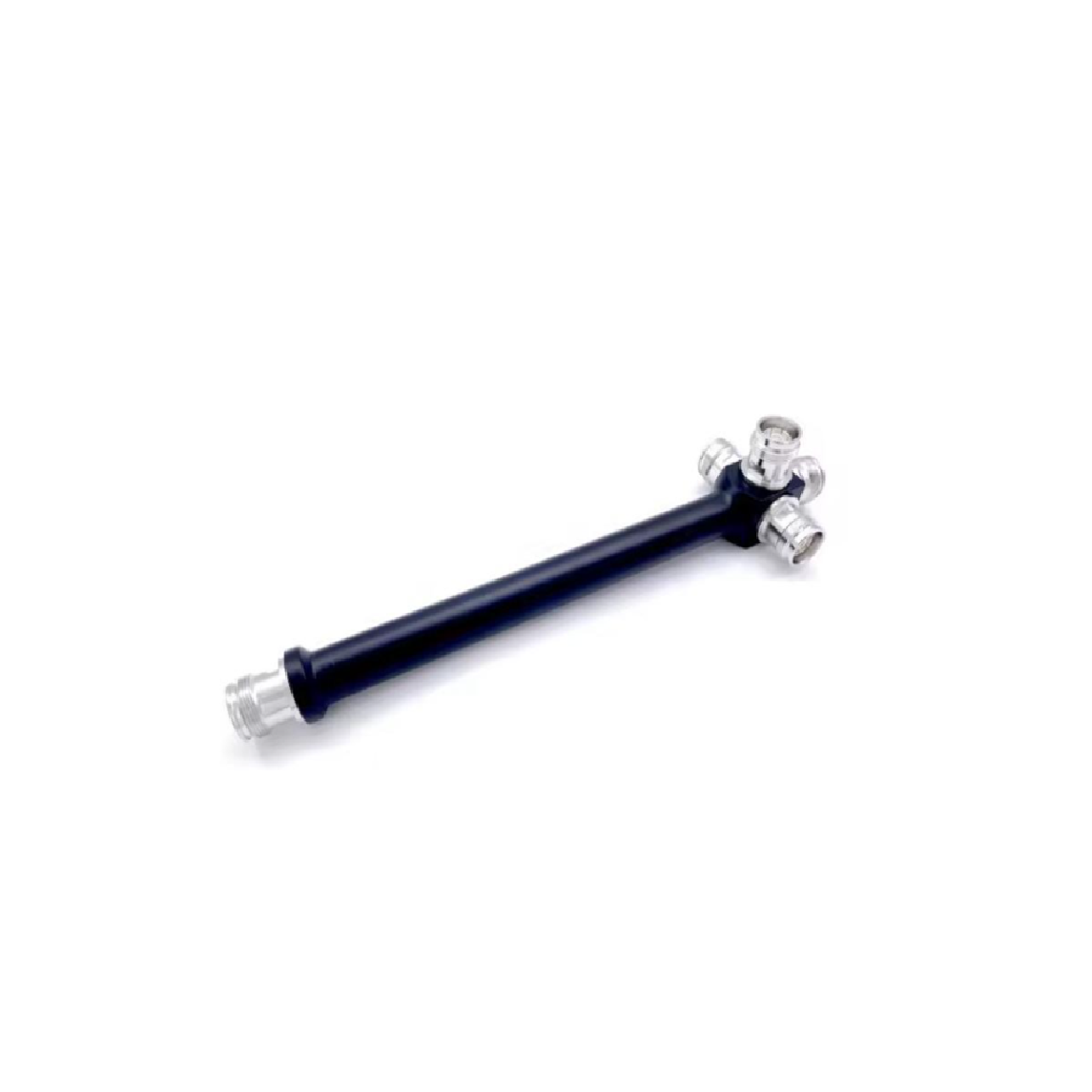

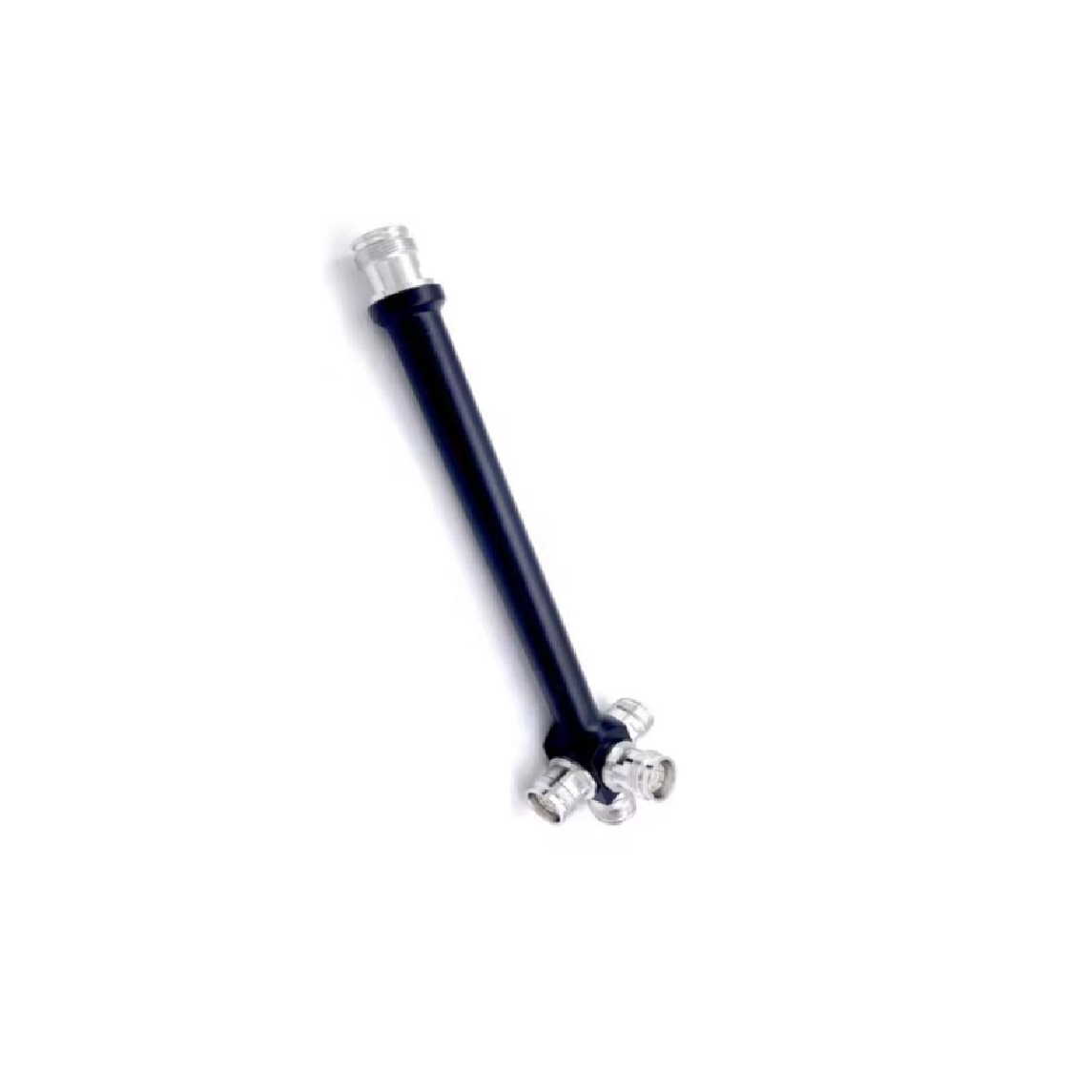

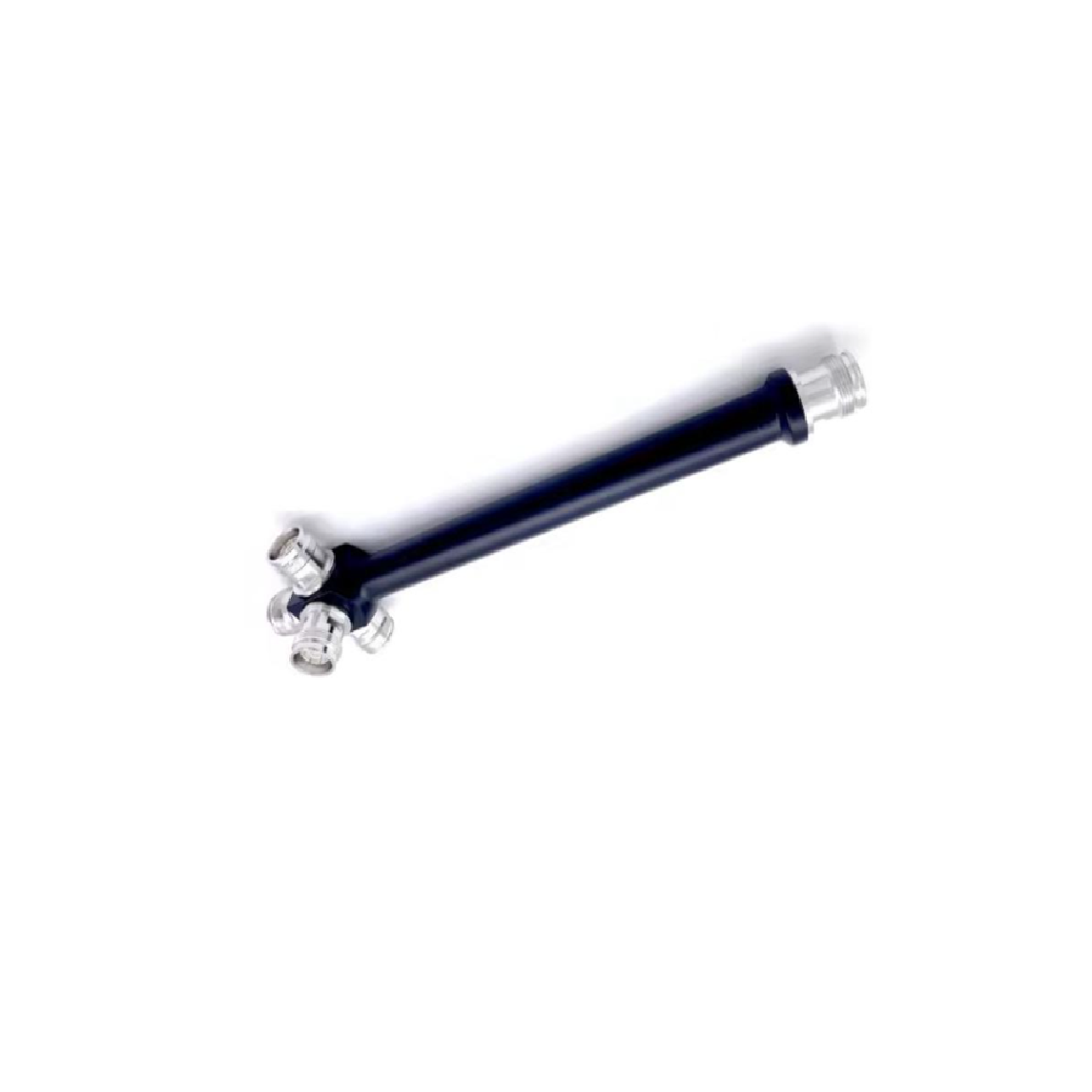

4-Way Power Splitter 698-4000MHz (4.3-10 Female)

4-Way Power Splitter 698-4000MHz (4.3-10 Female)

Electrical & Mechanical Specifications

Item Name

4 Way

Freq (MHz)

698-4000

Insertion Loss

<6.5dB

VSWR

<1.2

In-band Ripple

≤0.55dB

Input Port Number

1

Output Port Number

4

3rd PIM (dBc)

≤-155dBc@2×43dBm

Average Power(W)

300W

Impedance

50 ohm

Connector Type

4.3-10-Female

Size

 219mm*25mm*5mm

Color

Weight Black

Temp(deg)

-45+85

Weight

0.24kg

Degree of protection

IP65

Finish

Black Paint
