SRFS Teleinfra

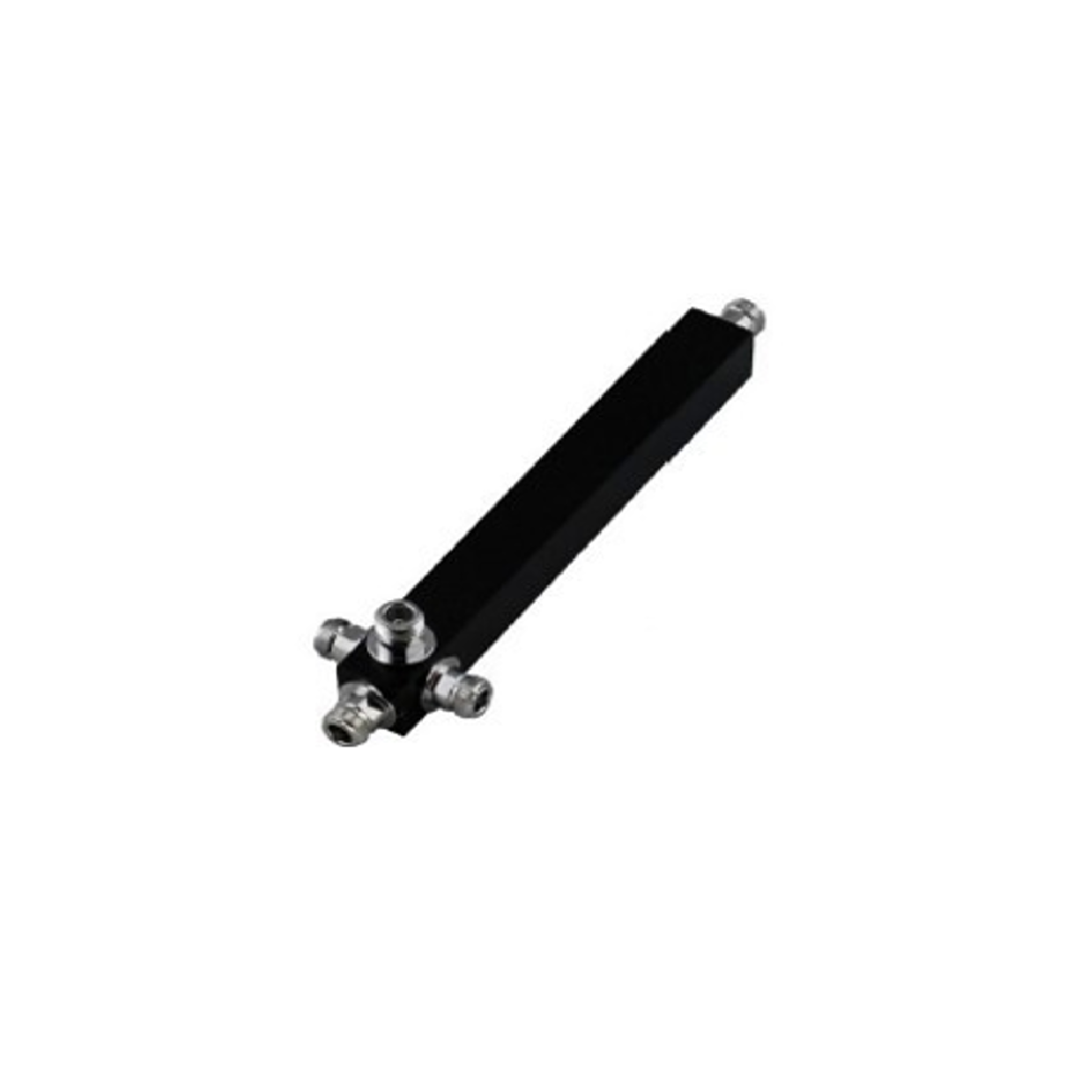

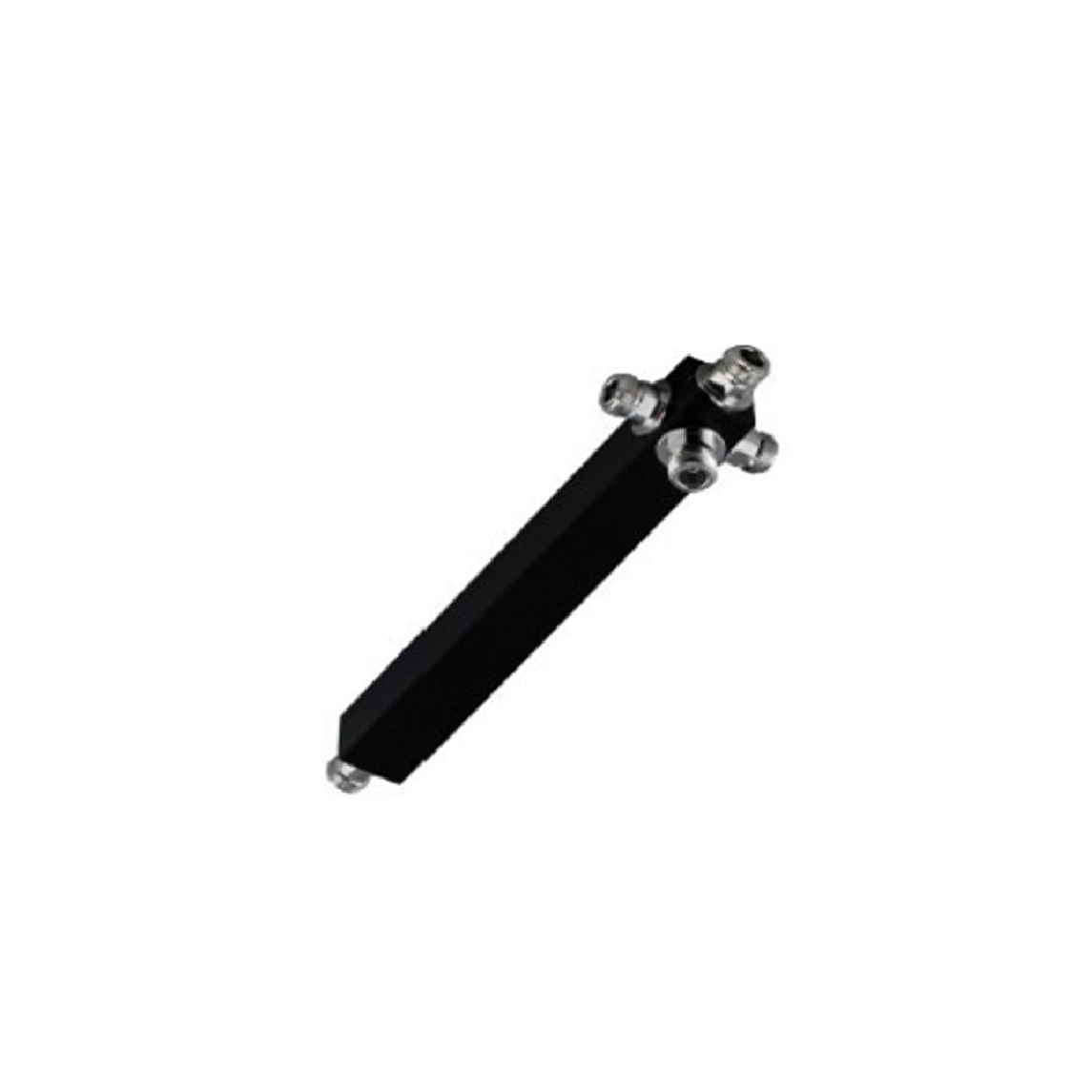

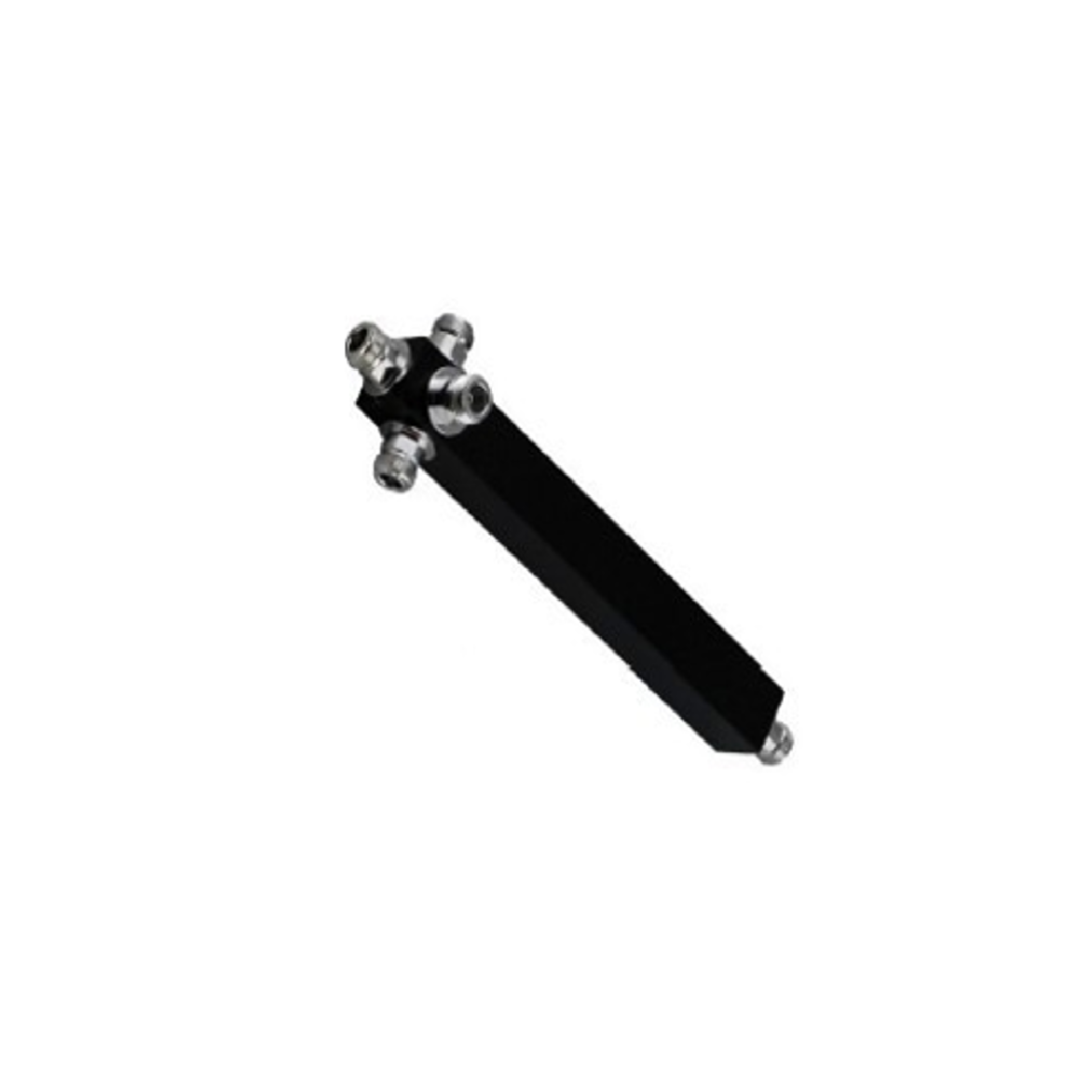

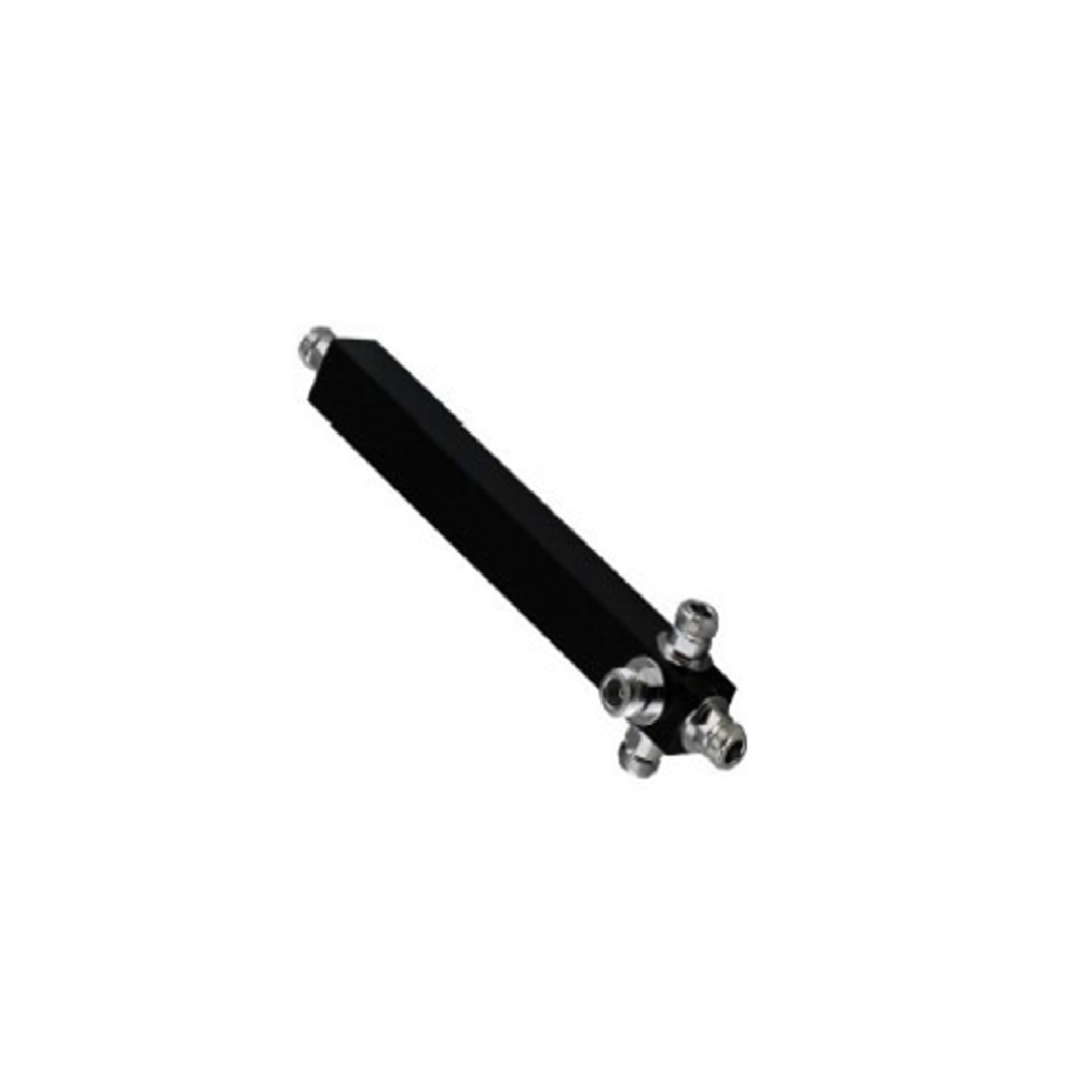

4-Way Power Splitter 698-4000MHz Square Type
4-Way Power Splitter 698-4000MHz Square Type
Electrical & Mechanical Specifications
Freq (MHz) |
698-4000 |
Input Port Number |
1 |
Output Port Number |
4 |
Split Loss(dB) |
6.0 |
IL (dB) |
≤0.6 |
VSWR |
≤1.3 |
3rd PIM (dBc) |
≤-150dBc@2*43dBm |
Average Power(W) |
300 |
Impedance |
50 ohm |
Connector |
N-Female |
Color |
Weight Black or Customized |
Temp(deg) |
-35~+65 |
Application |
Indoor & Outdoor IP65 |
Relative Humidity |
5%-95% |
Dimensions(mm) |
268.6*60.4*42.7 (Connectors Included) |
