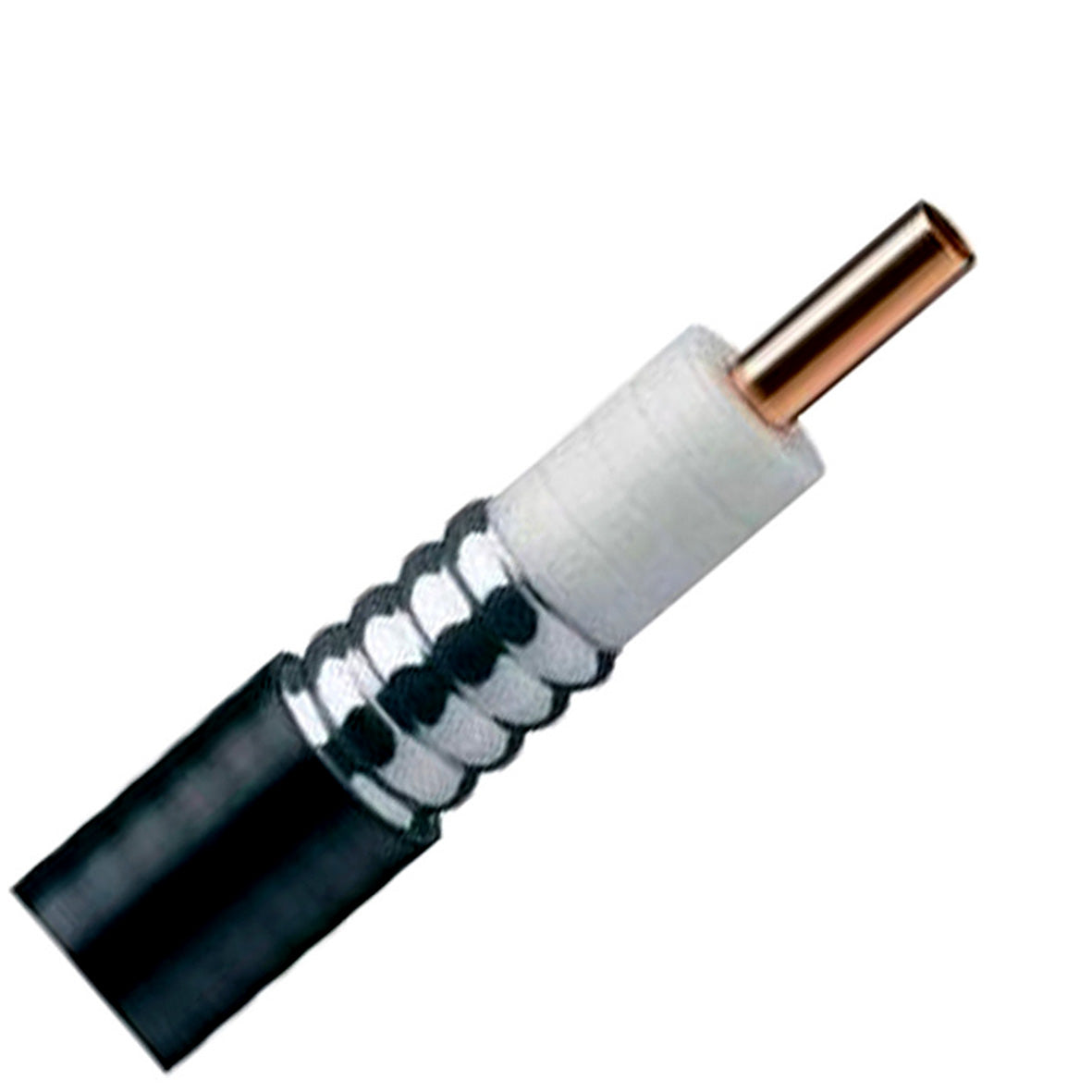

7/8” Feeder Cable (Aluminum)

7/8” Feeder Cable (Aluminum)

Product Description

• The high Performance of attenuation allows co-axial cable
to be used in different RF systems, such as 3G, 4G Mobile
Communication.
• Wide range of applications, such as indoor distribution,
broadcast, various base stations wireless cellular, and others .
• Lower VSWR, perfect shielding effectiveness, and
extraordinary inter-modulation performance lead to fewer
energy loss and outer interference.

CONSTRUCTION

Item Material Diameter
Inner Conductor Copper Tube 9.1 mm
Dielectric Foamed PE PE 22.5 mm
Outer Conductor Corrugated Aluminum

tube
24.8 mm
Jacket PE  27.5 mm



Physical Characteristics


Cut Off Frequency 5 GHz/ 5.3 GHz
Impedance 50Ω
Nominal Capacitance 76 p F/m
Maximum Operating Frequency 5 GHz
Peak power 90 KW
Inner conductor DC-Resistance ≤2.0 Ω/Km
Outer conductor DC-Resistance ≤1.20 Ω/Km
Inductance  0.190 μH/m
DC breakdown voltage 6000 V


Mechanical & Environmental Specification

Max. Tensile Force 1470 N
Flat Plate Crush Strength 11N/mm
Min. Bending Radius (single) 100 mm
Min. Bending Radius (repeated) 250 mm
Storage Temperature -70 ~ 85°C
Installation Temperature -40 ~ 60°C
Operating Temperature -55 ~ 85°C
RoHS  Compliant


Frequency Attenuation
(MHz)
Attenuation(dB/100 ft) Attenuation(dB/100m)
100 1.24 6.3
450 2.76 2.83
800 3.79 2.03
900 4.05 1.92
1000 4.3 1.83
1800 6.1 1.29
1900 6.2 1.27
2100 6.57 1.20
2200 6.75 1.17
2500 7.27 1.08
2700 7.6 1.04
3000 8.1 0.94



VSWR


800 ~ 1000 MHz ≤ 1.1
1700-2200MHz ≤ 1.13
