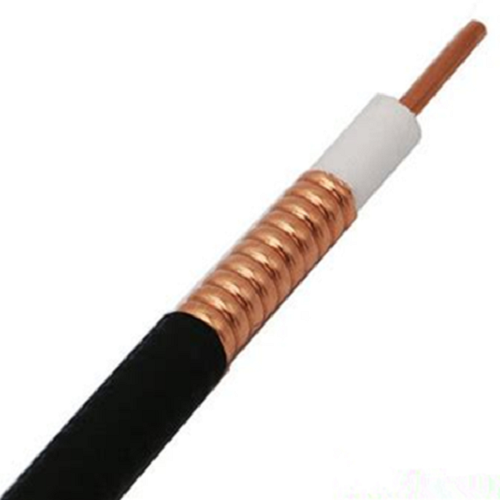

7/8” Hansen Copper Feeder Cable Part No. RF50 7/8”

Product Description

• The high Performance of attenuation allows co-axial
cable to be used in different RF systems, such as 3G, 4G
Mobile Communication.
• Wide range of applications, such as indoor
distribution, broadcast, various base stations wireless
cellular, and others.
• Lower VSWR, perfect shielding effectiveness, and
extraordinary inter-modulation performance lead to
fewer energy loss and outer interference

CONSTRUCTION

Item

Material

Diameter

Inner Conductor

Copper Tube

8.70 mm

Insulation

Physically Foamed PE

22.50 mm

Outer Conductor

Ring Corrugated Copper

24.90 mm

Jacket

PE

27.30 mm

ELECTRICAL SPECIFICATION

Cut Off Frequency

DC – 5.5 GHz

Impedance (Ω)

50Ω

Nominal Capacitance

75 p F/m

Nominal Inductance

0.19 µ H/m

Velocity of Propagation (%)

86%

DC Breakdown Voltage

6.0kV

PIM	≤ -160 dBc@ (2x20W)

Peak Power Rating

91.0 kW

Insulation Resistance

> 5 x 10³ MΩ / Km

Screening Attenuation

>120 dB

 Mechanical & Environmental Specification



Minimum Bending Radius

120 mm

Single Bend

70 mm

Repeated Bend Radius

250 mm

Max. Tensile Force

1470 N

Recommended Maximum Clamp Spacing

1 m

Storage Temperature

-55to +80ºC

Installation Temperature

-40 to +60ºC

Operating Temperature

-55 +80ºC

RoHS

Compliant



Frequency Attenuation (MHz)

Attenuation & Average Power(dB/100 m)

Attenuation(20oC kw (MHz))

100

1.19(0.36)

7.56

450

2.65(0.81)

3.41

690

3.35(1.02)

2.85

800

3.63(1.11)

2.48

900

3.88(1.18)

2.33

1000

4.12(1.26)

2.19

1800

5.75(1.75)

1.57

2000

6.11(1.86)

1.48

2200

6.45(1.97)

1.41

2400

6.79(2.07)

1.34

2500

6.95(2.12)

1.30

2600

7012(2.17)

1.27

2700

7.28(2.22)

1.25

3000

13.40(2.37)

0.565



VSWR

800 ~ 1000 MHz

1.12

1700 ~ 2200 MHz

1.12

2300 ~ 2400 MHz

1.12

2500 ~2700 MHz

1.15
