SRFS Teleinfra

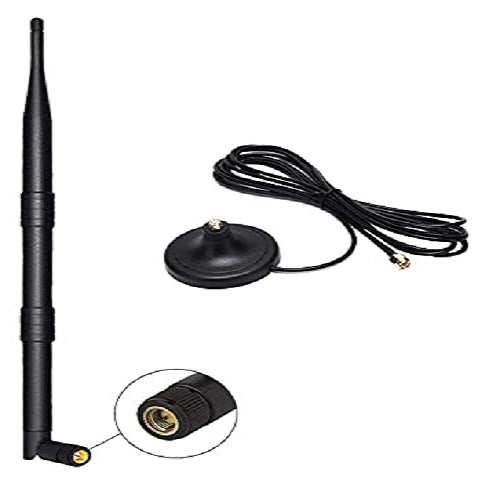

9 dBi Rubber duck Antenna with Magnetic base Antenna 698-2700 MHz

9 dBi Rubber duck Antenna with Magnetic base Antenna 698-2700 MHz

ELECTRICAL& MECHANICAL SPECIFICATIONS


Frequency Range  698-960/1710-2700 MHz
Impedance 50 Ω
Peak Gain 9 dBi
Bandwidth 2.4 GHz
Radiation Omni-Directional
Polarization Vertical
Operation Temp -40C ~ +60C
Overall Height 15.7 inches / 40 cm
Magnetic Base Diameter 2.4 inches / 6 cm
Antenna Height 14.7 inches / 37.5 cm
Antenna Material Polycarbonate
Connector Material Brass - RoHS compliant
Ground Plane  Integrated
Antenna Connector  SMA Male Plug Swivel
Magnetic Base Connector  SMA Female Jack
Cable Connector  SMA Male Plug
Coax Cable  RG174 Cable
Length
 3 Meters
