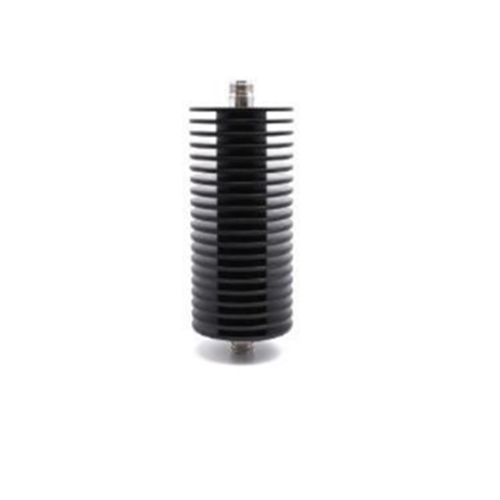

Attenuator 20 dB 100 W DC-18 GHz N(M-F)

Electrical and Mechanical Specifications
Frequency range	DC-18Ghz
Impedance	50Ω
Nominal Attenuator	20dB
Power Input	100Watt
VSWR Maximum	1.25
Durability (matings)	>500
Material & Plating
Connector parts	Material	Plating
Body	Brass	Suco-plated
Coupling nut	Brass	Suco-plated
Pin contacts	Beryllium copper	Gold
Insulators	PTFE
