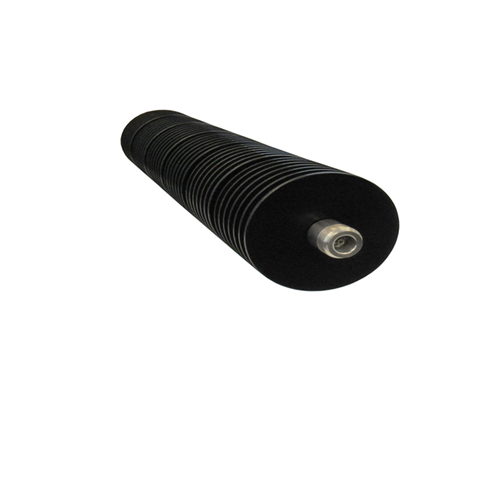

Attenuator 50dB 150 W 18 GHz

ELECTRICAL&MECHANICAL SPECIFICATIONS

Characteristic Impedance

50 ohm

Frequency Range

 0-18 GHz

VSWR

1.50 Max

Average

150 Watts at 25°C

Peak

1000 Watts (5 µsec pulse width)

Temperature Range

 - 55°C – +100 °C

MATERIAL&PLATING

Body

Passivated Stainless Steel

Contacts

BeCu

Dielectric

PTFE

ROHS Compliant

Yes

Attenuation Accuracy(Max)

Attenuator Value

50 dB

DC-18 GHZ

±2.5 dB
