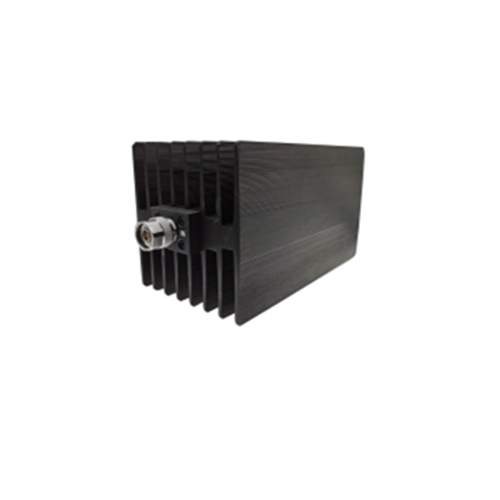

Attenuator-60dB-200-W-18-GHz

ELECTRICAL&MECHANICAL SPECIFICATIONS

Characteristic Impedance

50 ohm

Frequency Range

 0-18 GHz

VSWR

1.45 Max

Average

200 Watts at 25°C

Peak

1000 Watts (5 µsec pulse width)

Direction

Unidirectional, N Male input, N Female output

Temperature Range

- 55°C – +100 °C

MATERIAL&PLATING

Body

Passivated Stainless Steel

Contacts

Gold Plated Beryllium Copper

Heat Sink

Black Anodized Aluminum

ROHS Compliant

Yes

Attenuation Accuracy(Max)

Attenuator Value

60 dB

Accuracy

±1.4 dB
