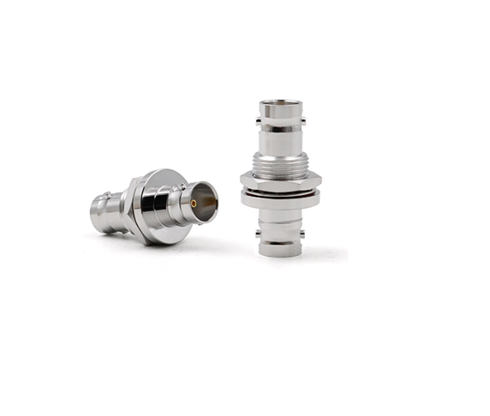

BNC Double Female Bulkhead Adaptor
BNC Double Female Bulkhead Adaptor
Couldn't load pickup availability
| Electrical & Mechanical Specifications | ||
|
Characteristic impedance |
75Ω |
|
|
Frequency |
DC-2Ghz |
|
|
Dielectric withstanding voltage |
1500V |
|
|
Characteristic impedance-- |
75Ω |
|
|
Insulation Resistance |
>5000MΩ |
|
|
Center conductor |
<1.5mΩ |
|
|
Outer conductor |
<1mΩ |
|
|
Durability (matings) |
>500 |
|
|
Temperature range |
-40℃ to+70℃ |
|
|
Material & Plating |
||
|
Connector parts |
Material |
Plating |
|
Body |
Brass |
Nickel plated |
|
Pin contacts |
Brass |
Gold |
|
Insulators |
Teflon |
|
