SRFS Teleinfra

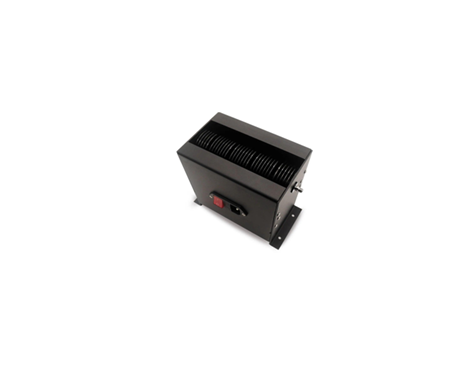

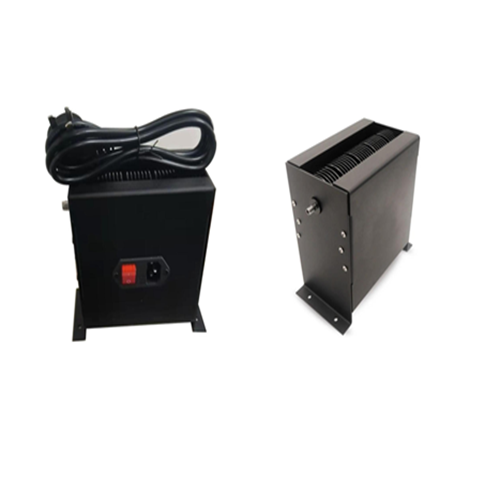

Coaxial Fixed Attenuato DC-40 GHz, 100 Watts, 2.92mm Unidirectional, Forced air cooled

Impedance	50 ohm
Frequency Range	DC-40 GHz
VSWR	1.4 max
Input Avg Power	100W@ 25℃ ambient, derating linearly to 10W at 125℃
Peak Power	1000W (5 micro-sec pulse width, 5% duty cycle)
Direction	Unidirectional, 2.92mm male input, 2.92mm female output (other configurations available)
Electrical Fan	200-230V @ 50 Hz

Attenuation(dB)	10	20	30	40	50	60
Accuracy(dB)	-4.0/+4.0	-4.0/+4.0	-4.0/+4.0	-4.0/+4.0	-4.0/+4.0	-4.0/+4.0
