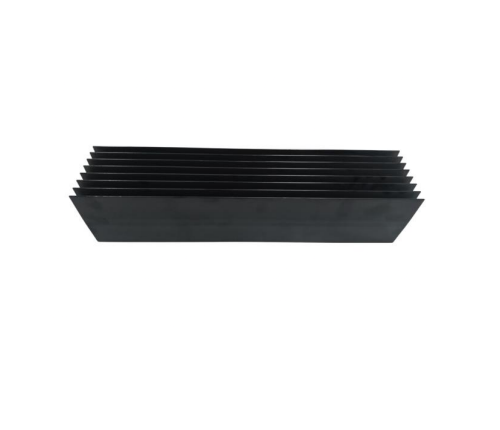

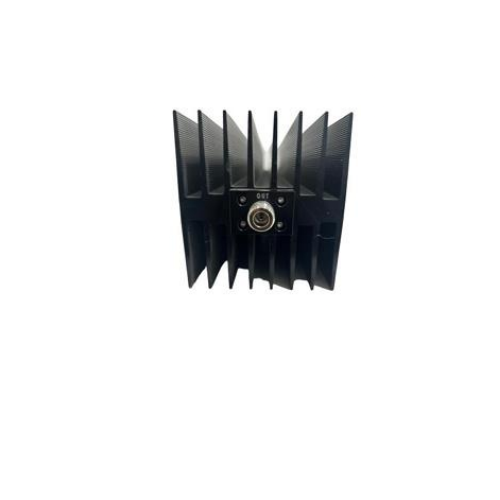

Coaxial Fixed Attenuator, DC-18 GHz, 40dB 600 Watts

Electrical, Mechanical and Environmental Specifications
Impedance	50 ohm
Frequency Range	DC-18 GHz
VSWR	1.5 max
Input Avg Power	600W
Direction	Unidirectional, N male input, N female output
Peak Power	1kW
Withstanding Voltage	500 V
Connector Body	Passivated stainless steel
Heat Sink	Black anodized aluminum
Center Contact	Gold plated beryllium copper/brass
Operating Temperature	-55℃to100℃
Storage Temperature	-55℃to125℃
RoHS Compliant	Yes
