Compact Microwave Lab Kit Type SRFS-2001

Following Experiments can be performed using this Lab Kit

To study characteristics of Reflex Klystron
To Study Frequency, Guide Wavelength &Free Space Wavelength
To measure the SWR & Reflection Coefficient.
To measure impedance of a load.
This is the basic Microwave Test bench using Klystron Source

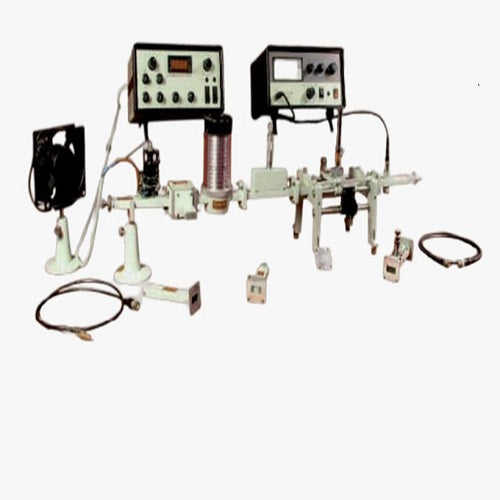

SRFS-2001 Compact Microwave Lab kit consist of the following components
and instruments

Klystron Power Supply

KP-151

1 No.

Klystron Mount

X-2051

1 No.

Klystron Tube

2K25 or K27

1 No.

Isolator

X-6021

1 No.

Frequency Meter, Direct Reading Type

X-4155

1 No.

Variable Attenuator

X-5020

1 No.

Slotted Section

X-6051

1 No.

Tunable Probe

X-6055

1 No.

Detector Mount

X-4051

1 No.

Movable Short

X-4081

1 No.

Magic Tee

X-3045

1 No.

Movable Short

X-4081

1 No.

Waveguide Stands

X-5035

4 No.

Slide Screw Tuner

X-4041

1 No.

BNC to BNC Cable

C-101

1 No.

BNC to Open Cable

C-102

1 No.

Cooling Fan

1 No.

Matched Termination

X-4000

1 No.

VSWR Meter Solid State

VS-411

1 No.

Fixed Short

UG-39/U

1 No.
