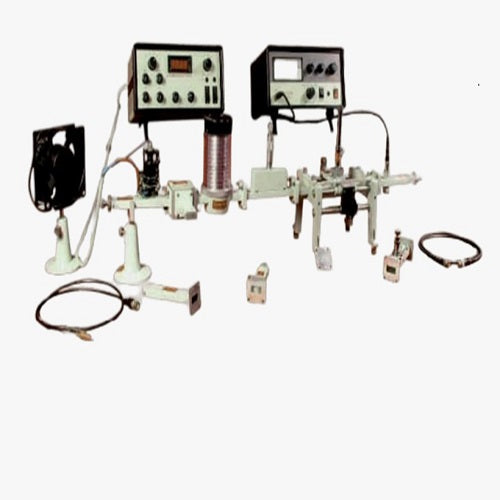

Compact Microwave Lab Kit Type SRFS-2005

Following Experiments can be performed using this Lab Kit

To study Magic Tee, Directional Couplers, Isolators and Circulators
To Study the characteristics of detector diode
To study attenuation measurement
To study the return loss measurement.

SRFS-2005 Compact Microwave Lab kit consist of the following components
and instruments

Klystron Power Supply

KP-151

1 No.

Klystron Mount

X-2051

1 No.

Klystron Tube

2K25 or K27

1 No.

Isolator

X-6021

1 No.

Frequency Meter, Direct Reading Type

X-4155

1 No.

Variable Attenuator

X5020

1 No.

Slotted Section

X-6051

1 No.

Tunable Probe

X-6055

1 No.

Detector Mount

X-4051

1 No.

Fixed Attenuator 3,6,10 dB

X-5000

3 No.

Magic Tee

X-3045

1 No.

Movable Short

X-4081

1 No.

Waveguide Stands

X-5035

4 No.

Slide Screw Tuner

X-4041

1 No.

BNC to BNC Cable

C-101

1 No.

Cooling Fan

1 No.

Matched Termination

X-4000

2 No.

Multihole D Coupler 3,10,20 dB

X-6000

3 No.

Three Port Circulator, Y-Type

X-602Y

1 No.

E-Plane Tee

X-3061

1 No.

H-Plane Tee

X-3065

1 No.

VSWR Meter Solid State

VS-411

1 No.
