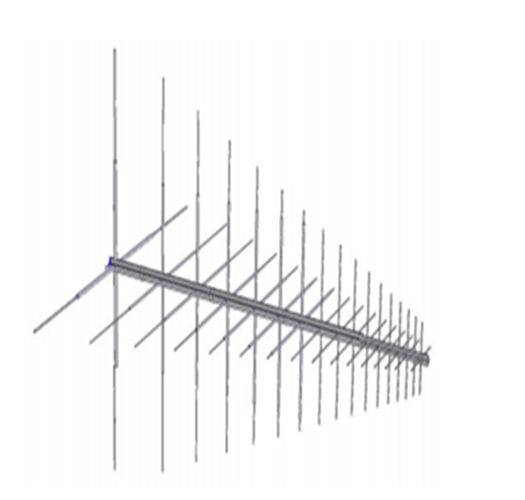

Dual-Polarized LPDA Antenna A0070

For more detail : Click Here

Electrical Specifications
Frequency range	20 – 500 MHz
VSWR	< 2.5:1
Nominal input impedance	50 Ω
Connector	2x N-type female
Feed power handling	100 W
MTBF	50,000 h
Gain	5.5 dBi typical, -2 dBi minimum from 20 – 30 MHz
E-plane	3 dB beamwidth 55º
H-plane	3 dB beamwidth 100º
Polarization	Dual (vertical and horizontal)
Mechanical Specifications
Dimensions deployed	5700 mm x 6700 mm
Material	Aluminum, stainless steel, fiberglass
Mounting method	Bracket onto a mast
Environmental Specifications
Wind survival	160 km/h (calculated)
Temperature (operational)	- 40 ºC to +55 ºC (no icing)
