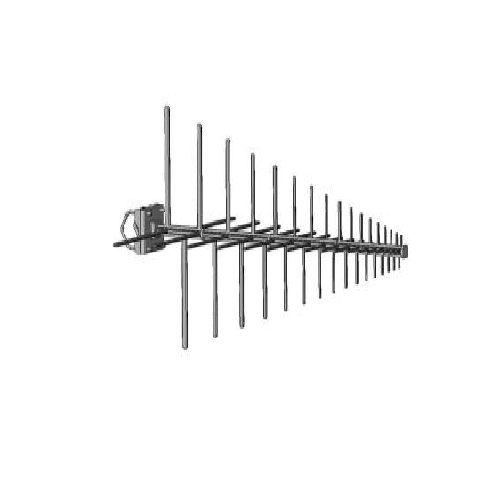

Dual-Polarized LPDA Antenna Model no.-SRFS- LPDA-A0042

For more detail : Click Here

Electrical Specifications
Frequency range	500 – 1000 MHz
VSWR	< 2:1
Nominal input impedance	50 Ohm
Isolation	> 22 dB
Feed power handling	500 W
Front-to-back ratio	> 20 dB
Gain	> 6 dBi over 95% of the frequency band
Elevation	3 dB beamwidth 68 º
Azimuth	3 dB beamwidth 100 º
Polarization	Dual
Connectors	Two 7/16 female (one for each pole)
Mechanical Specifications
Dimensions (w x l)	450 mm x 600 mm
Material	Aluminum, stainless steel, fiberglass
Total mass	<7 kg (including mounting bracket)
Environmental Specifications
Wind survival	160 km/h (calculated)
Temperature (operational)	-40 °C to + 55 °C (no icing)
