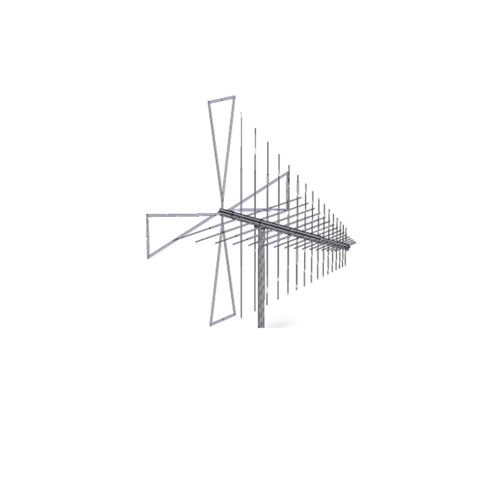

Dual-Polarized LPDA Antenna SRFS- LPDA-A0040

For more detail : Click Here

Electrical Specifications
Frequency range	30 – 100 MHz
VSWR	< 2.5:1
Nominal input impedance	50 Ω (nominal)
Isolation	< 15 dB
Feed power handling	1 kW
Front-to-back ratio	< 20 dB
Gain	5 dBi
Elevation 3 dB beamwidth	64º – 80º
Azimuth 3 dB beamwidth	260º – 116º
Polarization	Dual
Connectors	Two 7/16 female (one for each
MTBF	50,000 hours
Mechanical Specifications
Dimensions (w x l)	2882 mm x 2804 mm x 829 mm
Material	Aluminum, stainless steel, fiber glass
MTBF	100,000 h
Environmental Specifications
Wind survival	160 km/h (calculated)
Qualification	Design to comply with applicable parts of MIL-STD-810E temperature)
Temperature (operational)	-40 º C to +55 ºC (no icing)
