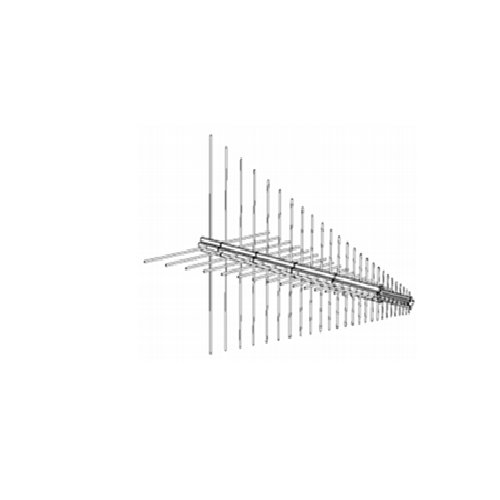

Dual-Polarized LPDA Antenna SRFS- LPDA-A0108

For more detail : Click Here

Electrical Specifications
Frequency range	100 – 3000 MHz
VSWR	< 2.5:1
Nominal input impedance	50 Ohm nominal
Isolation	> 20 dB
Feed power handling	500 W @ 100 MHz 100 W @ 3000 MHz
Front-to-back ratio	> 20 dB
Gain	> 6 dBi over 95% of the frequency band
E-plane 3 dB beamwidth	76º typical
H-plane 3 dB beamwidth	120º typical
Polarization	Dual linear
Connectors	2 x 7/16 female (one for each polarization)
Mechanical Specifications
Dimensions (l x w) mm	2100 mm x 1600 mm x 1600 mm
Material	Aluminum, stainless steel, fiberglass
Environmental Specifications
Wind survival	160 km/h (calculated)
Qualification	Designed to comply with applicable
Temperature (operational)	-40 °C to + 70 °C
