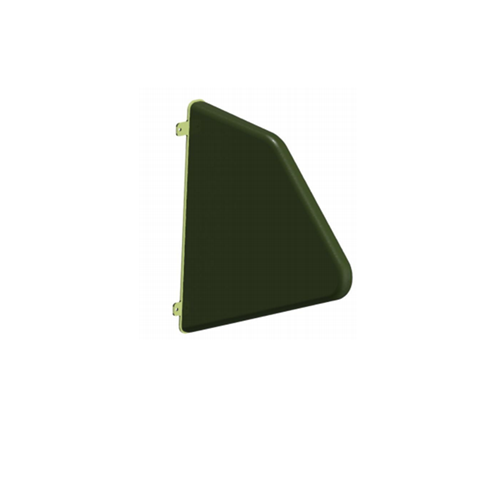

Dual Port High-Power LPDA Antenna SRFS- LPDA-A0162

Electrical Specifications

Frequency range

400 – 6000 MHz

   Band A

400 – 1600 MHz

   Band B

2400 – 6000 MHz

VSWR

< 2.0:1

Nominal input impedance

50 Ω

Connector

2x N-type female

Feed power handling

100W CW

Gain (typical)

See graph below

E-plane 3 dB beamwidth

 Band A

 Band B

70º - 100°

90° - 105°

H-plane 3 dB beamwidth

Band A

Band B

45º - 60°

50° - 60°

Polarization

Linear

Front-to-back ratio

≥ 22 dB

Mechanical Specifications

Dimensions (l x h x w)

625 mm x 710 mm x 160 mm (incl. bracket)

Material

Aluminum, stainless steel, fiberglass

Total mass

< 5 kg (incl. mounting bracket)

Mounting method

4 x M8 Bolts

MTBF

500,000 h

Environmental Specifications

Wind survival

160 km/h calculated

Operating Temperature

-30ºC to +65º (no icing)

Storage Temperature

-40ºC to +85º
