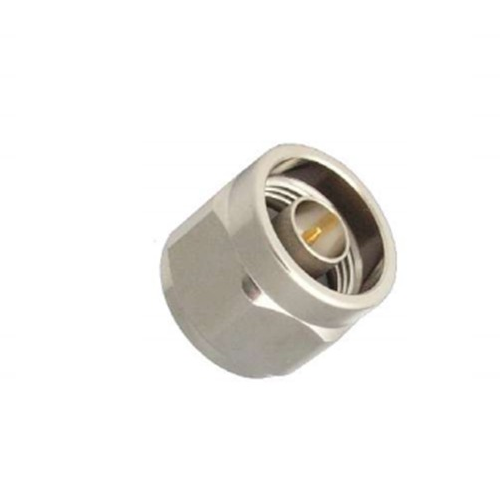

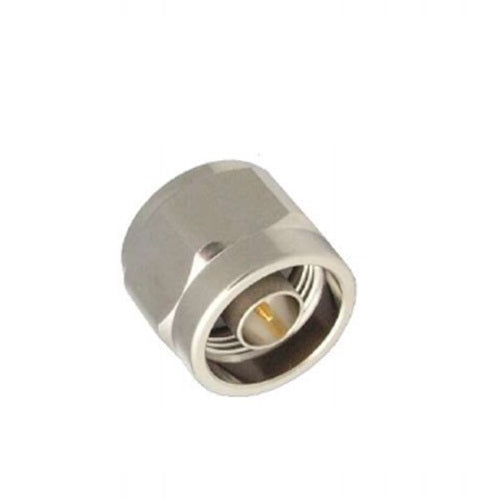

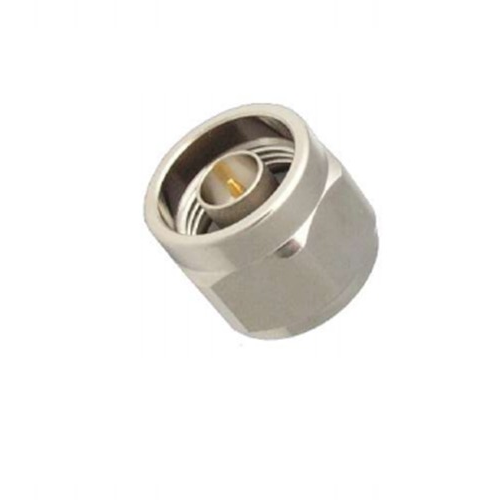

N MALE Dummy Load Termination, DC- 3000 MHz
N MALE Dummy Load Termination, DC- 3000 MHz
Couldn't load pickup availability
ELECTRICAL& MECHANICAL SPECIFICATIONS
| Frequency Range | DC- 3000 MHz |
| VSWR | ≤1.20:1 |
| Average Power | 1 Watt |
| Impedance | 50 Ω |
| Peak Power | 5µs:0.1KW |
| 3rd Order IMD | ≤-105dBc @2x43dBm |
| Connector | N Male |
Material
| Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Inner conductor | Phosphor bronze | Au |
| Coupling Nut | Brass | Ni |
ENVIRONMENTAL SPECIFICATIONS
| Operating Temperature | 65℃～+85 ℃ |
| Storage Temperature | -60℃～+120 ℃ |
| Relative Humidity | 5%-95% |
| RoHS Compliant | Yes |
