Electrical Insulating PVC tape
Electrical Insulating PVC tape
Couldn't load pickup availability
Product Description

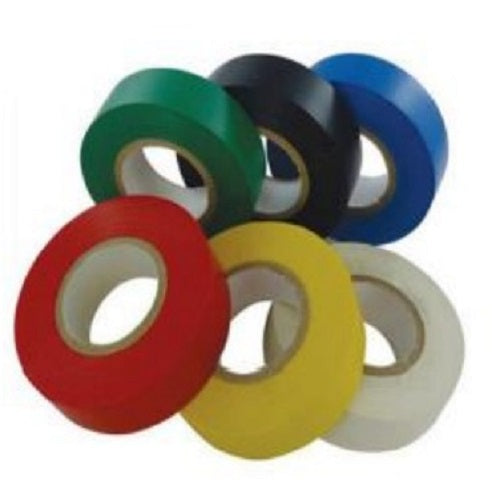

Colorful PVC Backing Insulating Electrical tape provides excellent resistant to abrasion,
moisture, alkalis, acids and corrosion. It provides an additional moisture seal for cable
connectors. It also prevents loosening of connections from vibration or other external stresses
which would eventually allow moisture penetration. The sealed connector is suitable for typical
exposed and buried cable applications.
Get connected with us:
Electrical Insulating PVC tape
Application
• Primary electrical insulation for all wire and cable splices rated
• up to 600v and 105°C.
• Protective jacketing for high voltage cable splices and repairs.
• Harnessing of wire and cables.
PVC Tape Properties
| Physical Properties | Standard Values | Measured Value |
| Tensile strength(N/cm) | ≥15 | 28.6 |
| Tensile strength(N/cm) | ≥15 | 28.6 |
| Elongation at break (%) | ≥125 | 279 |
| Peel strength of steel plate（N/cm) | ≥1.8 | 1.9 |
| Peel strength of steel plate（N/cm) | ≥1.5 | 1.6 |
| Dielectric Strength （KV/mm） | ≥40 | 42 |
| Sunlight ageing，1000h | No chalking, harden, crack | No chalking, harden, crack |
| Flammability | Self-extinguishing | Self-extinguishing |
Features
• Flame retardant.
• Designed with an elastic backing and an aggressive adhesive, to provide a moisture-tight
electrical and mechanical.
• protection with minimum bulk.
• Excellent resistance to abrasion, moisture, alkalis, acids, corrosion, and varying weather
conditions (including
• ultraviolet exposure).
• Designed for continuous performance at temperatures ranging from -18°C (0°F) to 105°C
(220°F)
