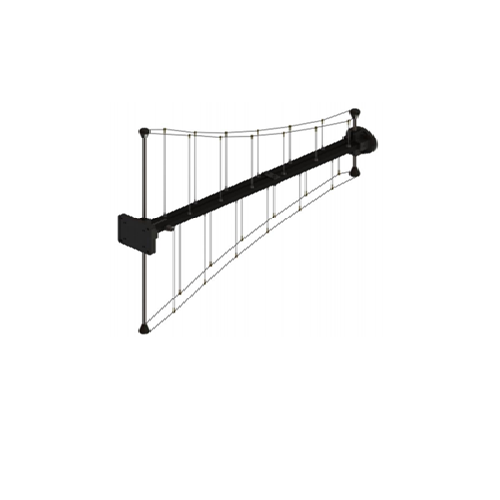

Foldable Wire LPDA Antenna LPDA-A0076

For more detail : Click Here

Electrical Specifications
Frequency range	200 – 500 MHz
VSWR 200-225MHz 225-500MHz	< 3:1 < 2:1
Nominal input impedance	50 Ω
Connector	N-type female
Feed power handling	200 W
Gain	6 dBi typical
E-plane 3 dB beamwidth	60º
H-plane 3 dB beamwidth	100º
Polarization	Linear, vertical or horizontal
Gain	6 dBi typical
Mechanical Specifications
Dimensions	Length: 850 mm incl. mounting Height: 800 mm Width: 150 mm
Packed dimensions	Length: 850 mm Height: 200 mm Width: 200 mm
Mounting method	Bracket attached with U-bolts to mast. Quick removal system
Environmental Specifications
Wind survival	160 km/h
Effective wind area	0.05 sqm
Temperature (operational)	-35 ºC to 71 ºC
Temperature (storage)	-35 ºC to 71 ºC
Exposed materials	Aluminium, stainless steel
