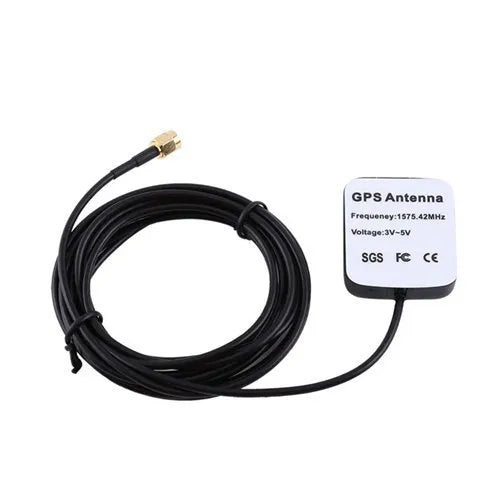

GPS Magnetic Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector
GPS Magnetic Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector
Couldn't load pickup availability
Electrical Specifications
| Frequency Range | 1575.42 +/- 3 |
| Gain |
28 dBi |
| V.S.W.R | ≤ 2.0 |
| Noise Figure | < 1.5 dB |
| Impedance |
50Ω |
| Polarization | Right Hand Circular |
| DC Voltage | 3V~ 5V |
| Lightning Protection | Direct Ground |
| Power Consumption | 15 mA max |
Mechanical Specifications
| Cable | RG174, 3 Mtr or Customized |
| Connector | SMA Male |
| Random Material |
ABS/PP |
| Mounting | Magnet or Adhesive |
| Operating Temperature (®C) | -40°C +/- 85°C |
| Environment Friendly | RoHS Compliant |
| Dimension | 46 x 38 x 13 (mm) |
| Radom Color | Black |
