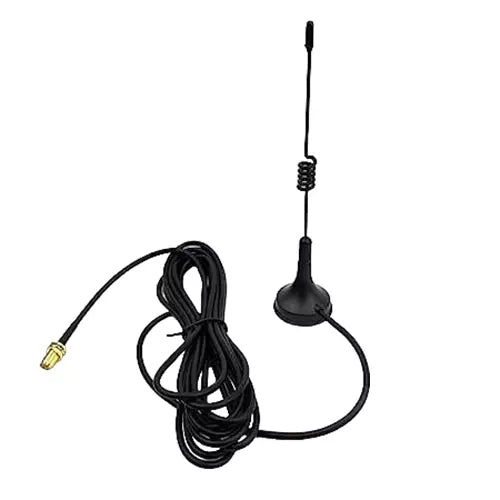

GSM 3dBi Spring Body Magnetic Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector
GSM 3dBi Spring Body Magnetic Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector
Couldn't load pickup availability
Electrical Specifications
| Antenna Range | 698-960/1710-2700 MHz |
| Gain |
3dBi |
| V.S.W.R | 1.5:1 |
| Return Loss | 15 dB |
| Impedance |
50Ω |
| Polarization | Vertical |
| radiation Direction | Omni Directional |
| Lightning Protection | Direct Ground |
| Maximum Input Power | 100W |
| HPBW | H:360°; V: 30°/40 ° |
Mechanical Specifications
| Cable | RG174, 3 Mtr or Customized |
| Connector | SMA(M) Straight |
| Random Mount |
Spring Body Magnetic Base Mount |
| Antenna Length |
205mn |
| Antenna BAse Dia | 60Mn |
| Operating Temperature (®C) | -40°C ~ 85°C |
| Humidity | 5~95% |
| Environment Friendly | RoHS Compliant |
| IP Rating | IP65 |
