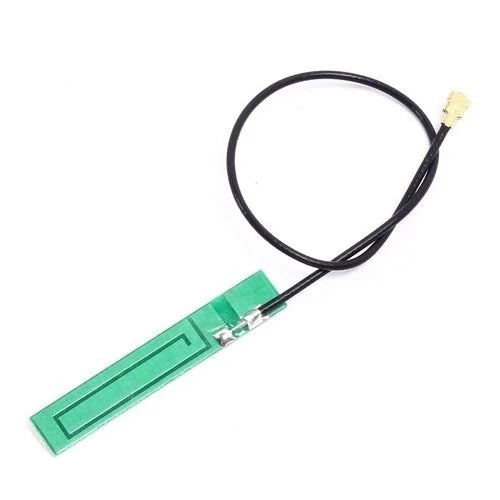

GSM PCB INTERNAL ANTENNA | RoHS Compliant | IPEX Connector
GSM PCB INTERNAL ANTENNA | RoHS Compliant | IPEX Connector
Couldn't load pickup availability
Electrical Specifications
| Center Frequency | 824~960/1710~2170MHz |
| Gain |
2dBi |
| V.S.W.R | <2 |
| Power | 50 Watt |
| Impedance |
50Ω |
| Polarization | Linear |
Mechanical Specifications
| Cable | RF1.13 or others |
| Connector | IPEX or others |
| PCB Size Length | 4cm(40mm) |
| Width | 6mm |
| Inner Material | PCB |
| Operating Temperature (®C) | -40°C +/- 85°C |
| Connector type | IPEX/UFL or customizable |
| Environment Friendly | RoHS Compliant |
| Mounting Method | IPEX Connector |
