SRFS Teleinfra

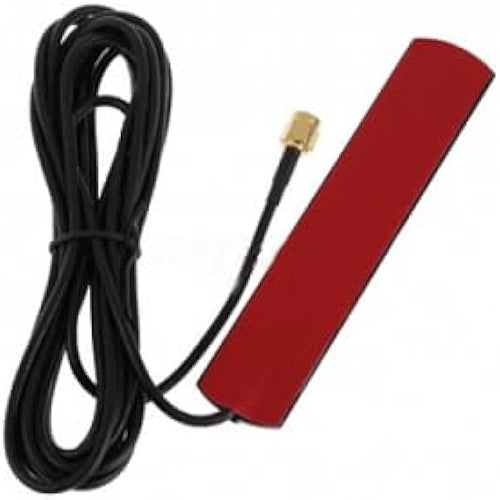

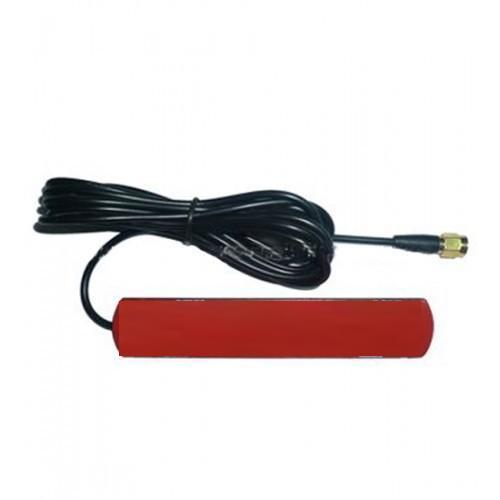

GSM Sticker Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector

GSM Sticker Antenna with RG174 Cable 3 Meter + SMA Male Straight Connector

Electrical Specifications

Frequency Range 698-960/1710-2700 MHz
Gain
3 dBi
V.S.W.R <=2.0
Return Loss -15dB
Impedance
50Ω
Polarization  Vertical
Maximum Input Power 50 W
Lightning Protection Direct Ground
Antenna Radome Material ABS
Radiation Direction Omni Directional



 Mechanical Specifications

Cable  RG174, 3 Mtr or Customized
Connector SMA Male
Antenna Mount
Sticker
Weight 45 gm
Operating Temperature (®C) -40°C ~85°C
Environment Friendly  RoHS Compliant
Antenna Dimension 22 X 115 mm
Humidity 5~95%
IP Rating IP65
