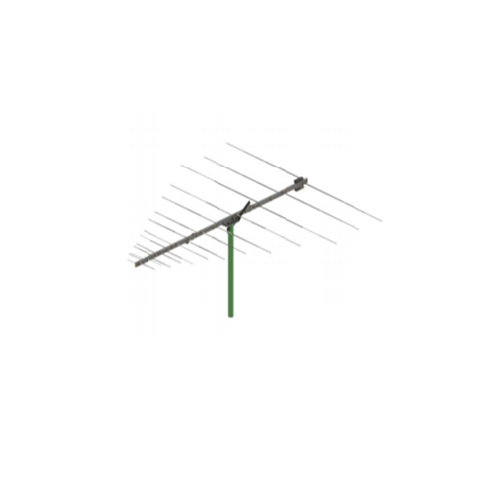

High-Power Compact LPDA Model no.-SRFS- LPDA-A0152
High-Power Compact LPDA Model no.-SRFS- LPDA-A0152
Couldn't load pickup availability
For more detail : Click Here
|
Electrical Specifications |
|
|
Frequency range |
30 – 120 MHz |
|
VSWR |
< 2.5:1 |
|
Nominal input impedance |
50 Ω |
|
Connector |
7/16 female |
|
Feed power handling |
2 kW |
|
MTBF |
50,000 hrs |
|
Gain |
6 dBi typical, 3.8 dBi minimum, 7 dBi maximum |
|
E-plane 3 dB beamwidth |
61° (110 MHz) - 75° (30 MHz) |
|
H-plane 3 dB beamwidth |
100° (110 MHz) – 152° (30 MHz) |
|
Polarization |
Adjustable (vertical and horizontal) |
|
Mechanical Specifications |
|
|
Dimensions |
4100 mm x 3050 mm |
|
Material |
Material Aluminum, stainless steel, fibreglass |
|
Mounting method |
Bracket onto a mast |
|
|
|
|
Environmental Specifications |
|
|
Wind survival |
160 km/h |
|
Temperature (operational) |
- 40 ºC to +55 ºC (no icing) |
