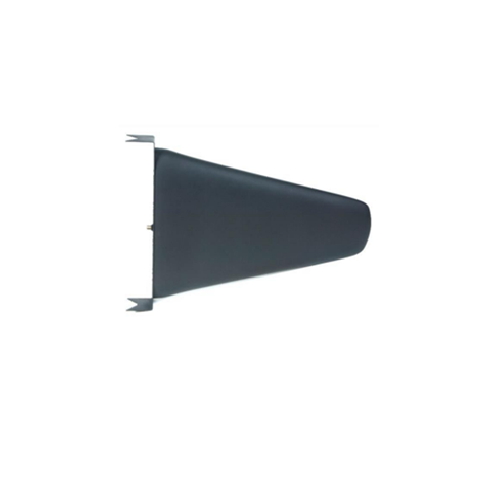

High-Power LPDA Antenna 400-3000 MHz

For more detail : Click Here

Electrical Specifications
Frequency range	400 – 3000 MHz
VSWR	< 2:1
Nominal input impedance	50 Ω DC grounded
Connector	N-type female
Feed power handling	250 W CW
Gain	> 6.5 dBi typical
E-plane 3 dB beamwidth	≥ 65º
H-plane 3 dB beamwidth	≥ 110º
Polarization	Vertical / horizontal
Mechanical Specifications
Dimensions (l x w x h)	< 720 mm x 80 mm x 470 mm
Material	Aluminum, fiberglass
Total mass	< 10 kg incl. mounting bracket
Mounting method	Bracket onto a mast
Packaging	Transportable bag or crate
MTBF	500,000 h
Environmental Specifications
Wind survival	160 km/h
Temperature	-35 ºC to 71 ºC
Effective wind area	0.3 m2
Corrosion	Appropriate anti-corrosion measures
	are taken in the design of antenna for
