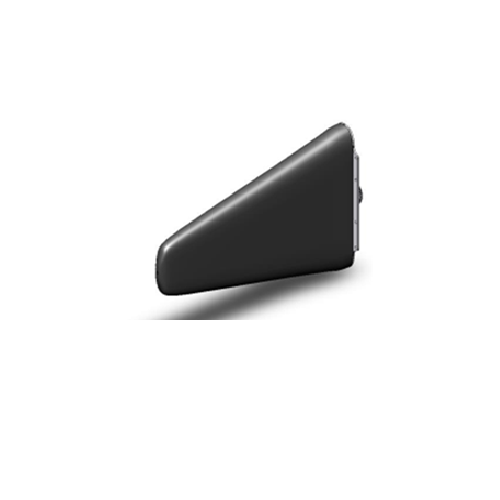

High-Power LPDA Antenna 400-6000 MHz

Electrical Specifications

Frequency range

400 – 6000 MHz

VSWR

< 2.0:1

Nominal input impedance

50 Ω

Connector

N-type female

Feed power handling

150 W @ 6000 MHz

Gain (typical)

8 dBi

E-plane 3 dB beamwidth

50º

H-plane 3 dB beamwidth

60º

Polarization

Linear

Front-to-back ratio

≥ 15 dB

Mechanical Specifications

Dimensions (w x l)

450 mm x 770 mm (incl. bracket)

Material

Aluminum, stainless steel, fiberglass

Total mass

3.7 kg (incl. mounting bracket)

Mounting method

4 x M8 Bolts

MTBF

500,000 h

Environmental Specifications

Wind survival

160 km/h calculated

Operating Temperature

*30ºC to +65º (no icing)

Storage Temperature

-40ºC to +85º

Corrosion

Designed for MIL-STD-810F MIL1250A
