No lining insulation, flame retardant self-adhesive tape, the substrate is ethylene propylene rubber, excellent flame-retardant properties. It is applied to the normal temperature of 90°C, and the temperature is 130°C. Short circuit temperature 250°C. It can be used for the insulation, flame retardant and heat dissipation of the cable terminal and the joint, which has excellent electrical performance and can be applied to 70 KV.
Get connected with us:

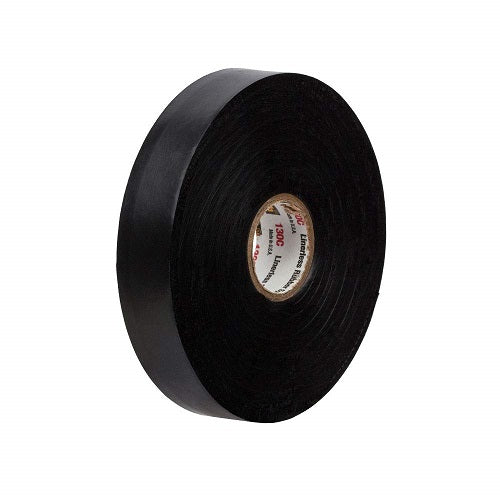

Linerless Rubber Self-Bonding Splicing Tape
Features
• Lineless, self-bonding primary insulating tape rated up to 69 KV. • High thermal conductivity. • Flame retardant. • Excellent physical and electrical properties. • Designed to insulate splices and terminate cables whose overload temperatures can reach 130°C. • Wide range of temperature. • Weather proofing
PVC Tape Properties
Physical Properties
Standard Values
Measured Value
Tensile strength
1.34 Mpa
ASTM D412-06
Elongation at break (%)
1200%
ASTM D412-06
Dielectric Strength (KV/mm)
26.5 KV/mm
ASTM D4325
Dielectric Strength (KV/mm)
26.5 KV/mm
ASTM D4325
Dielectric Strength
25.5 KV/mm
ASTM D4325
Dielectric Strength (23℃*RH96%*96h)
21.2 KV/mm
ASTM D4325
Dielectric constant
2.9 ε
ASTM D4325
Dielectric constant （90℃*24h)
2.8
ASTM D4325
Flame Rating （Vertical)
V-0
UL94
Application
• Primary insulation for splicing all types of solid dielectric insulated cables up to 69 kV. • Up main insulation 35KV solid medium cable stress cone when making application. • Intermediate joint and terminal protection. • Moisture seal for electrical connection. • Bus insulation. • Cable end sealing. • Wire for electric motor.
