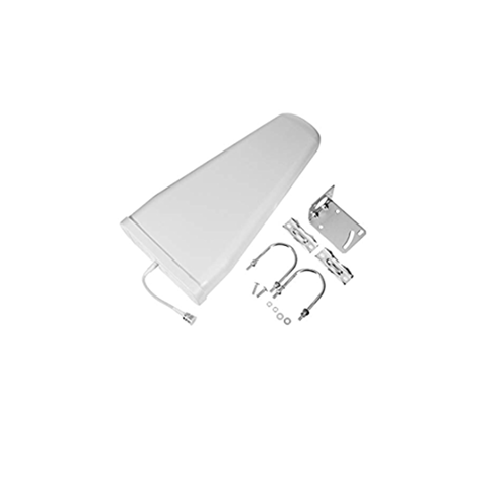

LOG PERIODIC DIPOLE ANTENNA(698-4000 MHz)
LOG PERIODIC DIPOLE ANTENNA(698-4000 MHz)
Couldn't load pickup availability
For more detail : Click Here
|
Electrical Specifications |
|||
|
Frequency |
698-960 |
1710-2700 |
3300-4000 |
|
Gain |
10dBi |
11dBi |
12 dBi |
|
VSWR |
≤2.0 |
≤2.0 |
≤2.0 |
|
Impedance |
50 Ohms |
||
|
Bandwidth(MHz) |
Interbrand |
||
|
Polarization |
Vertical |
||
|
Radiation Pattern |
Directional |
||
|
Front to Back Ratio |
≥15 dB |
||
|
Horizontal Beamwidth |
360° |
||
|
Vertical Beam Width |
80° 52° 38° |
||
|
PIM, 3rd Order, 2x20W |
≤-140 | -150 | -153 dBc |
||
|
Lightening Protection |
Direct Ground |
||
|
Mechanical Specifications |
|||
|
Materials |
Aluminum |
||
|
Connector |
N-Female |
||
|
Dimensions |
405×210×65 mm |
||
|
Packing Size |
450×230×75 mm |
||
|
Weight |
1.1 kg |
||
|
Reflector Material |
Aluminum |
||
|
Radome Material |
ABS |
||
|
Rated Wind Velocity |
210 km/h |
||
|
Operating Temperature |
-40°C to +65 °C |
||
|
Mounting Pole |
Ø38-Ø52 mm |
||
