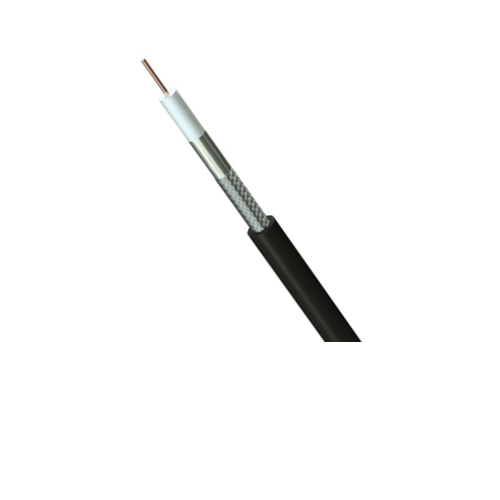

Low Loss Flexible HLF 100 Coaxial Cable
Low Loss Flexible HLF 100 Coaxial Cable
Couldn't load pickup availability
Drop-in replacement for
Times Microwave LMR400, CommScope CNT400, and RG-8/Belden 9913 cables
Features
• High-performance coaxial cable with durable Polyethylene jacket
• Jumper Assemblies in Wireless Communications Systems.
• Short Antenna Feeder runs.
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA,
Mobile Antennas) requiring an easily routed, low loss RF cable.
For more detail : Click Here
Construction
|
Construction |
|
|
Center Conductor
|
Copper Clad Steel
|
|
Dielectric |
Solid Polyethylene (FPE)
|
|
Diameter of Dielectric
|
2.79 mm |
|
Inner Shield |
Unsealed APA Tape
|
|
Outer Sheath Material |
Polyethylene – UV Resistant
|
|
Outer Sheath Color |
Black |
|
Electrical Characteristics |
|
|
Impedance |
50Ω |
|
Cutoff Frequency |
DC – 8 GHz |
|
Velocity of Propagation |
66% |
|
Dielectric Constant |
2.30
|
|
Shielding Effectiveness |
>90 dB |
|
Withstand Voltage |
500 Volts DC |
|
Jacket Spark |
2000 V (rms) |
|
Capacitance |
30.8 pF/ft (78.4 pF/m) |
|
Inductance |
0.077 μH/m |
|
Inner Conductor |
81.0 ohms /1000ft |
|
Outer Conductor |
9.5 ohms /1000ft |
|
Return loss |
≥ 15 dB |
|
Peak Power |
0.6 kW |
|
Physical Characteristics |
|
|
Bend Radius Repeated |
25.4 mm |
|
Tensile Strength |
6.8 kg |
|
Temperature Rating - |
-30®C to +85®C |
|
Weight |
0.014 kg /m |
