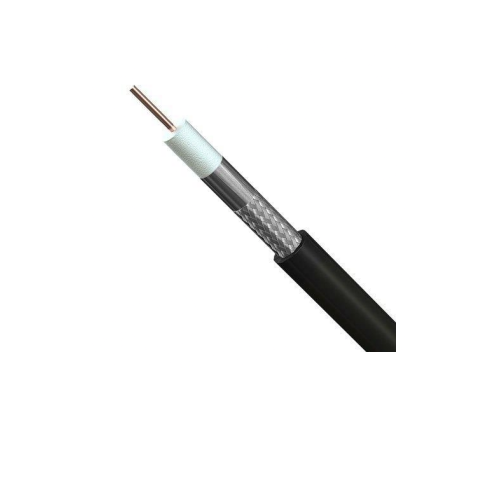

Low Loss Flexible HLF 400 Coaxial Cable Tinned Copper
Low Loss Flexible HLF 400 Coaxial Cable Tinned Copper
Couldn't load pickup availability
Features:
• High-performance coaxial cable with durable Polyethylene jacket
• Jumper Assemblies in Wireless Communications Systems.
• Short Antenna Feeder runs.
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMAX, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable.
For more detail : Click Here
Construction
|
Construction |
|
|
Conductor Material
|
Solid Copper Clad Aluminum |
|
Stranding |
1 / 2.74 mm |
|
Dielectric |
Foamed Polyethylene (FPE) |
|
Diameter of Dielectric
|
7.24 mm |
|
Operation Frequency |
DC – 8 GHz |
|
Inner Shield |
Sealed APA Tape |
|
Outer Shield |
Tinned Copper Braid |
|
Outer Sheath Color |
Black |
|
Electrical Characteristics |
|
|
Impedance |
50Ω |
|
Cutoff Frequency |
16.2 GHz |
|
Velocity of Propagation |
85% |
|
Dielectric Constant |
1.38 |
|
Shielding Effectiveness |
>90 dB |
|
Withstand Voltage |
2.5kV |
|
Jacket Spark |
8.0kV (rms) |
|
Capacitance |
23.9pF/ft (78.4 pF/m) |
|
Inductance |
0.21 μH/m |
|
Conductor Resistance |
≤ 4.6 Ω/Km |
|
Outer Conductor Resistance |
≤ 5.4 Ω/Km |
|
Return loss (30 – 2800 MHz) |
≥ 15 dB |
|
Peak Power |
16.0 kW |
|
Physical Characteristics |
|
|
Overall Diameter |
10.3mm |
|
Min. Bend Radius |
24.5mm |
|
Temperature Rating |
-30®C to +85®C |
|
Weight |
10 kg /km |
|
Frequency Attenuation (MHz) dB/100 ft dB/100m
|
||
|
30 |
0.8 |
2.5 |
|
50 |
1.0 |
3.2 |
|
150 |
1.5 |
4.9 |
|
220 |
1.9 |
6.2 |
|
450 |
2.7 |
8.8 |
|
900 |
3.9 |
12.8 |
|
1500 |
5.1 |
16.7 |
|
1800 |
5.6 |
18.3 |
|
2000 |
5.9 |
19.3 |
|
2500 |
6.7 |
21.9 |
