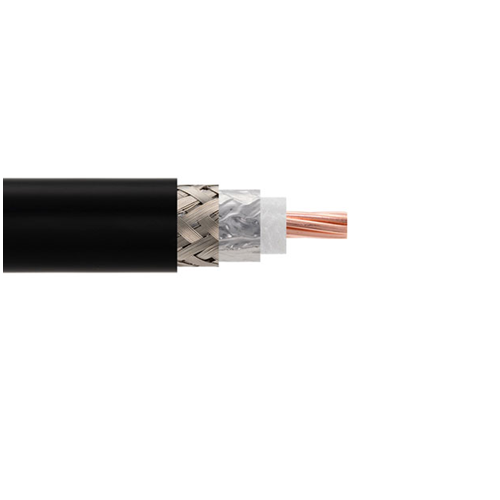

Low Loss Flexible HLF 500 Coaxial Cable
Low Loss Flexible HLF 500 Coaxial Cable
Couldn't load pickup availability
Drop-in replacement for
Times Microwave LMR 500 /CNT 500
Features
• High-performance coaxial cable with durable Polyethylene jacket
• Jumper Assemblies in Wireless Communications Systems.
• Short Antenna Feeder runs.
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable.
For more detail : Click Here
Construction
|
Construction |
|
|
Inner Conductor
|
Solid BCCAI |
|
Outer Conductor |
Aluminum Tape |
|
Dielectric |
Foamed Polyethylene (FPE) |
|
Overall Braid |
Tinned Copper |
|
Operation Frequency |
DC – 8 GHz |
|
Outer Sheath Material |
Polyethylene – UV Resistant |
|
Outer Sheath Color |
Black |
|
Electrical Characteristics |
|
|
Impedance |
50Ω |
|
Cutoff Frequency |
DC – 16.5 GHz |
|
Velocity of Propagation |
82% |
|
Dielectric Constant |
1.56 |
|
Shielding Effectiveness |
>90 dB |
|
Withstand Voltage |
2.5kV |
|
Jacket Spark |
5.0kV (rms) |
|
Capacitance |
23.6 pF/ft (78.4 pF/m) |
|
Inductance |
0.21 μH/m |
|
Conductor Resistance |
≤ 4.6 Ω/Km |
|
Outer Conductor Resistance |
≤ 1.27 Ω/Km |
|
Return loss (30 – 2800 MHz) |
≥ 15 dB |
|
Peak Power |
22 kW |
|
Physical Characteristics |
|
|
Bending Radius (Repeated) |
127 mm |
|
Tensile Strength |
118 kg |
|
Temperature Rating |
-30®C to +85®C |
|
Weight |
0.14 kg /m |
