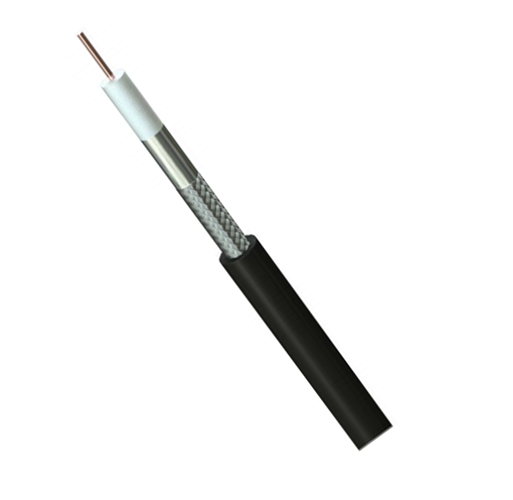

Low Loss Flexible HLF 600 Coaxial Cable
Low Loss Flexible HLF 600 Coaxial Cable
Couldn't load pickup availability
Drop-in replacement for
HLF–600 coaxial cable provides excellent performance for high power HF needs or VHF/UHF applications. Note that it has a stranded center conductor to greatly improve flexibility. This cable combines superior performance with good flexibility.
HLF 600 is equivalent or alternative of LMR 600 /CNT 600
For more detail : Click Here
Construction
|
Construction |
|
|
Conductor Material |
Copper Clad Aluminum |
|
Stranding |
1 / 4.47 mm |
|
Dielectric |
Foamed Polyethylene (FPE) |
|
Diameter of Dielectric |
11.56 mm |
|
Screen Material(1) |
Bonded Aluminum/Polyester/Aluminium Tape (100%) |
|
Screen Material(2) |
Tinned Copper wire Braid (90%) |
|
Outer Sheath Material |
Polyethylene, UV Resistant |
|
Outer Sheath Color |
Black |
|
Electrical Characteristics |
|
|
Impedance |
50Ω |
|
Cutoff Frequency |
16.2 GHz |
|
Velocity of Propagation |
85% |
|
Dielectric Constant |
1.38 |
|
Shielding Effectiveness |
>90 dB |
|
Withstand Voltage |
4.6kV |
|
Jacket Spark |
8.0kV (rms) |
|
Capacitance |
24pF/ft (78.7 pF/m) |
|
Inductance |
0.21 μH/m |
|
Conductor Resistance |
≤ 1.7 Ω/Km |
|
Outer Conductor Resistance |
≤ 5.7 Ω/Km |
|
Return loss (30 – 2800 MHz) |
≥ 15 dB |
|
Peak Power |
40.0 kW |
|
Physical Characteristics |
|
|
Overall Diameter |
15.0 mm |
|
Min. Bend Radius |
38.1 mm |
|
Temperature Rating |
-30®C to +85®C |
|
Weight |
100 kg /km |
|
Frequency Attenuation (MHz) dB/100 ft dB/100m |
||
|
30 |
0.5 |
1.6 |
|
50 |
0.6 |
2.0 |
|
150 |
1.0 |
3.2 |
|
220 |
1.2 |
3.8 |
|
450 |
1.7 |
5.6 |
|
900 |
2.5 |
8.2 |
|
1500 |
3.3 |
10.8 |
|
1800 |
3.7 |
12.0 |
|
2000 |
3.9 |
12.7 |
|
2500 |
4.4 |
14.5 |
