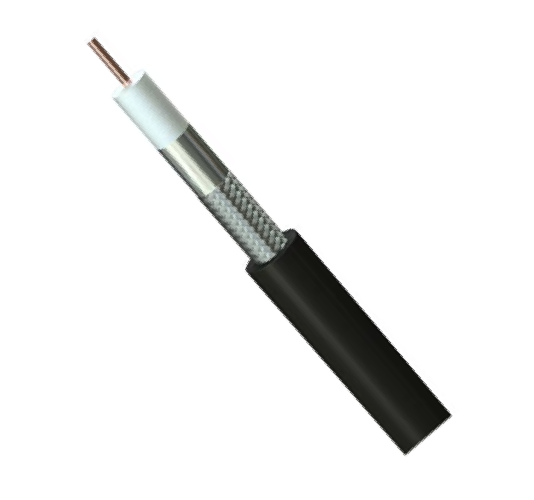

Low Loss Flexible HLF 900 Coaxial Cable
Low Loss Flexible HLF 900 Coaxial Cable
Couldn't load pickup availability
Drop-in replacement for
Times Microwave LMR 900 / CNT 900
Features
• High-performance coaxial cable with durable Polyethylene jacket
• Jumper Assemblies in Wireless Communications Systems.
• Short Antenna Feeder runs.
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMAX, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable.
For more detail : Click Here
|
Construction |
|
|
Inner Conductor
|
BC Tube |
|
Outer Conductor |
Aluminum Tape |
|
Overall Braid |
Tinned Copper |
|
Dielectric |
Foamed Polyethylene (FPE) |
|
Outer Sheath Material |
Polyethylene – UV Resistant |
|
Outer Sheath Color |
Black |
|
Electrical Characteristics |
|
|
Impedance |
50Ω |
|
Cutoff Frequency |
DC –8GHz |
|
Velocity of Propagation |
87% |
|
Dielectric Constant |
1.32 |
|
Shielding Effectiveness |
>90 dB |
|
Withstand Voltage |
5000 VDC |
|
Jacket Spark |
8000V (rms) |
|
Capacitance |
23.4 pF/ft (78.4 pF/m) |
|
Inductance |
0.058 μH/m |
|
Inner Conductor Resistance |
≤ 0.54 Ω/Km |
|
Outer Conductor Resistance |
≤ 0.55 Ω/Km |
|
Return loss (30 – 2800 MHz) |
≥ 15 dB |
|
Peak Power |
62 kW |
|
Physical Characteristics |
|
|
Bending Radius (Repeated) |
128.6 mm |
|
Tensile Strength |
340.5 kg |
|
Temperature Rating |
-30®C to +85®C |
|
Weight |
0.40 kg /m |
