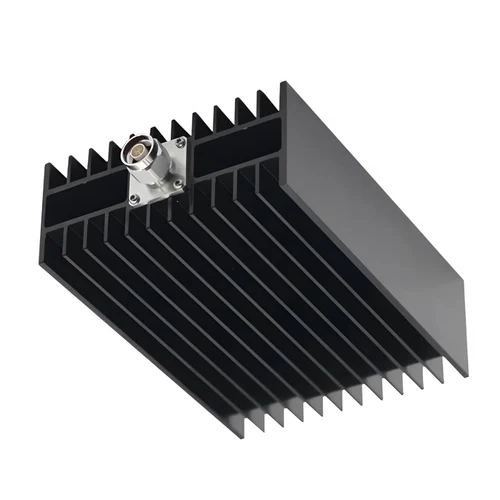

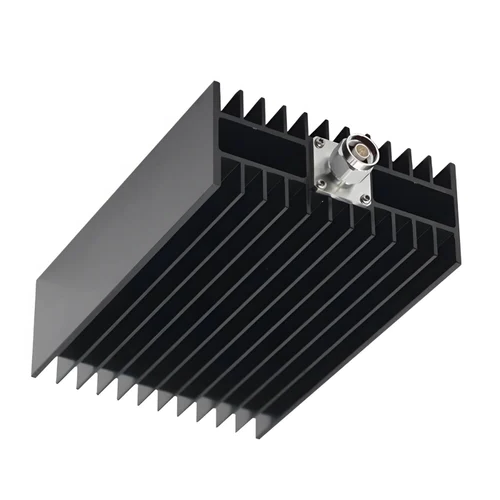

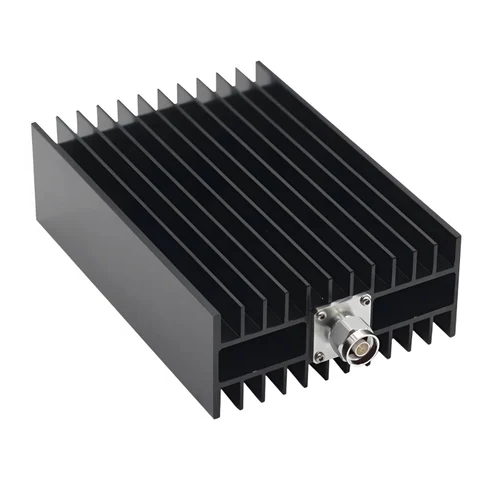

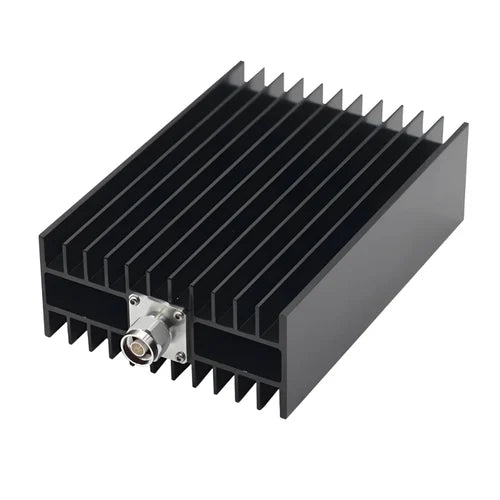

Low PIM 50-Watt N Dummy Termination Load 50ohm N Male Terminator (SRFS-50-06-NM)

Product Features
• Reliable VSWR
• Easy Maintenance
• Wide Broadband Frequency Application

Electrical and Mechanical Specifications

Frequency Range

DC- 6 GHz

VSWR

≤1.15:1

Impedance

50 Ω

Average Power

50 Wat

Peak Power

5µs:1KW

3rd Order IMD

≤-105dBc @2x43dBm

Connector

N Male



MATERIALS

Material

Plating

Connector Body

Brass

Ni/Tri-Metal

Insulator

PTFE

-

Inner Conductor

Phosphor Bronze

Au

Housing

Aluminum

Black Passivation

Net Weight

650 gm

Dimension

120 mm X 100mm X 60 mm



ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

-45℃～+85 ℃

Storage Temperature

-60℃～+120 ℃

Weatherproof Rate

IP66

Relative Humidity

5%-95%

RoHS Compliant

Yes
