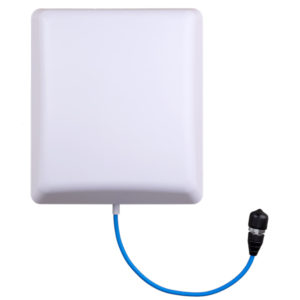

Low PIM Indoor Panel Antenna 698-4000 MHz

Low PIM Indoor Panel Antenna 698-4000 MHz

ELECTRICAL SPECIFICATIONS

Frequency Range, MHz 698-806 806-960 1690-2700 3300-4000
Gain, dBi 5.0 6.0 7.0 8.0
VSWR ≤2.0 ≤2.0 ≤1.7 ≤1.7
Polarization Vertical
PIM, 3rd Order, 2x20W ≤-140 | -150 | -153 dBc
Front to Back Ratio ≥8 dB ≥9 dB ≥14 dB ≥10 dB
Horizontal Beamwidth 92° 90° 65° 73°
Vertical Beamwidth 55° 68° 60° 35°



MECHANICAL SPECIFICATIONS


Gain, dBi 5.0
VSWR ≤2.0
Polarization Polarization
Color Black
PIM, 3rd Order, 2x20W ≤-140 | -150 | -153 dBc
Front to Back Ratio ≥8 dB
Horizontal Beamwidth 92°
Vertical Beamwidth 73°
Input Impedance 50 Ω
